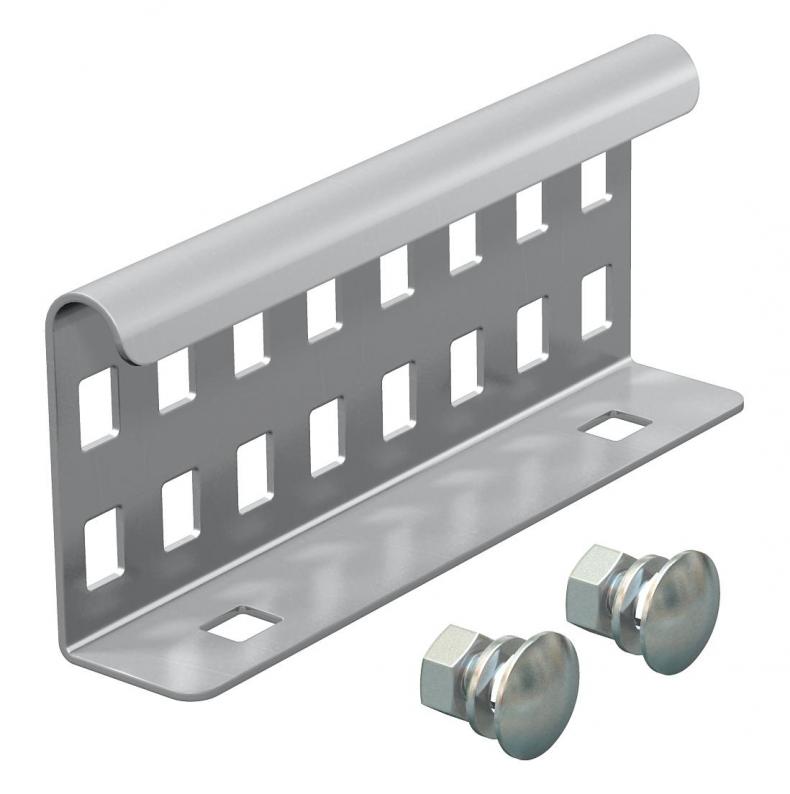

Straight connector A2

Type LVG 60 A2

Item no. 6208846

EAN 4012195065579

Item no. / Type

6208846 / LVG 60 A2

Height

60 mm

Plate thickness

1,5 mm

Surface

Bright, treated

Material

Stainless steel 1.4301

Smallest selling unit: 10 piece

piece

Description

Straight connector as external connector to connect cable ladders and fittings with a side height of 60 mm and continuous rail perforation.

The bolt fastening ensures the continuity of the equipotential bonding.

Paslanmaz çelik, mordanlı	no
Plate thickness	1,5 mm
Kafes kablo kanalı için uygun	no
Kablo merdiveni için uygun	yes
Kablo kanalı için uygun	no
Adjustable connector, horizontal	no
Articulated connector, vertical	no

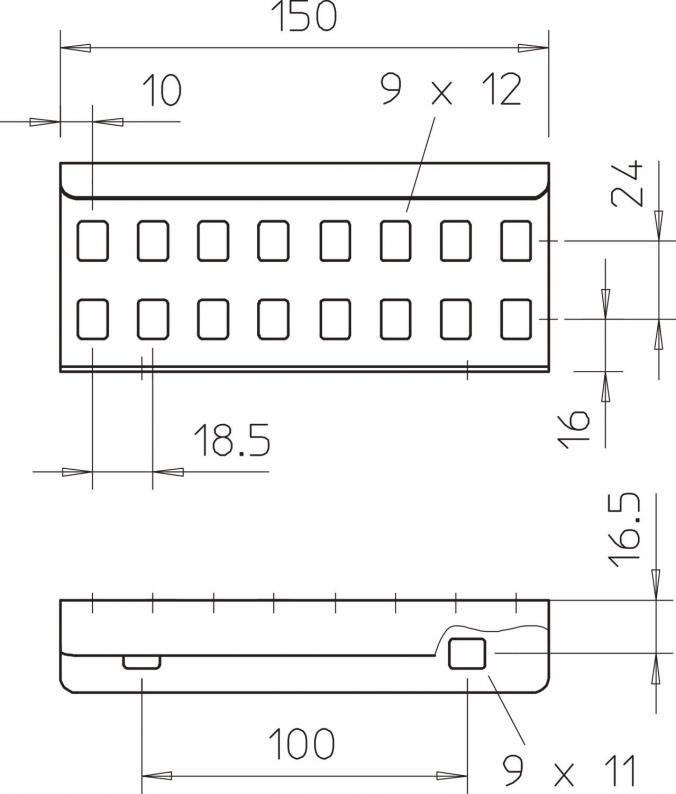

Ölçü	64x150
Suitable for cable tray system height	60 mm
Version for	Straight connector
Connection type	Screw connector
Boyut	64x150
Surface	Bright, treated
Material	Stainless steel 1.4301
Colour	stainless steel
