Straight connector FS
Type MKR SV FS
|Item no. 6066242
|EAN 4012195706847
Item no. / Type
6066242 / MKR SV FS
Width
23 mm
Height
8,5 mm
Colour
zinc
Smallest selling unit: 25 piece
25piece
piece
Description

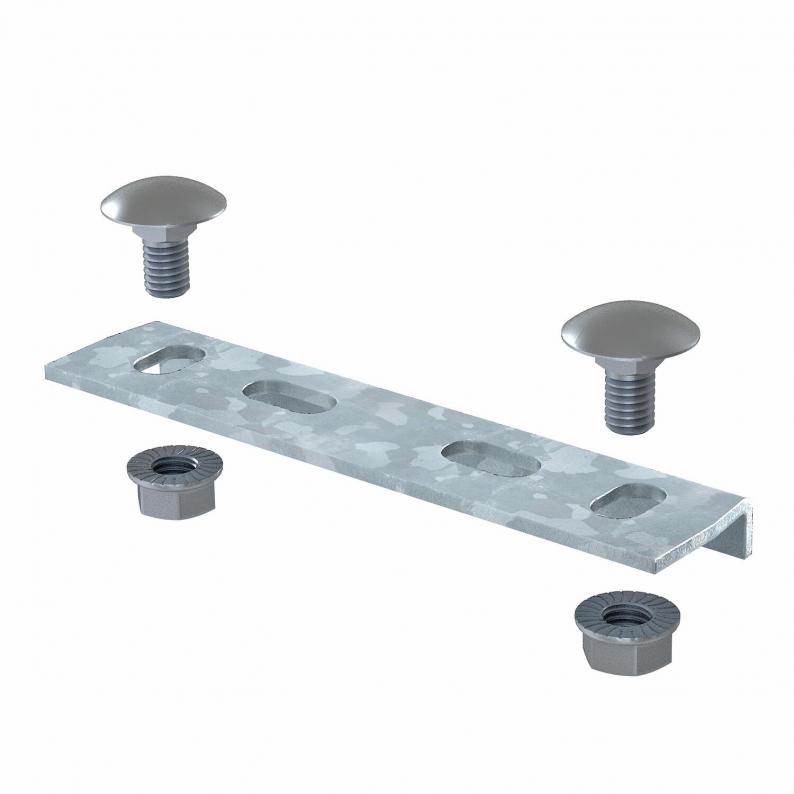

Straight connector for straight connection of cable trays, according to the marine standard, with a side height of 15 mm.
Technical data

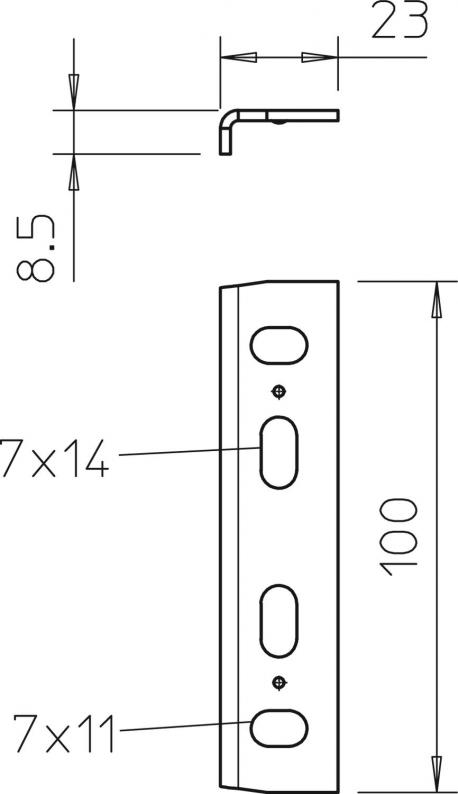

Dimensions
| Length | 100 mm |
|---|---|
| Width | 23 mm |
| Height | 8,5 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Suitable for cable tray system height | 15 mm |
| Version for | Straight connector |
| Connection type | Screw connector |
| Dimension | 16x29x60 |
| Surface | Strip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
0,1428 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1428 kg CO2e / 1 Piece |
|---|
