Straight connector FS
Type RLVK 35 FS
|Item no. 6067085
|EAN 4012196065356
Item no. / Type
6067085 / RLVK 35 FS
Width
3,5 mm
Height
31 mm
Plate thickness
2 mm
Colour
zinc
Smallest selling unit: 10 piece
10piece
piece
Description

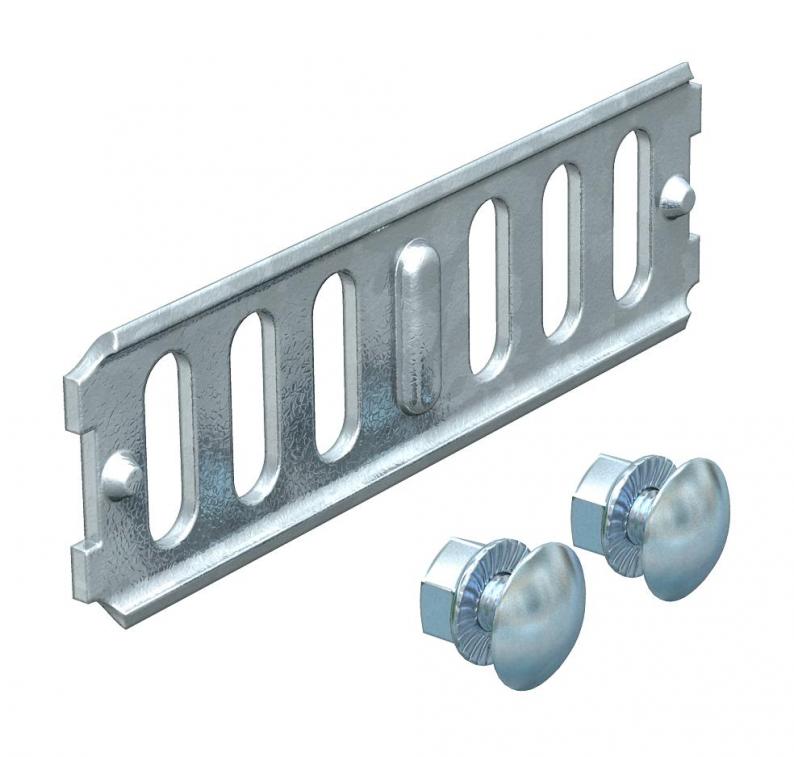

Straight connector for connections of cable trays and fittings with a side height of 35 mm.
Including appropriate fastening material.
Technical data

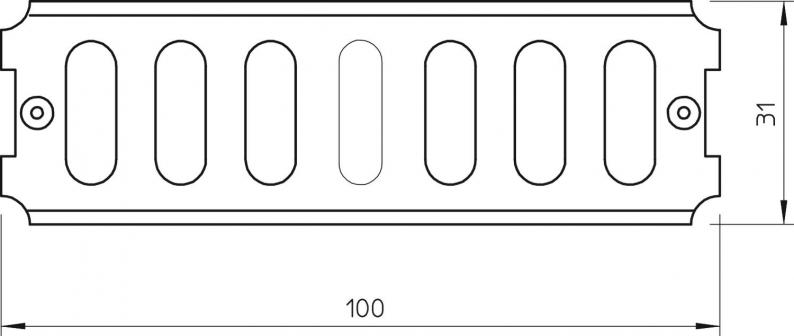

Dimensions
| Length | 100 mm |
|---|---|
| Width | 3,5 mm |
| Height | 31 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Paslanmaz çelik, mordanlı | no |
| Plate thickness | 2 mm |
| Kafes kablo kanalı için uygun | no |
| Kablo merdiveni için uygun | no |
| Kablo kanalı için uygun | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Ölçü | 100 x 31 |
| Suitable for cable tray system height | 35 mm |
| Version for | Straight connector |
| Connection type | Screw connector |
| Boyut | 35x100 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,1507 kg CO2e / 1 Piece |
|---|
