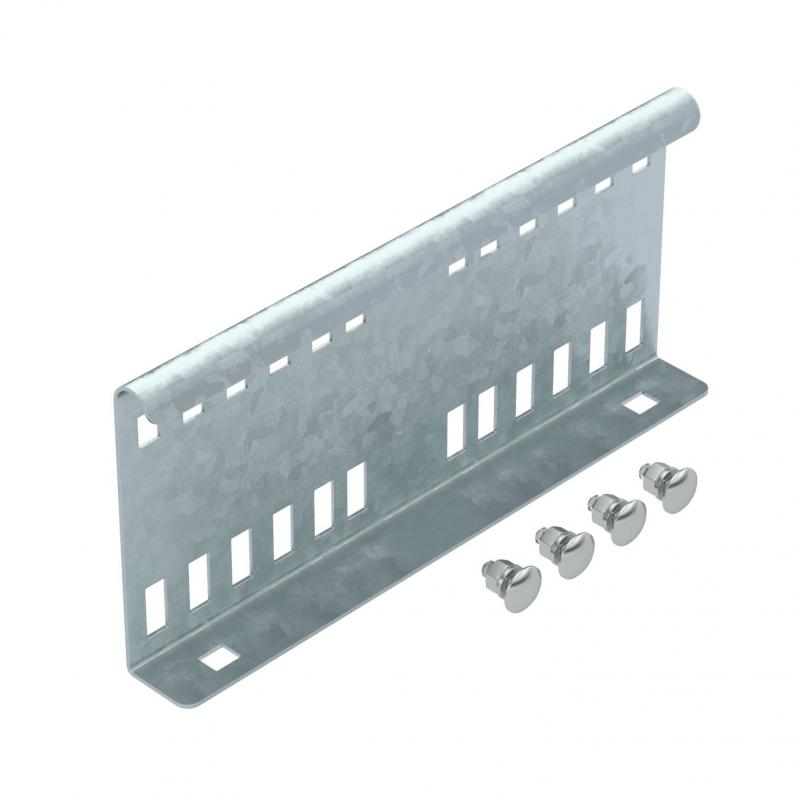

Straight connector FT
Type LVG 110 FT
|Item no. 6216548
|EAN 4012195065685
Item no. / Type
6216548 / LVG 110 FT
Height
110 mm
Plate thickness
1,5 mm
Surface
Hot-dip galvanised
Material
Steel
Smallest selling unit: 10 piece
10piece
piece
Description
Straight connector as external connector to connect cable ladders and fittings with a side height of 110 mm and continuous rail perforation.
The bolt fastening ensures the continuity of the equipotential bonding.
Technical data
Dimensions
| Length | 250 mm |
|---|---|
| Width | 28 mm |
| Height | 110 mm |
Technical data
| Paslanmaz çelik, mordanlı | no |
|---|---|
| Plate thickness | 1,5 mm |
| Kafes kablo kanalı için uygun | no |
| Kablo merdiveni için uygun | yes |
| Kablo kanalı için uygun | no |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Ölçü | 114x250 |
| Suitable for cable tray system height | 110 mm |
| Version for | Straight connector |
| Connection type | Screw connector |
| Boyut | 114x250 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 1,2144 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (1)
Variants
Type
Height
Plate thickness
Surface
Material
Item no.
LVG 110 FT
110
1,5
Hot-dip galvanised
Steel
6216548
LVG 110 FT
Item no.
6216548
Height
110
Plate thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
