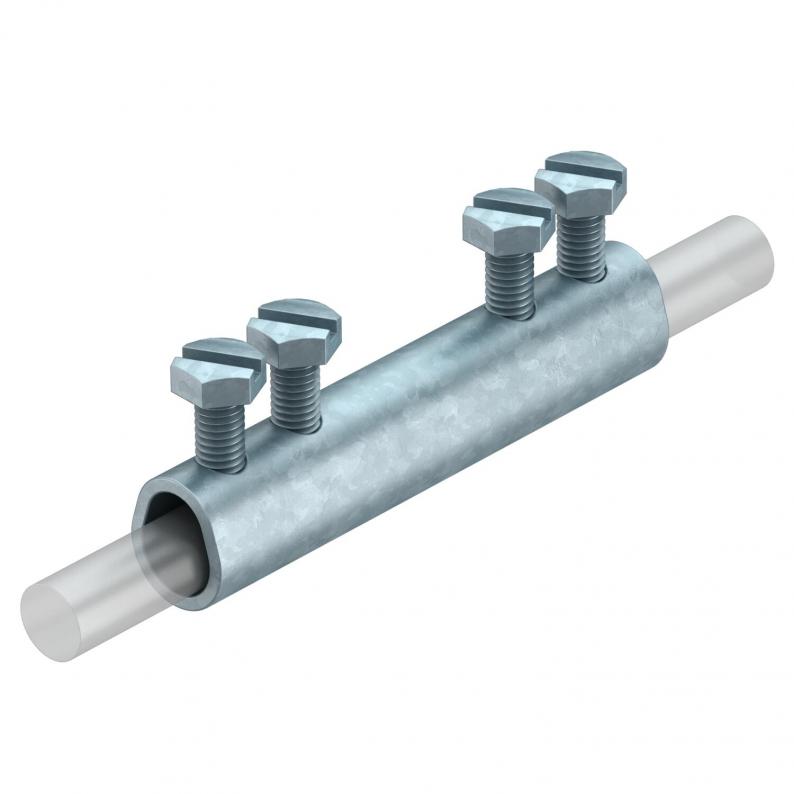

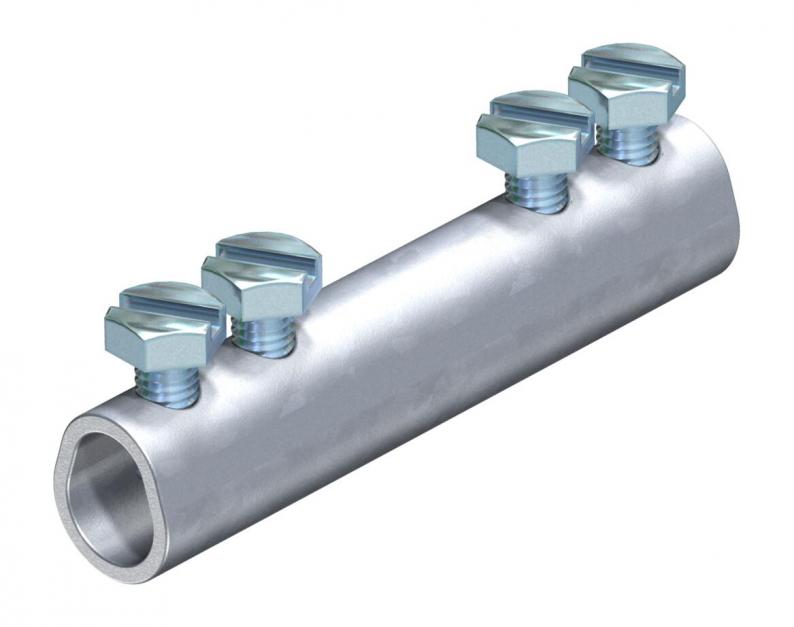

Straight connector Rd 8−10 mm

Type 237 N FT

Item no. 5328209

EAN 4012195453611

Item no. / Type

5328209 / 237 N FT

Uyumluluk

Rd 8-10 mm

Smallest selling unit: 20 piece

piece

Description

• With 4 hexagonal bolts M6 x 10
• Complies with the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)

Ayırma plakası	no
Type of fastening screw	Hexagonal bolt
Type of connector	Connectors
Suitable for connection	Round conductor Rd 8–10 / Rd 8–10
Lightning current carrying capacity	H/100 kA
Round conductor diameter, conductor 1, min.	8 mm
Round conductor diameter, conductor 1, max.	10 mm
Round conductor diameter, conductor 2, min.	8 mm
Round conductor diameter, conductor 2, max.	10 mm
Uyumluluk	Rd 8-10 mm
Boyut	8-10mm
Surface	Hot galvanized
Material	Steel

Packaging without plastic	yes

CO2 ayak izi (GWP) beşikten kapıya	0,1896 kg CO2e / 1 Piece
