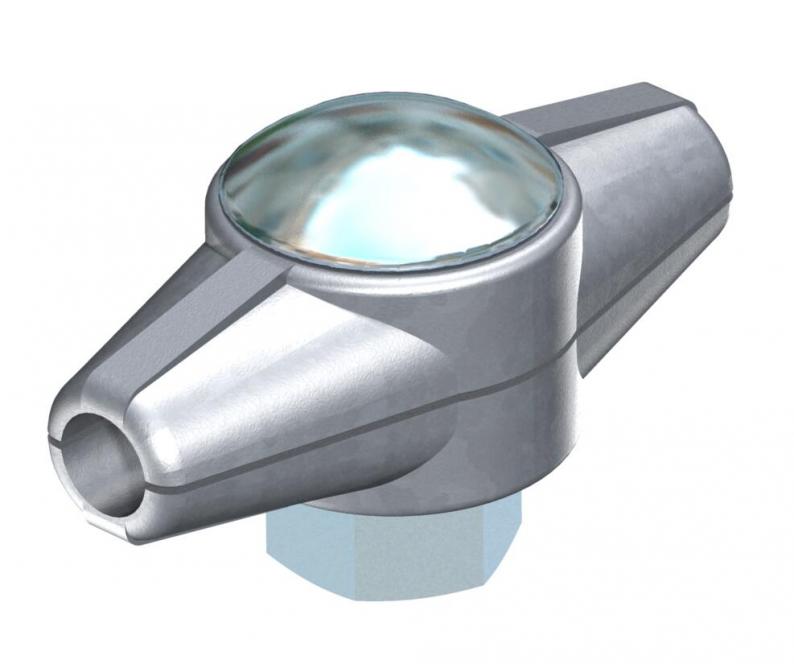

Straight connector Rd 8 mm
Type 239
|Item no. 5329078
|EAN 4012195423195
Item no. / Type
5329078 / 239
Fit
Rd 8 mm
Smallest selling unit: 20 piece
20piece
piece
Description
• With truss-head bolt M10 x 30 and hexagonal nut M10
• Complies with the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
• Complies with the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
Technical data
Technical data
| Intermediate plate | no |
|---|---|
| Type of fastening screw | Gutter bolt |
| Type of connector | Connectors |
| Suitable for connection | Round conductor Rd 8 / Rd 8 |
| Lightning current carrying capacity | N/50 kA |
| Round conductor diameter, conductor 1, min. | 8 mm |
| Round conductor diameter, conductor 1, max. | 8 mm |
| Flat conductor width, conductor 1, min. | 8 mm |
| Flat conductor width, conductor 1, max. | 8 mm |
| Fit | Rd 8 mm |
| Dimension | 8mm |
| Surface | Electrogalvanised |
| Material | Die-cast zinc |
Environmental Data
0,7638 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,7638 kg CO2e / 1 Piece |
|---|
