OBO Turkey
/
Products
/
…
/
Support FS

Support FS

Type LAL 70 FS
|
Item no. 6221009
|
EAN 4012196164417
Show all variants
Item no. / Type
6221009 / LAL 70 FS
Height
45 mm

Smallest selling unit: 20 piece

piece

Description

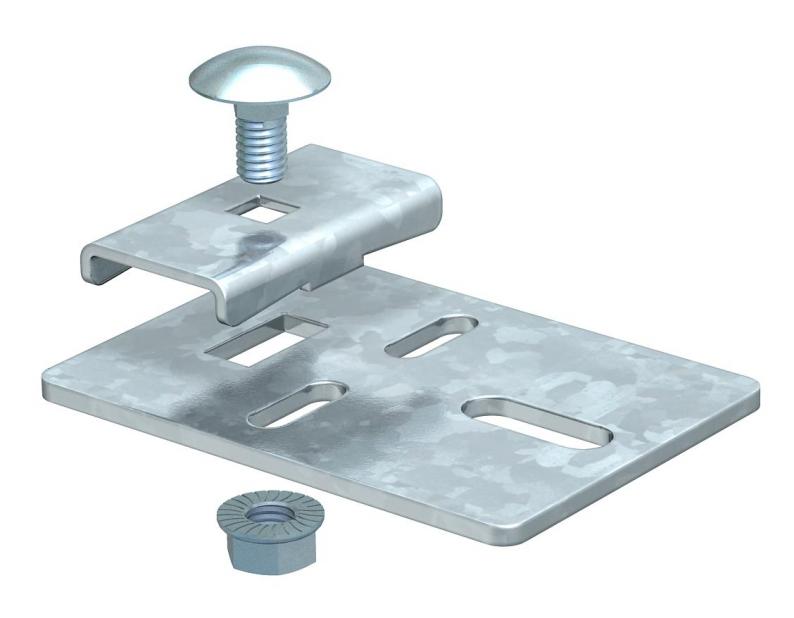

Support for fastening rising or falling cable ladders.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 45 mm
  • Cable ladder, side height 60 mm
  • Cable ladder, side height 110 mm
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Height45 mm

Technical data

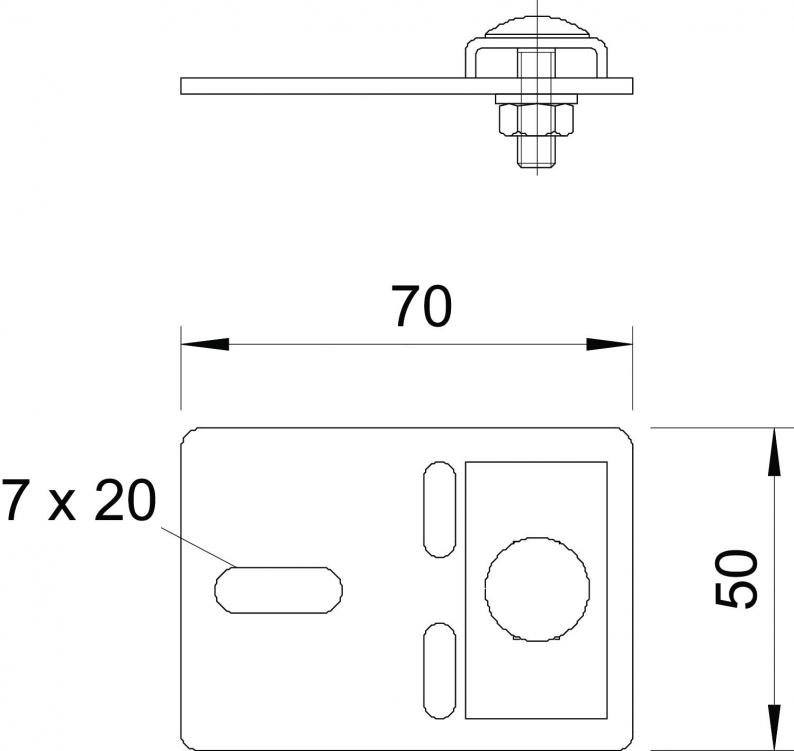

Dimension70x50
SurfaceStrip galvanised
MaterialSteel
Colourzinc

Environmental Data

0,2802 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,2802 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,2802 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

LAL 70 FS
Item no.
6221009
Height
45
