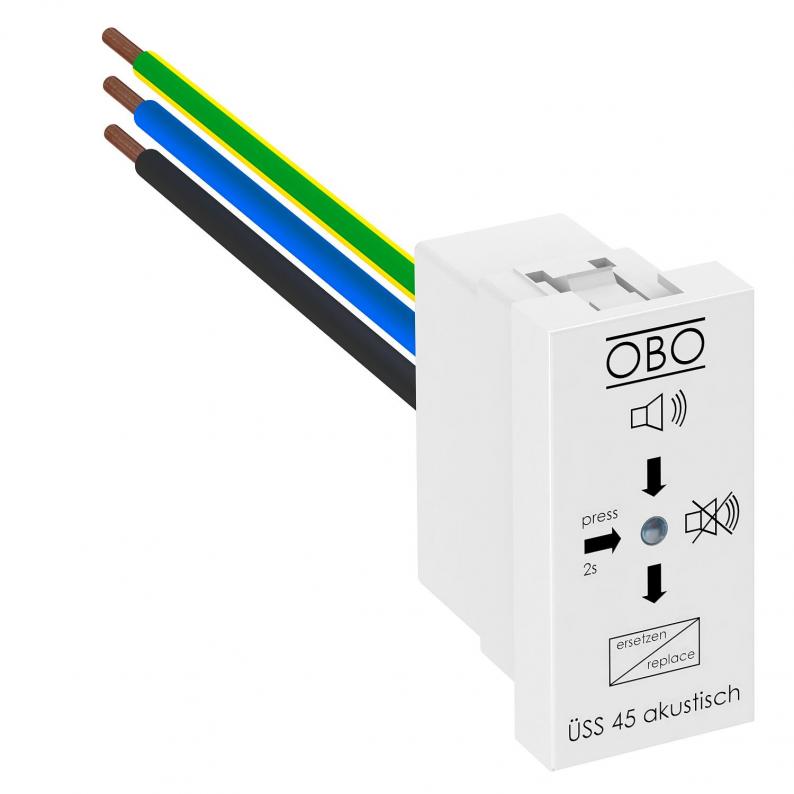

Surge protection module for Modul 45 with audible signalling
Type ÜSS 45-A-RW
|Item no. 6117465
|EAN 4012196117611
Item no. / Type
6117465 / ÜSS 45-A-RW
Koruma sınıfı
IP20
Maximum continuous voltage AC
255 V
Smallest selling unit: 1 piece
1piece
piece
Description
Surge protection/network fine protection, type 3, according to EN 61643-11 for installation in Rapid 45 duct, device installation duct and underfloor systems.
• Version-A with acoustic function display (switchable signal tone)
• Quick and easy mounting

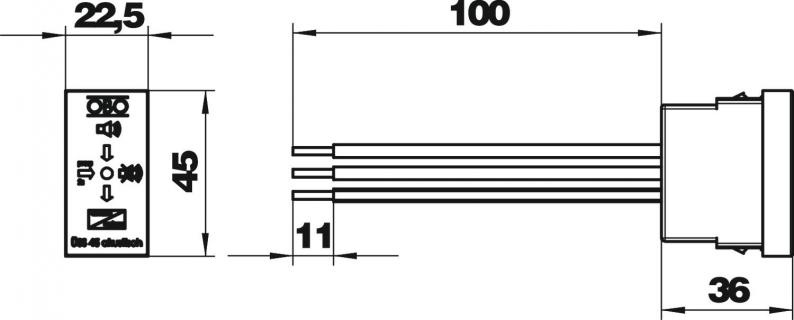

• Low construction width of 22.5 mm
• Colour: Pure white; RAL 9010
Application: The surge protective device secures downstream and nearby sockets.
Surge protection device Type 3 (Class D) to VDE 0675 Parts 6−11 (DIN EN 61643-11)
for installation in Rapid 45 trunking, device installation trunking and underfloor systems.
• Version-A with acoustic function display (switchable signal tone)
• Quick and easy mounting
• Low construction width of 22.5 mm
• Colour: Pure white; RAL 9010
Application: The surge protective device secures downstream and nearby sockets.
Surge protection device Type 3 (Class D) to VDE 0675 Parts 6−11 (DIN EN 61643-11)
for installation in Rapid 45 trunking, device installation trunking and underfloor systems.
Technical data
Technical data
| Ağ formu | Other |
|---|---|
| Söndürmeli | no |
| Cihazda sinyalizasyon | Acoustic |
| Koruma sınıfı | IP20 |
| Remote signalling | no |
| Test class, type 3 | yes |
| Nominal voltage AC (50/60 Hz) | 230 V |
| Koruma seviyesi [L-N] | ≤1500 |
| Maximum continuous voltage AC | 255 V |
| Nominal discharge current (8/20 µs) | 2,5 kA |
| Installation type | Module |
| Max. mains-side overcurrent protection | 16 |
| Version for | Acoustic function display |
| OBO_Nominal load current (input/output terminal) | 16 A |
| Operating temperature, min. | -25 °C |
| Operating temperature, max. | 45 °C |
| SPD to IEC 61643-1 | Class III |
| EN 61643-11 standardına göre talep sınıfı | Type 3 |
| Lightning protection zone LPZ | 2→3 |
| Maximum discharge current (8/20 μs) | 5 kA |
| Devreye girme süresi | <25 ns |
| Maximum back-up fuse | 16 A |
| Kullanılabilir sıcaklık aralığı min. | -25 °C |
| Kullanılabilir sıcaklık aralığı maks. | 45 °C |
| Boyut | 255V |
| Colour | Pure white; RAL 9010 |
Connectivity options
| Arrester surge current (8/20 µs) [total] | 5 kA |
|---|---|
| Conductor cross-section, rigid (single-wire/multiwire), min. | 1,5 mm² |
| Conductor cross-section, rigid (single-wire/multiwire), max. | 1,5 mm² |
| Combined voltage protection level [L-PE] | 1500 kV |
Environmental Data
| Packaging without plastic | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,5421 kg CO2e / 1 Piece |
|---|
