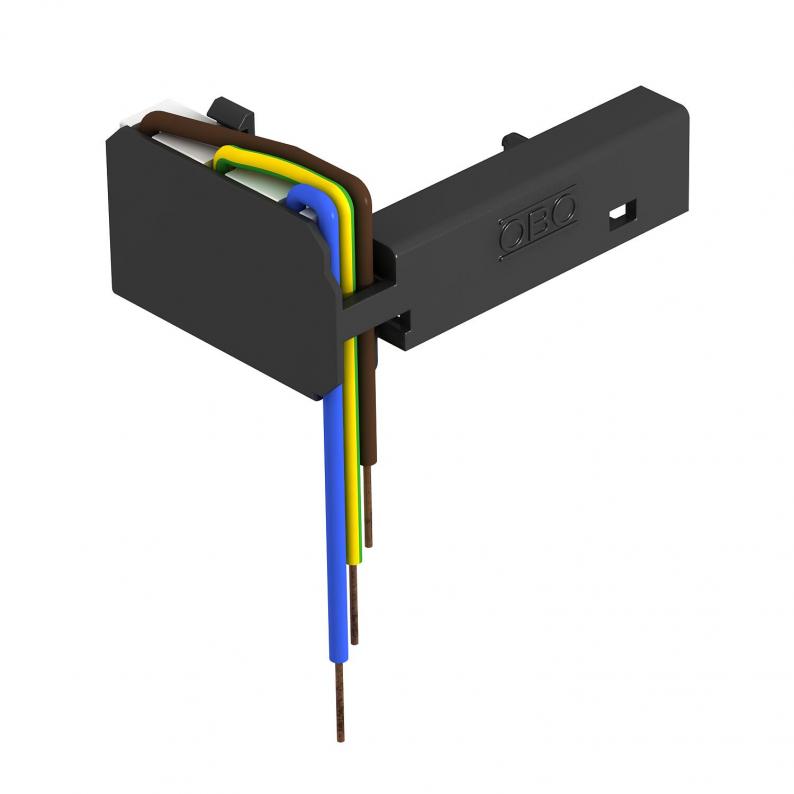

Surge protection module with support for Modul 45connect

Surge protection module with support for Modul 45connect

Type ÜSM-A-4T
|
Item no. 6107801
|
EAN 4012195699767
Show all variants
Item no. / Type
6107801 / ÜSM-A-4T
Maximum continuous voltage AC
255 V

Smallest selling unit: 1 piece

piece

Description

2-pin surge protection module, 16 A/250 V~, with acoustic default display, no network switch-off, for connection to a multiple socket of type Modul 45connect using the supplied support. For installation in universal supports UT3/45 and UT4/45. The surge protection module meets EN 61643-11, type 3, Class III, requirements Class D.
Suitable for installation in underfloor systems in connection with an MT3 / MT4 module support.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.

  • Rusya, GOST The State Committee for Standards
  • 5 yıl garanti
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • Installation electrotechnical expertise
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Technical data

Cihazda sinyalizasyonAcoustic
Maximum continuous voltage AC255 V
EN 61643-11 standardına göre talep sınıfıType 3

Environmental Data

Packaging without plasticyes
CO2 ayak izi (GWP) beşikten kapıya0,0512 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Declarations (3)
Instructions and Aid (3)
Product images (2)
Tender specifications (1)

Variants

ÜSM-A-4T
Item no.
6107801
Maximum continuous voltage AC
255
