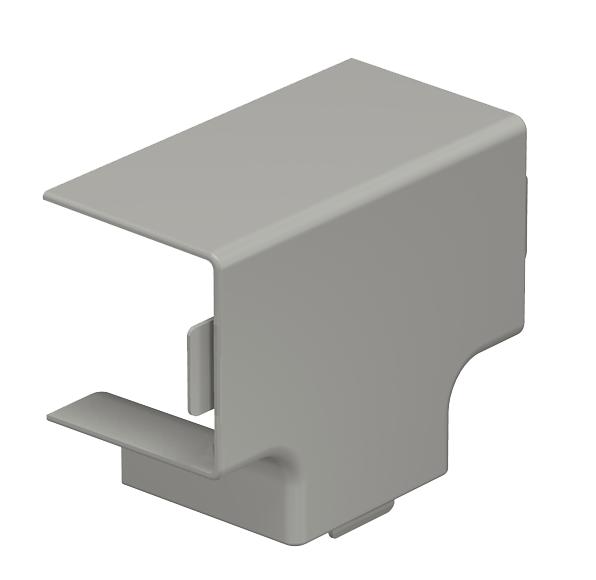

T and intersection cover, for trunking type WDK 40040

T and intersection cover, for trunking type WDK 40040

Type WDK HT40040GR
|
Item no. 6158544
|
EAN 4012196581658
Show all variants
Item no. / Type
Dimension H
Dimension b
Dimension a
Colour

Smallest selling unit: 4 piece

piece

Description

T and intersection cover for changing the direction of the WDK trunking. The fitting is preperforated at the side for the connection of different trunking cross-sections.
  • Alman Elektrik, Elektronik ve Bilgi Teknolojileri Birliği
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length83 mm
Width40 mm
Height40 mm

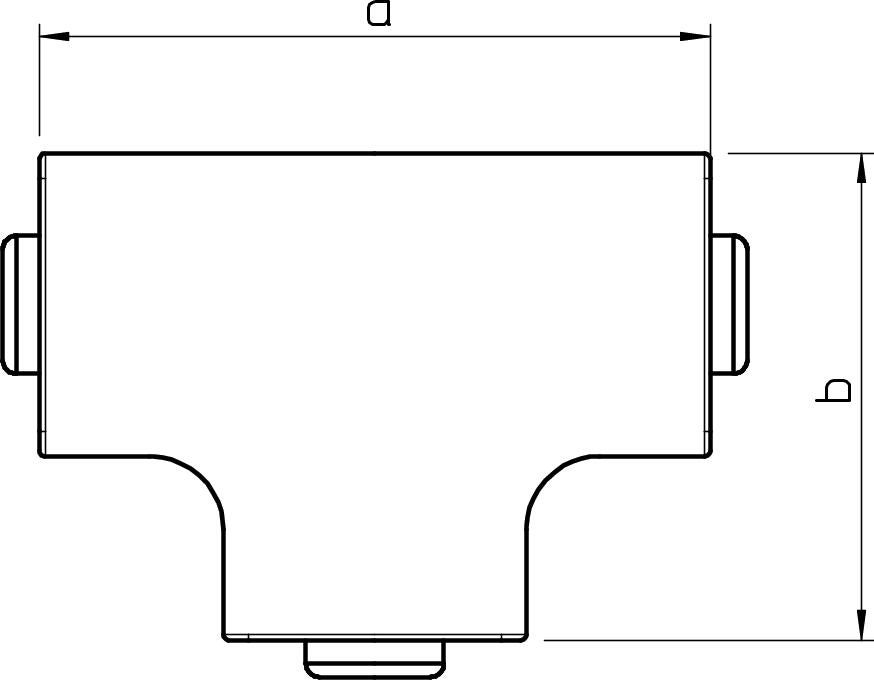

Dimension H40 mm
Dimension b43 mm
Dimension a83 mm

Technical data

Maintain electrical functionsno
Kanal ölçüsü için40 x 40
Koruma sınıfıIP30
Protection rating IK codeIK04
Version forHood fitting
Fastening typeLockable
Kanal derinliği40 mm
Kullanılabilir sıcaklık aralığı min.-5 °C
Kullanılabilir sıcaklık aralığı maks.60 °C
Boyut40x40mm
MaterialPolyvinylchloride
ColourStone grey; RAL 7030
Antibacterial treatmentno

Environmental Data

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 ayak izi (GWP) beşikten kapıya0,0965 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
WDK HT40040GR
Item no.
6158544
Dimension H
40
Dimension b
43
Dimension a
83
Colour
Stone grey; RAL 7030
WDK HT40040CW
Item no.
6161995
Dimension H
40
Dimension b
43
Dimension a
83
Colour
Cream; RAL 9001
WDK HT40040LGR
Item no.
6182917
Dimension H
40
Dimension b
43
Dimension a
83
Colour
Light grey; RAL 7035
WDK HT40040RW
Item no.
6192548
Dimension H
40
Dimension b
43
Dimension a
83
Colour
Pure white; RAL 9010
