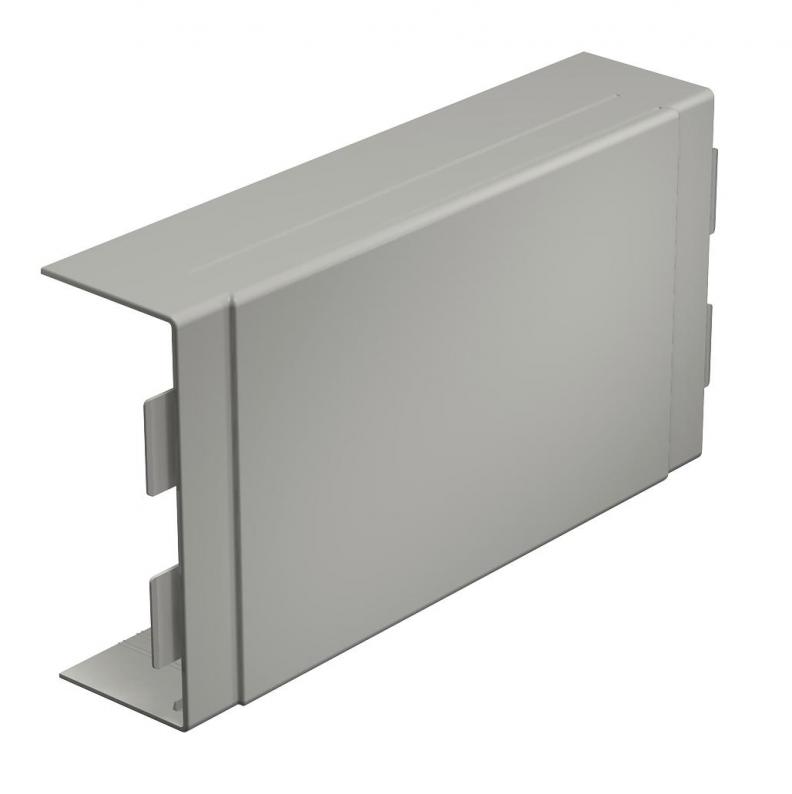

T and intersection cover, for trunking type WDK 60150

T and intersection cover, for trunking type WDK 60150

Type WDK HK60150GR
|
Item no. 6024769
|
EAN 4012196638659
Show all variants
Item no. / Type
Dimension H
Dimension b
Dimension a
Colour

Smallest selling unit: 2 piece

piece

Description

T and intersection cover for changing the direction of the WDK trunking. The fitting is preperforated at the side for the connection of different trunking cross-sections.
  • Alman Elektrik, Elektronik ve Bilgi Teknolojileri Birliği
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length291 mm
Width150 mm
Height60 mm
Dimension H150 mm
Dimension b155 mm
Dimension a291 mm

Technical data

Maintain electrical functionsno
Kanal ölçüsü için60 x 150
Koruma sınıfıIP30
Protection rating IK codeIK04
Version forHood fitting
Fastening typeLockable
Kullanılabilir sıcaklık aralığı min.-5 °C
Kullanılabilir sıcaklık aralığı maks.60 °C
Boyut60x150mm
MaterialPolyvinylchloride
ColourStone grey; RAL 7030
Antibacterial treatmentno

Environmental Data

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 ayak izi (GWP) beşikten kapıya0,5437 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
WDK HK60150GR
Item no.
6024769
Dimension H
150
Dimension b
155
Dimension a
291
Colour
Stone grey; RAL 7030
WDK HK60150CW
Item no.
6162274
Dimension H
150
Dimension b
155
Dimension a
291
Colour
Cream; RAL 9001
WDK HK60150LGR
Item no.
6183050
Dimension H
150
Dimension b
155
Dimension a
291
Colour
Light grey; RAL 7035
WDK HK60150RW
Item no.
6192653
Dimension H
150
Dimension b
155
Dimension a
291
Colour
Pure white; RAL 9010
