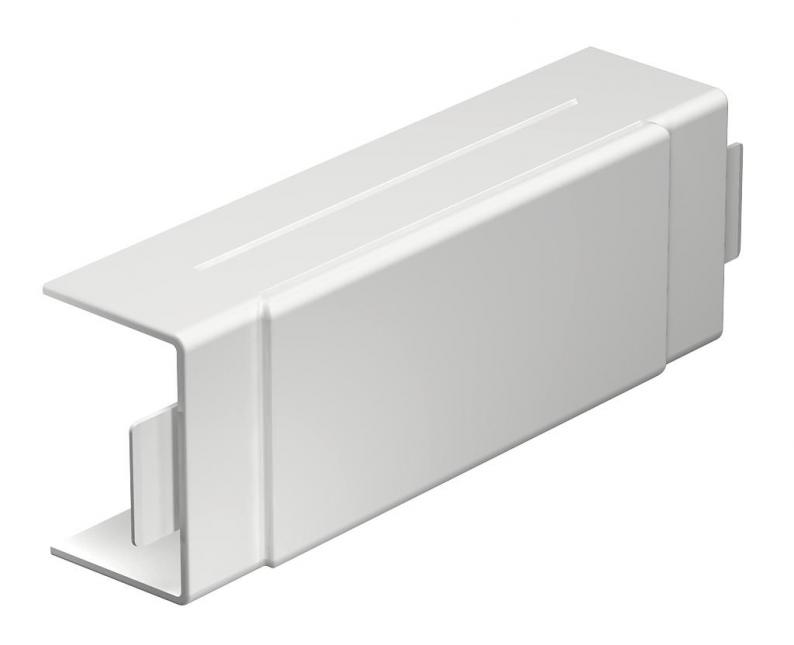

T and intersection cover, for trunking type WDKH 40060

T and intersection cover, for trunking type WDKH 40060

Type WDKH-T40060RW
|
Item no. 6175702
|
EAN 4012195814177
Show all variants
Item no. / Type

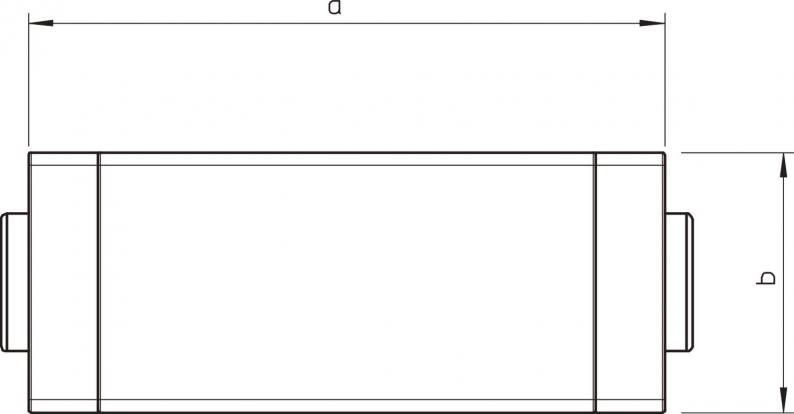

Dimension b
Dimension a
Colour

Smallest selling unit: 2 piece

piece

Description

T and intersection cover for changing the direction of the halogen-free WDKH trunking. The fitting is preperforated at the side for the connection of different trunking cross-sections.
  • Alman Elektrik, Elektronik ve Bilgi Teknolojileri Birliği
  • Halojen içermez; Klor, flüor ve brom içermez
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length190 mm
Width65 mm
Height40 mm
Dimension b66 mm
Dimension a190 mm

Technical data

Maintain electrical functionsno
Kanal ölçüsü için40x60
Halojen İçermezyes
Koruyucu folyono
Koruma sınıfıIP30
Protection rating IK codeIK07.
Version forHood fitting
Fastening typeLockable
Kanal derinliği40 mm
Kanal yüksekliği min.60 mm
Kullanılabilir sıcaklık aralığı min.-5 °C
Kullanılabilir sıcaklık aralığı maks.90 °C
Boyut40x60mm
MaterialPolycarbonate/Acrylnitrile-butadiene-styrene
ColourPure white; RAL 9010
Antibacterial treatmentno

Environmental Data

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 ayak izi (GWP) beşikten kapıya0,5775 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
WDKH-T40060RW
Item no.
6175702
Dimension b
66
Dimension a
190
Colour
Pure white; RAL 9010
WDKH-T40060LGR
Item no.
6176080
Dimension b
66
Dimension a
190
Colour
Light grey; RAL 7035
