T branch piece 160 FT
Type WLT 1620 FT
|Item no. 6229727
|EAN 4012196172696
Item no. / Type
Width
Yan parça kalınlığı
Smallest selling unit: 1 piece
1piece
piece
Description

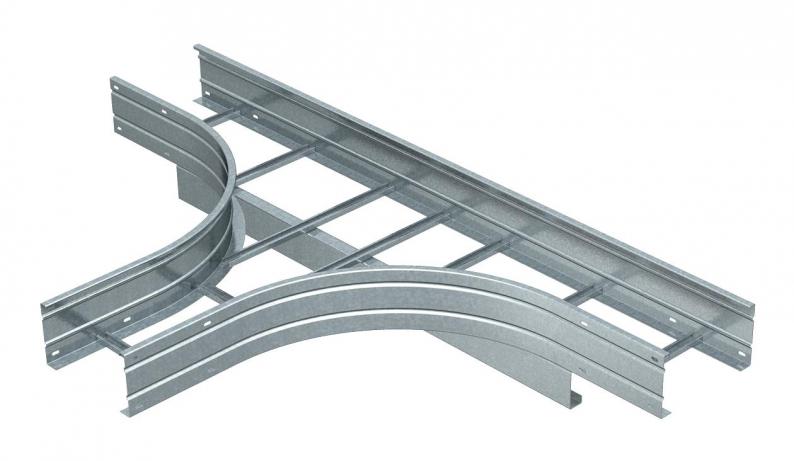

Horizontal T branch piece, for all wide span cable ladders of 160 mm side height.
For further stabilisation, additional supports should be planned for the area of the fittings.
Technical data

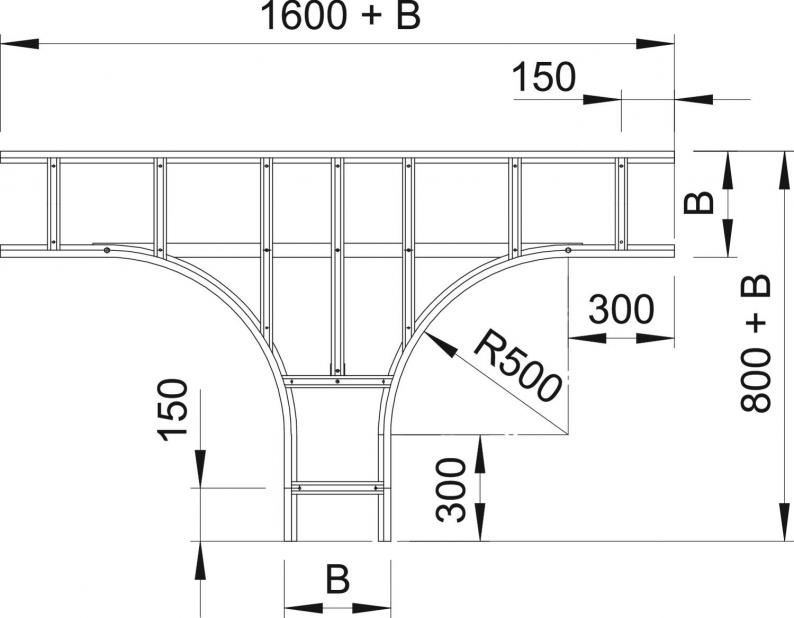

Dimensions
| Width | 200 mm |
|---|---|
| Height | 160 mm |
| Dimension B | 200 mm |
| Dimension R | 500 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Wide-span version | yes |
| Paslanmaz çelik, mordanlı | no |
| Version of the rungs | Profile unperforated |
| Side rail version | Flat profile |
| Yan parça kalınlığı | 2 mm |
| Boyut | 160x200 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 65,6899 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Width
Yan parça kalınlığı
Item no.
WLT 1620 FT
200
2
6229727
WLT 1630 FT
300
2
6229735
WLT 1640 FT
400
2
6229743
WLT 1650 FT
500
2
6229751
WLT 1660 FT
600
2
6229778
