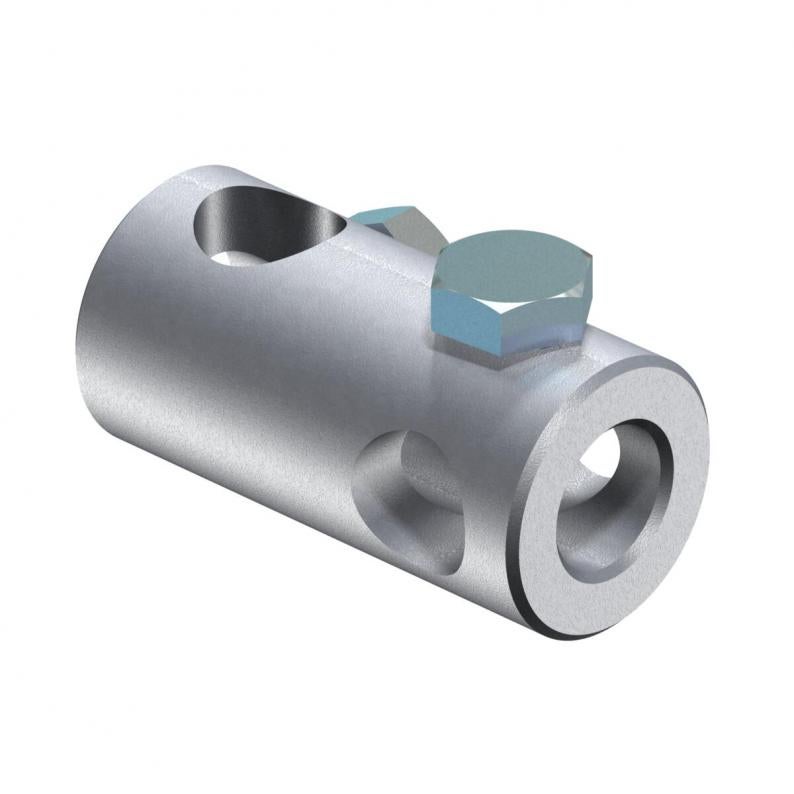

T connector
Type 101 IT-16
|Item no. 5408158
|EAN 4012195613237
Item no. / Type
Dimension L
Dimension d Ø
Dimension d min.
Smallest selling unit: 10 piece
10piece
piece
Description
• T connector for installation of insulating rods
• With M10 bolts
• With M10 bolts
Technical data
Dimensions
| Length | 60 mm |
|---|---|
| Dimension L | 60 mm |
| Dimension d Ø | 16 mm |
| Dimension d min. | 30 mm |
Technical data
| Connection | Round conductor |
|---|---|
| Dimension | 16mm |
| Material | Aluminium |
Environmental Data
1,3935 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,3935 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 1,3935 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
Downloads
0 selected
Data sheet (1)
Declarations (2)
Product images (3)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Dimension L
Dimension d Ø
Dimension d min.
Item no.
101 IT
65
20
40
5408156
101 IT-16
60
16
30
5408158
Dimension L
Dimension d Ø
Dimension d min.
101 IT
Item no.
5408156
Dimension L
65
Dimension d Ø
20
Dimension d min.
40
101 IT-16
Item no.
5408158
Dimension L
60
Dimension d Ø
16
Dimension d min.
30
