T piece 60 FS
Type LT 620 R3 FS
|Item no. 6225210
|EAN 4012196444090
Item no. / Type
Width
Yan parça kalınlığı
Smallest selling unit: 1 piece
1piece
piece
Description

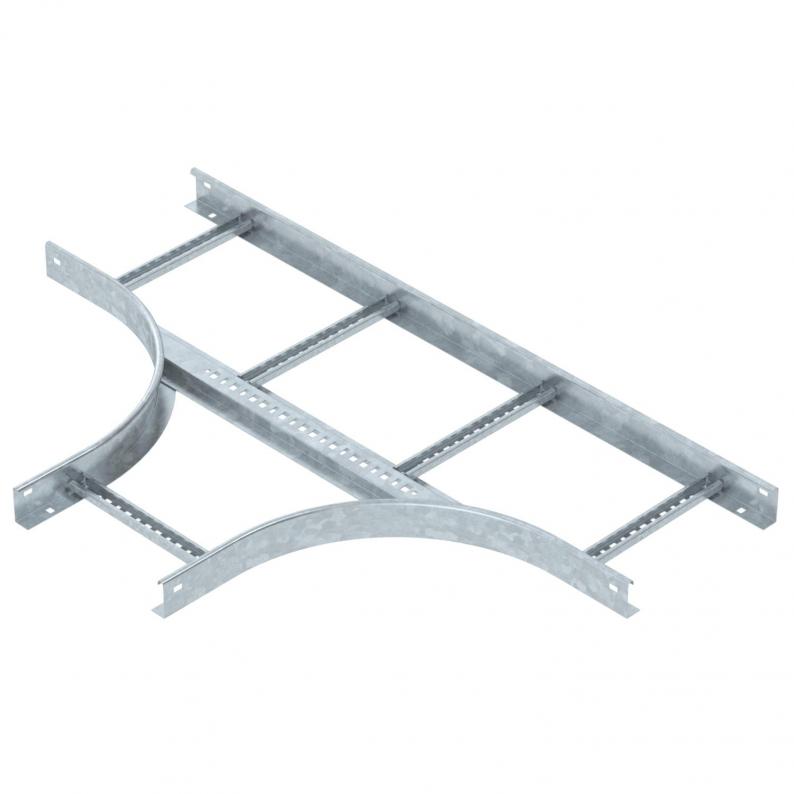

T piece, horizontal, with welded rung for all cable ladder types of 60 mm side height.
Connectors should be ordered separately and in the appropriate quantity.
Technical data
Dimensions
| Width | 200 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 200 mm |
| Dimension R | 300 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Without connectors |
| Wide-span version | no |
| Paslanmaz çelik, mordanlı | no |
| Version of the rungs | Profile unperforated |
| Side rail version | Flat profile |
| Type | Exit symmetrical |
| Yan parça kalınlığı | 1,5 mm |
| Boyut | 60x200 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 13,3745 kg CO2e / 1 Piece |
|---|
Accessories
Mounting accessories
Article
Type
Item no.
Amount
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Width
Yan parça kalınlığı
Item no.
LT 620 R3 FS
200
1,5
6225210
LT 630 R3 FS
300
1,5
6225212
LT 640 R3 FS
400
1,5
6225214
LT 650 R3 FS
500
1,5
6225216
LT 660 R3 FS
600
1,5
6225218
Width
LT 620 R3 FS
Item no.
6225210
Width
200
Yan parça kalınlığı
1,5
LT 630 R3 FS
Item no.
6225212
Width
300
Yan parça kalınlığı
1,5
LT 640 R3 FS
Item no.
6225214
Width
400
Yan parça kalınlığı
1,5
LT 650 R3 FS
Item no.
6225216
Width
500
Yan parça kalınlığı
1,5
LT 660 R3 FS
Item no.
6225218
Width
600
Yan parça kalınlığı
1,5
