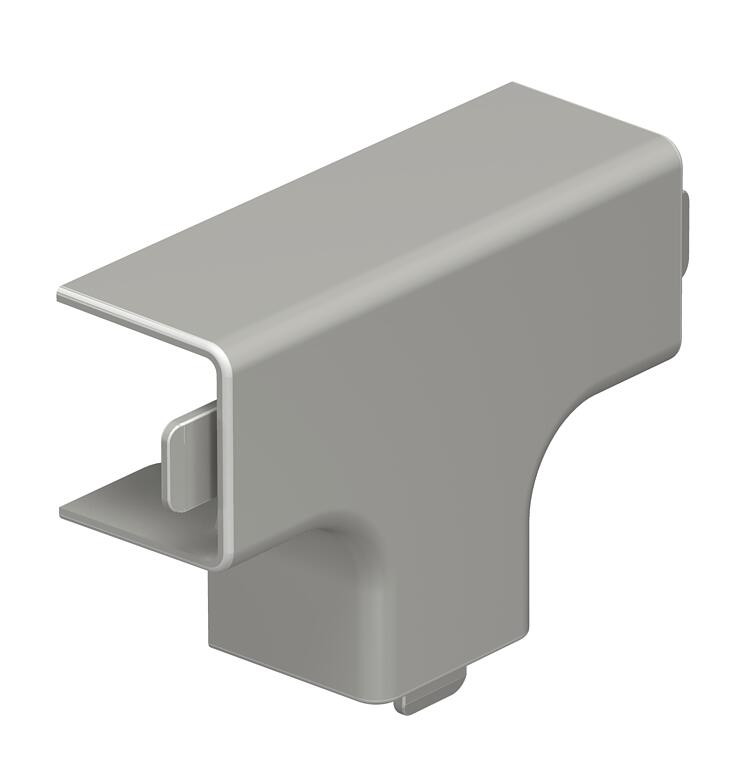

T piece cover, for trunking type WDK 25040
Type WDK HT25040GR
|Item no. 6158501
|EAN 4012196581115
Item no. / Type
Dimension H
Dimension b
Dimension a
Colour
Smallest selling unit: 4 piece
4piece
piece
Description
T piece cover for changing the direction of the WDK trunking.
Technical data
Dimensions
| Length | 83 mm |
|---|---|
| Width | 40 mm |
| Height | 25 mm |

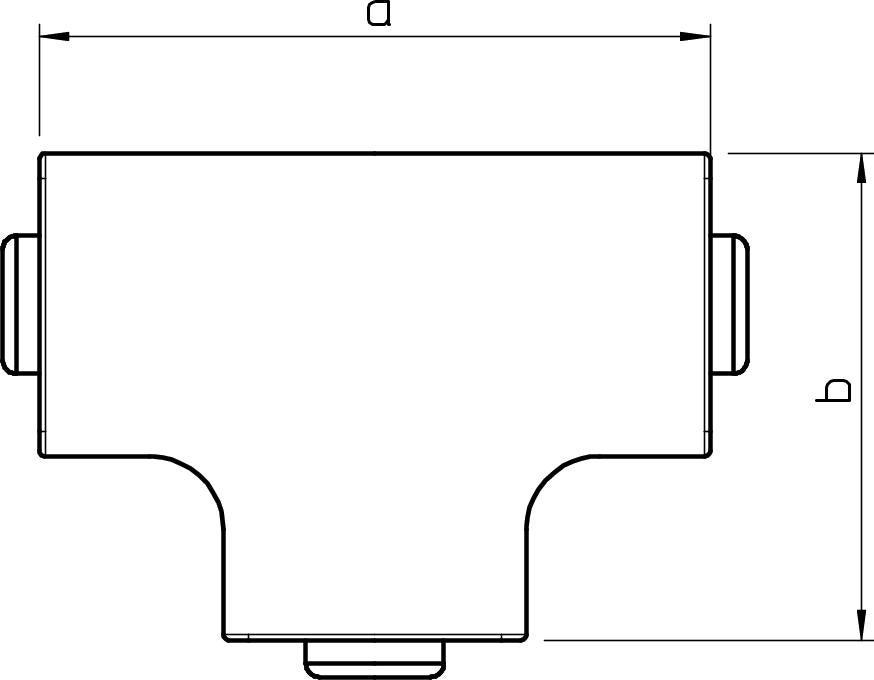

| Dimension H | 40 mm |
| Dimension b | 63 mm |
| Dimension a | 83 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Kanal ölçüsü için | 25 x 40 |
| Halojen İçermez | no |
| Koruyucu folyo | no |
| Koruma sınıfı | IP30 |
| Protection rating IK code | IK04 |
| Version for | Hood fitting |
| Fastening type | Lockable |
| Kanal derinliği | 25 mm |
| Kullanılabilir sıcaklık aralığı min. | -5 °C |
| Kullanılabilir sıcaklık aralığı maks. | 60 °C |
| Boyut | 25x40mm |
| Material | Polyvinylchloride |
| Colour | Stone grey; RAL 7030 |
| Antibacterial treatment | no |
Environmental Data
| Packaging without plastic | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,099 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (2)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Dimension H
Dimension b
Dimension a
Colour
Item no.
WDK HT25040GR
40
63
83
Stone grey; RAL 7030
6158501
WDK HT25040CW
40
63
83
Cream; RAL 9001
6161952
WDK HT25040RW
40
63
83
Pure white; RAL 9010
6192491
Colour
WDK HT25040GR
Item no.
6158501
Dimension H
40
Dimension b
63
Dimension a
83
Colour
Stone grey; RAL 7030
WDK HT25040CW
Item no.
6161952
Dimension H
40
Dimension b
63
Dimension a
83
Colour
Cream; RAL 9001
WDK HT25040RW
Item no.
6192491
Dimension H
40
Dimension b
63
Dimension a
83
Colour
Pure white; RAL 9010
