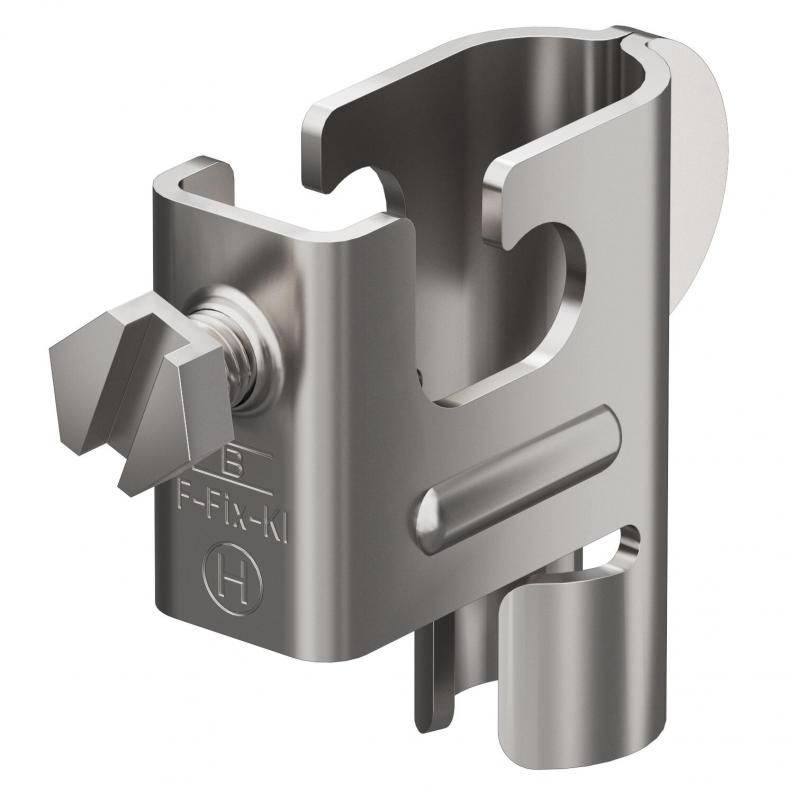

Terminal for FangFix system
Type F-FIX-KL
|Item no. 5403219
|EAN 4012195548775
Item no. / Type
5403219 / F-FIX-KL
Uyumluluk
Rd 8 mm
Smallest selling unit: 5 piece
5piece
piece
Description
• FangFix terminal, VA for RD 8 mm
• Tested with H (0185 kA) to DIN EN 305-62305
• Round conductor installed on the air-termination rod with only one screw
• Suitable for Ø 16 mm pipe air-termination rods
• Tested with H (0185 kA) to DIN EN 305-62305
• Round conductor installed on the air-termination rod with only one screw
• Suitable for Ø 16 mm pipe air-termination rods
Technical data
Dimensions
| Width | 70 mm |
|---|---|
| Height | 55 mm |
Technical data
| Uyumluluk | Rd 8 mm |
|---|---|
| Boyut | RD8 |
| Material | Stainless steel 1.4301 |
Environmental Data
| Packaging without plastic | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,6674 kg CO2e / 1 Piece |
|---|
