Terrazzo lined body for height-adjustable cassettes, nominal size R9

Type SK RKR9
|
Item no. 7404376
|
EAN 4012196332045
Item no. / Type
7404376 / SK RKR9

Smallest selling unit: 1 piece

piece

Description

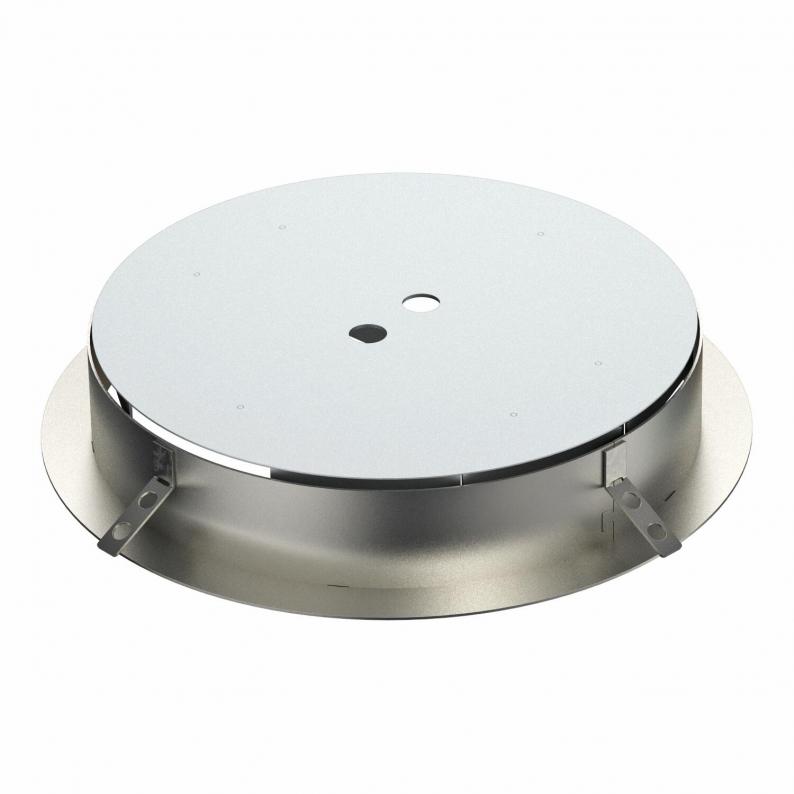

Lined body, suitable for polishing, for the direct and jointless installation of round height-adjustable cassettes, nominal size 9, into surface-finished screeds/terrazzo floorings. The lining is laid floating onto underfloor boxes with mounting lids of nominal size 9, closing the gaps between underfloor box and cassette frame. The protection cover made from aluminium sheet is put into the cassette frame as a dummy before the screed work is done and can be polished over with the screed or terrazzo.
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Height55 mm
Dimension d308 mm
Dimension h55 mm
Dimension D360 mm

Technical data

Floor height, min.130 mm
Floor height, max.200 mm
Diameter308 mm
Nominal size for device installation unitsR9
MaterialStainless steel 1.4301

Environmental Data

18,6251 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate18,6251 kg CO2e / 1 Piece

Accessories

System accessories
Type
RKFR2 9 V20

Smallest selling unit: 1 piece

piece

Type
RKFR2 9 V25

Smallest selling unit: 1 piece

piece

Type
TUK2 GV

Smallest selling unit: 1 piece

piece
