Tightening strap A2K Jet black
Type SBR 8 A2K
|Item no. 6490192
|EAN 4012196589685
Item no. / Type
6490192 / SBR 8 A2K
Smallest selling unit: 40 m
40m
m
Description
Tightening strap made of rustproof steel with plastic jacketing to fasten cables on cable support systems.
Technical data

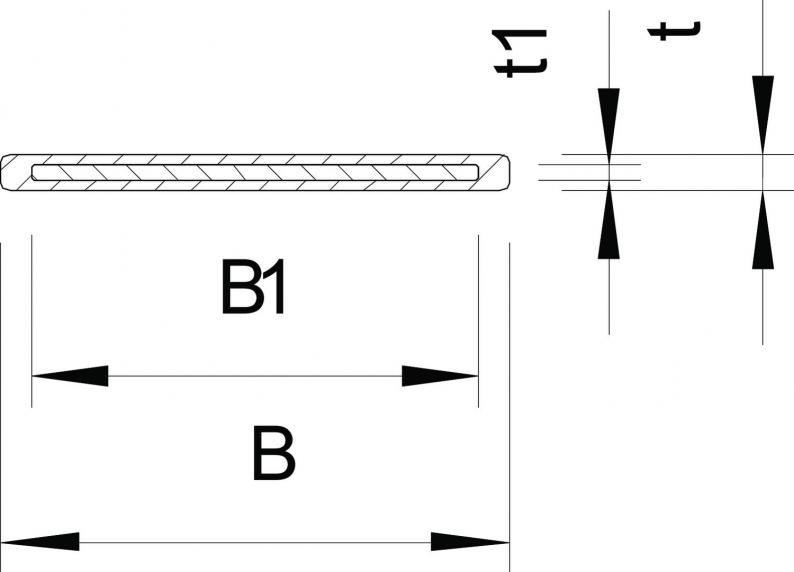

Dimensions
| Dimension B | 9,3 mm |
|---|---|
| Dimension t | 1 mm |
| Dimension B1 | 8 mm |
| Ölçü t1 (mm) | 0,3 |
Technical data
| Ölçü | 8,0 x 0,3 |
|---|---|
| Minimum kırılma yükü | 1,16 kN |
| Version for | Smooth |
| Boyut | 8x0,3 |
| Surface | Plastic-coated |
| Material | Stainless steel 1.4301 |
| Colour | Jet black; RAL 9005 |
