TP profile FS
Type TPS 3000 FS
|Item no. 6364802
|EAN 4012196282739
Item no. / Type
6364802 / TPS 3000 FS
Length
3000 mm
Plate thickness
2 mm
Smallest selling unit: 1 piece
1piece
piece
Description

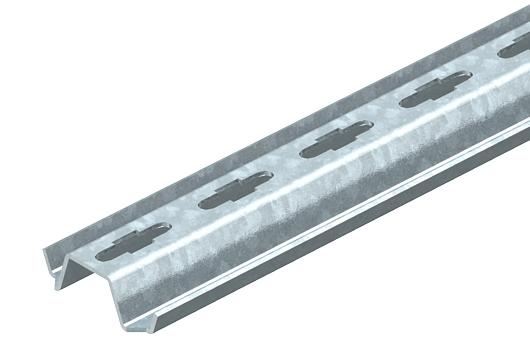

TP profile, perforated, in supply length 3,000 mm.
Technical data

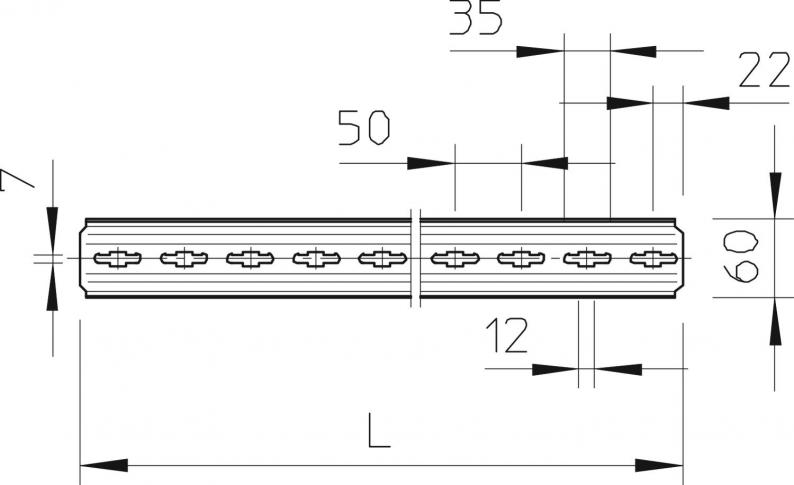

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 60 mm |
| Height | 20 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Plate thickness | 2 mm |
| Delik türü | Perforated back |
| Breakable | no |
| Hole width | 11 mm |
| With toothing | no |
| Version for | Single profile |
| Profile shape | Flat profile |
| Boyut | 3000mm |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 9,6755 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Length
Plate thickness
Item no.
TPS 3000 FS
3000
2
6364802
TPS 3000 FS
Item no.
6364802
Length
3000
Plate thickness
2
