TP profile FT

TP profile FT

Type TPSG 3000 FT
|
Item no. 6366093
|
EAN 4012195424925
Show all variants
Item no. / Type
6366093 / TPSG 3000 FT
Length
3000 mm
Plate thickness
2 mm

Smallest selling unit: 1 piece

piece

Description

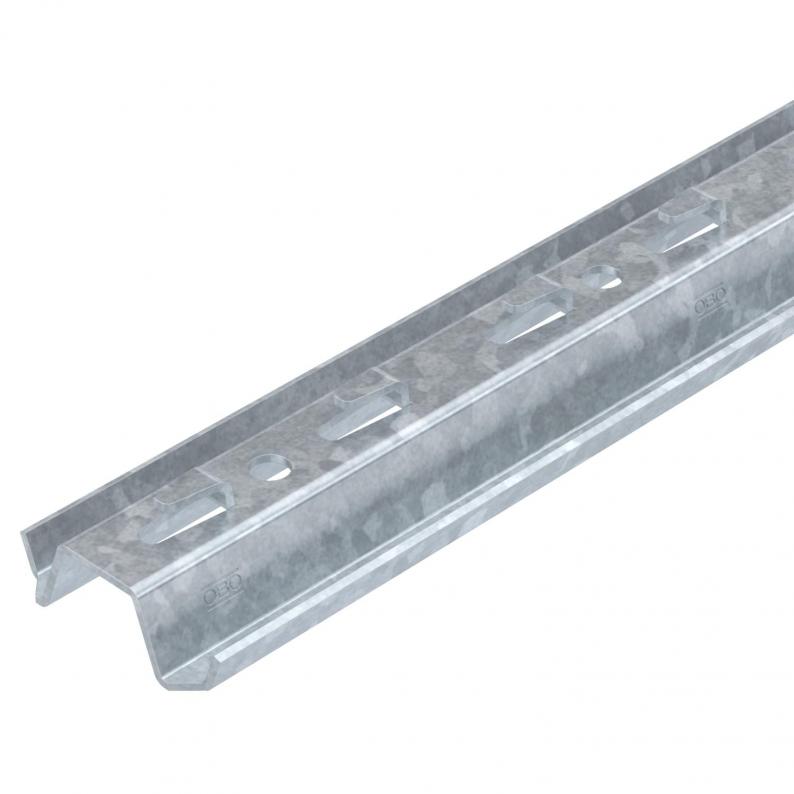

TP profile with clamping lugs.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • TP profile and suspended support and bracket
  • CO₂ footprint (PCF)

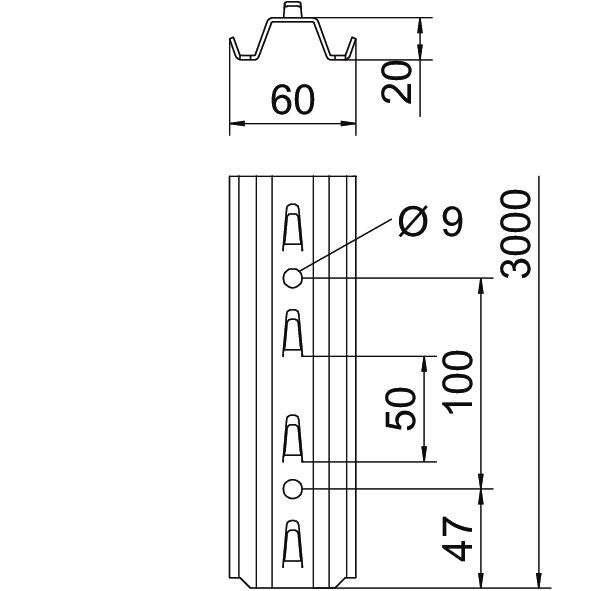

Technical data

Dimensions

Length3000 mm
Width60 mm
Height20 mm

Technical data

Maintain electrical functionsno
Plate thickness2 mm
Type of perforationWithout
Breakableno
With toothingno
Version forSingle profile
ROHS-conformantyes
Profile shapeFlat profile
Dimension3000mm
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Product seriesTP Series

Environmental Data

8,609 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate8,609 kg CO2e / 1 Piece
CO₂ Footprint (GWP)8,609 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Accessories

Mounting accessories

Item no. 6364625

End cap
Type
TPS KS OR

Smallest selling unit: 10 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (1)

Variants

TPSG 3000 FT
Item no.
6366093
Length
3000
Plate thickness
2
