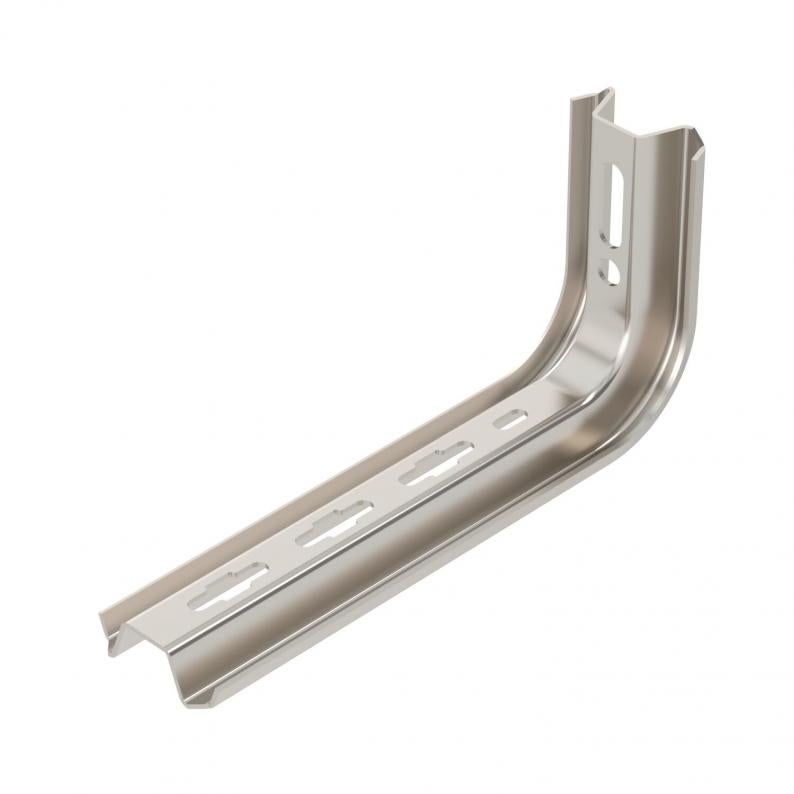

TP support/wall and support bracket A2

TP support/wall and support bracket A2

Type TPSA 245 A2
|
Item no. 6364876
|
EAN 4012195733164
Show all variants
Item no. / Type
Width
F in kN

Smallest selling unit: 1 piece

piece

Description

TP support / bracket for the fastening to horizontal concrete ceilings and walls.

If the profile is fastened directly to the ceiling or the profile is screwed together as head reinforcement, then, for reasons of stability, always use the spacer, type DS 4.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • TP profile and suspended support and bracket
  • Cable tray, side height 35 mm
  • Cable tray, side height 60 mm
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

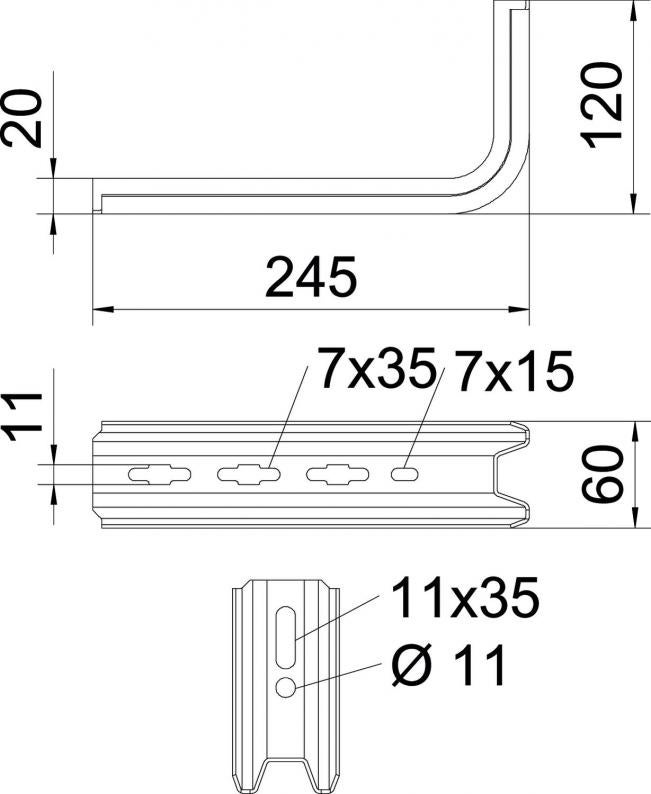

Dimensions

Length245 mm
Width60 mm
Height120 mm
Dimension L245 mm
Dimension B60 mm
Dimension H120 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
for width min.200
for width max.200 mm
Version forWall and support bracket
F in kN0,9 kN
Dimension245x60x120
SurfaceBright, treated
MaterialStainless steel 1.4301
Colourstainless steel
Load diagram, bracket, type TPSA

Bending of the bracket tip at permitted bracket load

Permitted bracket load in kN without man load

Load curve with bracket lengths in mm

Environmental Data

2,2624 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate2,2624 kg CO2e / 1 Piece
CO₂ Footprint (GWP)2,2624 kg CO₂e
Determination date of CO2 value2025-05-21T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1
EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2

Accessories

Mounting accessories

Item no. 6364625

End cap
Type
TPS KS OR

Smallest selling unit: 10 piece

piece

Item no. 6416594

Spacer A2
Type
DS 4 A2

Smallest selling unit: 10 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (5)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

F in kN
TPSA 145 A2
Item no.
6364871
Width
60
F in kN
1,5
Colour
stainless steel
TPSA 245 A2
Item no.
6364876
Width
60
F in kN
0,9
Colour
stainless steel
TPSA 345 A2
Item no.
6364881
Width
60
F in kN
0,55
Colour
stainless steel
