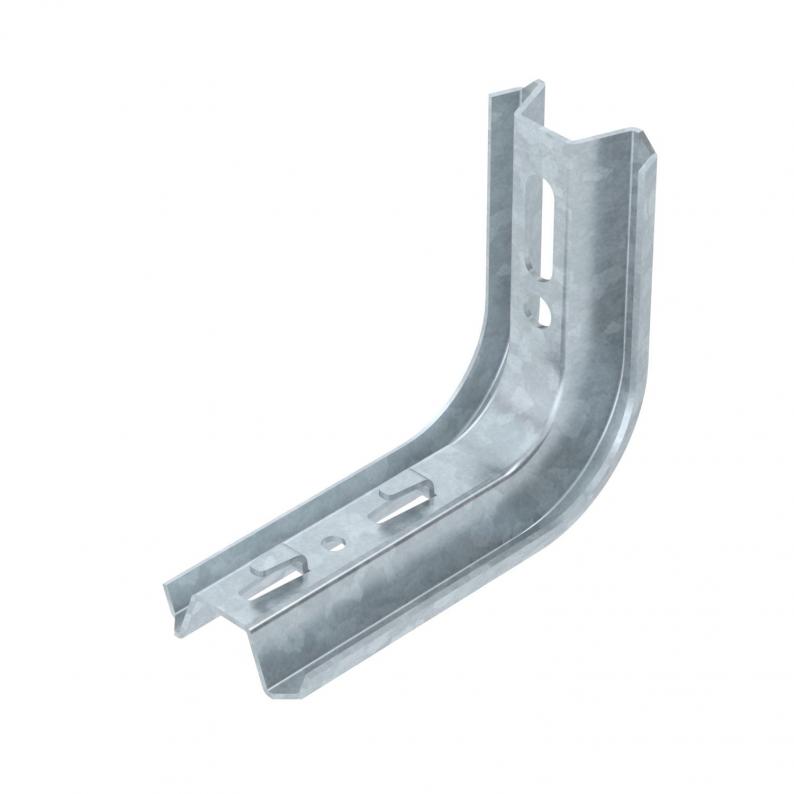

TP support / wall and support bracket FT

TP support / wall and support bracket FT

Type TPSAG 145 FT
|
Item no. 6366131
|
EAN 4012195076957
Show all variants
Item no. / Type
Width
kN de F
Colour

Smallest selling unit: 1 piece

piece

Description

TP bracket with clamping lugs.

If the bracket is fastened directly to the wall or the profiles are screwed together, then, for reasons of stability, always use the spacer, type DS 4.

  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • Askı desteği ve konsol olarak TP profil
  • Kafes kablo kanalı, kenar yüksekliği 35 mm
  • Kafes kablo kanalı, kenar yüksekliği 55 mm
  • Montajı kolay parça
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

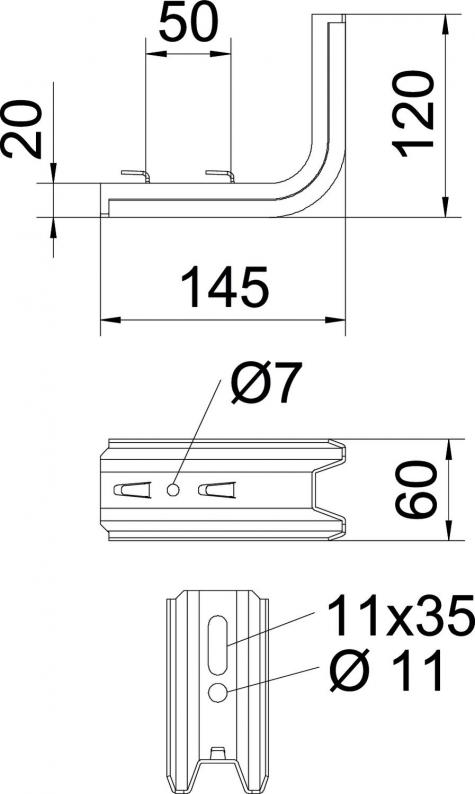

Dimensions

Length145 mm
Width120 mm
Height60 mm
Dimension L145 mm
Dimension B60 mm
Dimension H120 mm
Dimension W50 mm

Technical data

Maintain electrical functionsno
Paslanmaz çelik, mordanlıno
Genişlik min.100
Genişlik maks.100 mm
Version forWall and support bracket
kN de F1,5 kN
BoyutB145mm
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
TPSAG tipi konsolun yük diyagrami

Müsaade edilen konsol yükü altında konsol ucundaki eğilme

İnsan taşıma yükü hariç olmak üzere kn olarak müsaade edilen konsol yükü

Destekler arası mesafe, m

Environmental Data

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
Unit base EPD1 running metre + mounting system
EPD GWP (outside of the system limits)18.83 kg CO₂e
EPD GWP (disposal phase)1.97 kg CO₂e
EPD GWP (manufacturing phase)81.32 kg CO₂e
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2
CO2 ayak izi (GWP) beşikten kapıya0,7423 kg CO2e / 1 Piece

Accessories

Mounting accessories

Item no. 6364625

End cap
Type
TPS KS OR

Smallest selling unit: 10 piece

piece

Item no. 6416586

Spacer FT
Type
DS 4 FT

Smallest selling unit: 20 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (5)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (1)

Variants

Width
kN de F
Colour
TPSAG 145 FT
Item no.
6366131
Width
120
kN de F
1,5
Colour
Çinko grisi
TPSAG 195 FT
Item no.
6366135
Width
120
kN de F
1
Colour
zinc
TPSAG 245 FT
Item no.
6366139
Width
60
kN de F
0,9
Colour
zinc
TPSAG 345 FT
Item no.
6366143
Width
60
kN de F
0,55
Colour
zinc
