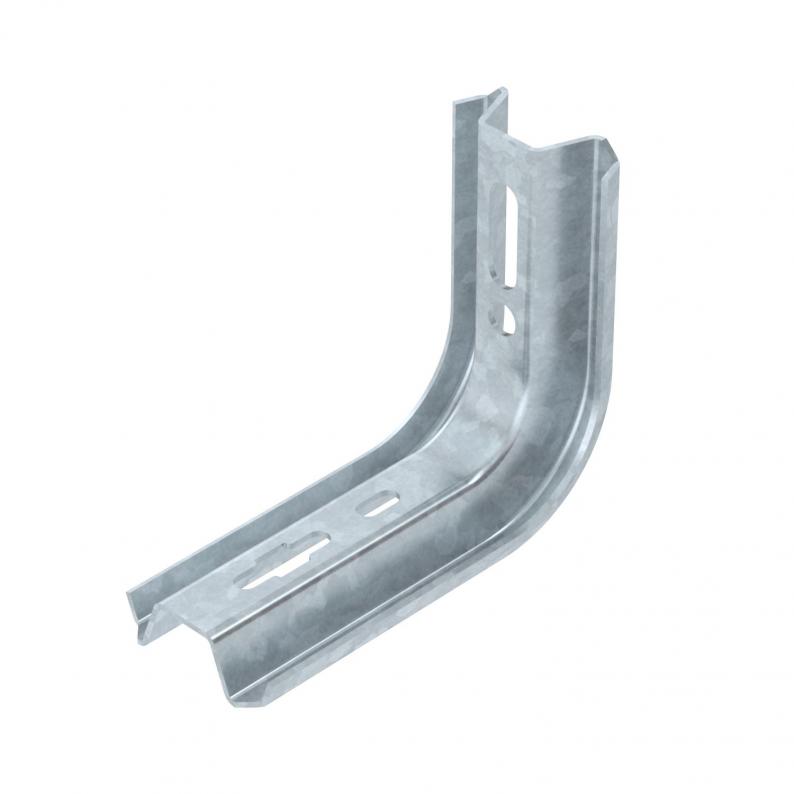

TP support / wall and support bracket FT

TP support / wall and support bracket FT

Type TPSA 145 FT
|
Item no. 6364659
|
EAN 4012196473892
Show all variants
Item no. / Type
Width
kN de F
Colour

Smallest selling unit: 1 piece

piece

Description

TP support/bracket for fastening to horizontal concrete ceilings and walls.

If the profile is fastened directly to the ceiling or the profile is screwed together as head reinforcement, then, for reasons of stability, always use the spacer, type DS 4.

  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • Askı desteği ve konsol olarak TP profil
  • Kablo kanalı, kenar yüksekliği 35 mm
  • Kablo kanalı, kenar yüksekliği 60 mm
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

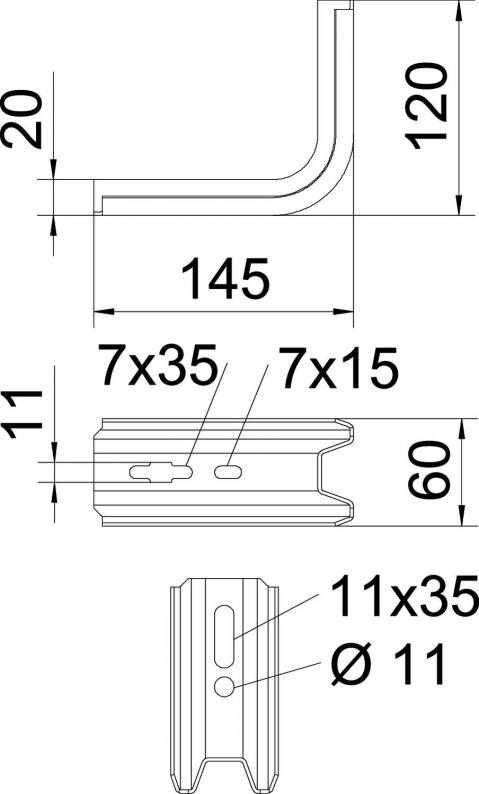

Dimensions

Length145 mm
Width60 mm
Height120 mm
Dimension L145 mm
Dimension B60 mm

Technical data

Maintain electrical functionsno
Paslanmaz çelik, mordanlıno
Genişlik min.100
Genişlik maks.100 mm
Version forWall and support bracket
kN de F1,5 kN
BoyutB145mm
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc

Environmental Data

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
Unit base EPD1 running metre + mounting system
EPD GWP (outside of the system limits)18.83 kg CO₂e
EPD GWP (disposal phase)1.97 kg CO₂e
EPD GWP (manufacturing phase)81.32 kg CO₂e
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2
CO2 ayak izi (GWP) beşikten kapıya0,8838 kg CO2e / 1 Piece

Accessories

Mounting accessories

Item no. 6364625

End cap
Type
TPS KS OR

Smallest selling unit: 10 piece

piece

Item no. 6416586

Spacer FT
Type
DS 4 FT

Smallest selling unit: 20 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (5)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (1)

Variants

kN de F
Colour
TPSA 145 FT
Item no.
6364659
Width
60
kN de F
1,5
Colour
Çinko grisi
TPSA 245 FT
Item no.
6364667
Width
60
kN de F
0,9
Colour
zinc
TPSA 345 FT
Item no.
6364675
Width
60
kN de F
0,55
Colour
Çinko grisi
TPSA 195 FT
Item no.
6364683
Width
60
kN de F
1
Colour
zinc
