TP wall and ceiling bracket FT

TP wall and ceiling bracket FT

Type TPDG 145 FT
|
Item no. 6365977
|
EAN 4012195076902
Show all variants
Item no. / Type
Width
Height
for width max.
F in kN wall
F in kN ceiling

Smallest selling unit: 6 piece

piece

Description

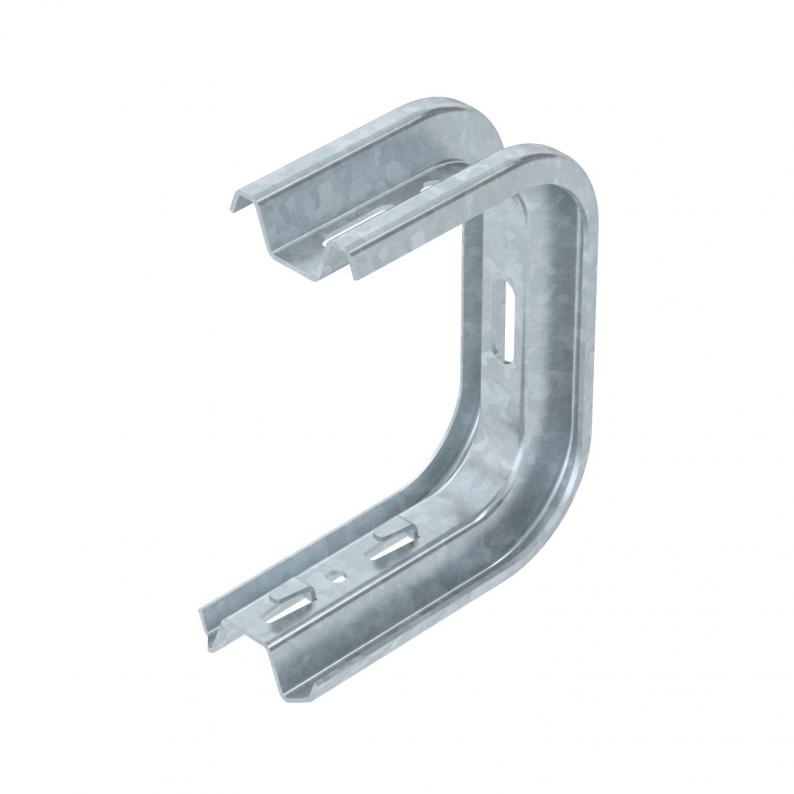

TP wall and ceiling bracket with clamping lugs for screwless mesh cable tray fastening.

If the wall and ceiling bracket is fastened directly to the wall or ceiling, then, for reasons of stability, always use the spacer, type DS 4.

Max. side height of the cable support system 60 mm.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • TP profile and suspended support and bracket
  • Mesh cable tray, slant height 35 mm
  • Mesh cable tray, slant height 55 mm
  • Easy mounting component
  • CO₂ footprint (PCF)

Technical data

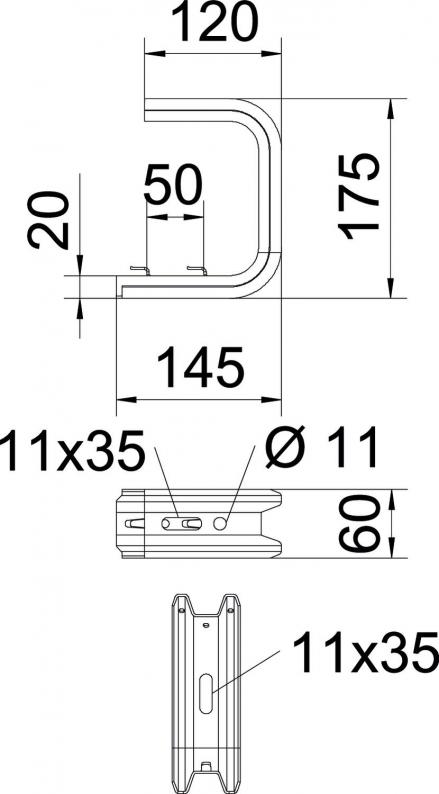

Dimensions

Length175 mm
Width145 mm
Height60 mm
Dimension L50 mm
Dimension B145 mm

Technical data

Maintain electrical functionsno
for width min.100
for width max.100 mm
Suitable for mesh cable trayyes
Suitable for cable ladderno
Suitable for cable trayno
Version forSuspension bracket (C clamp)
F in kN wall1,4 kN
F in kN ceiling1,3 kN
DimensionB145mm
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Load diagram, ceiling clamp TPDG

Bending of the bracket tip at permitted bracket load

Permitted bracket load in kN without man load

Load curve with bracket lengths in mm

Environmental Data

1,1583 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate1,1583 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (1)
