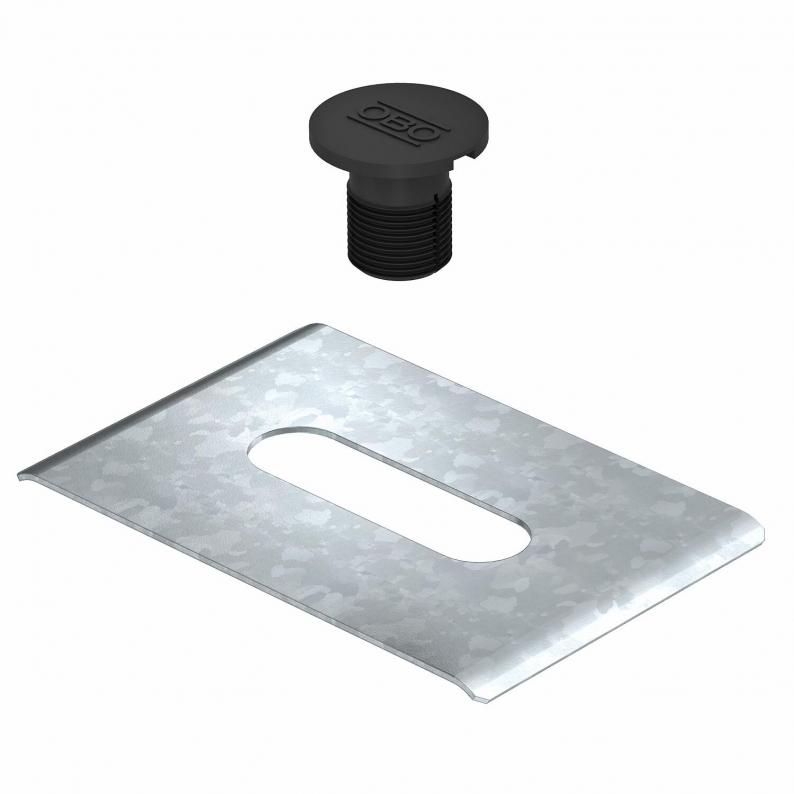

TrayFix mounting adapter for mesh cable trays on FangFix system
Type TrayFix
|Item no. 5403100
|EAN 4012195738428
Item no. / Type
5403100 / TrayFix
Smallest selling unit: 25 piece
25piece
piece
Description
• Fastening system for the mounting of cable trays and mesh cable trays on FangFix block, e.g. cable routing on flat roofs
• Adapted to OBO cable tray systems MKSM, SKSM and IKSM
• Adapted to OBO mesh cable tray systems with a minimum width of 100 mm
• Adapted to OBO cable tray systems MKSM, SKSM and IKSM
• Adapted to OBO mesh cable tray systems with a minimum width of 100 mm
Technical data

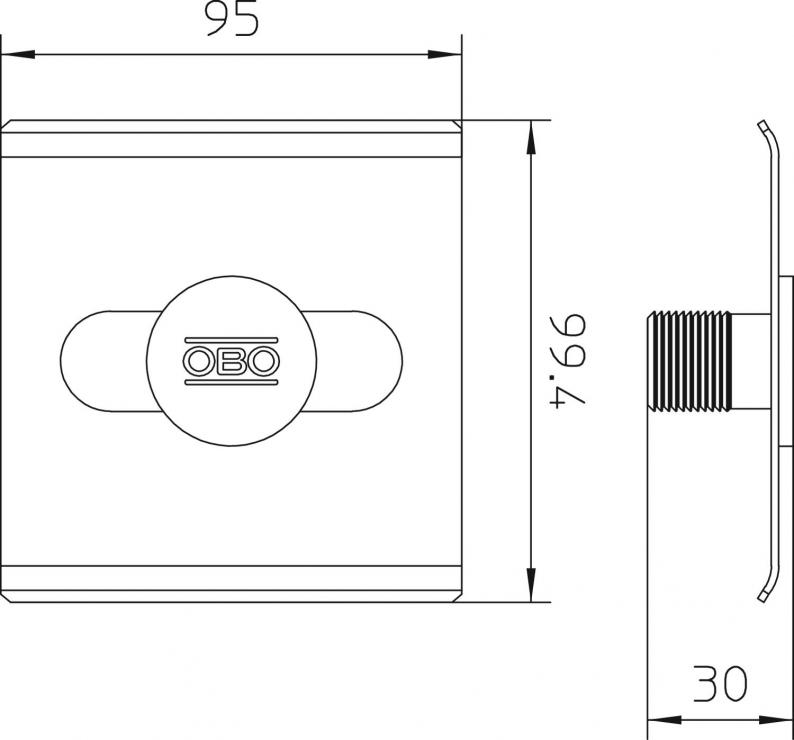

Dimensions
| Length | 99,4 mm |
|---|---|
| Width | 95 mm |
| Height | 30 mm |
Technical data
| Boyut | Ø20mm |
|---|---|
| Colour | Black |
Environmental Data
| Packaging without plastic | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,7259 kg CO2e / 1 Piece |
|---|
