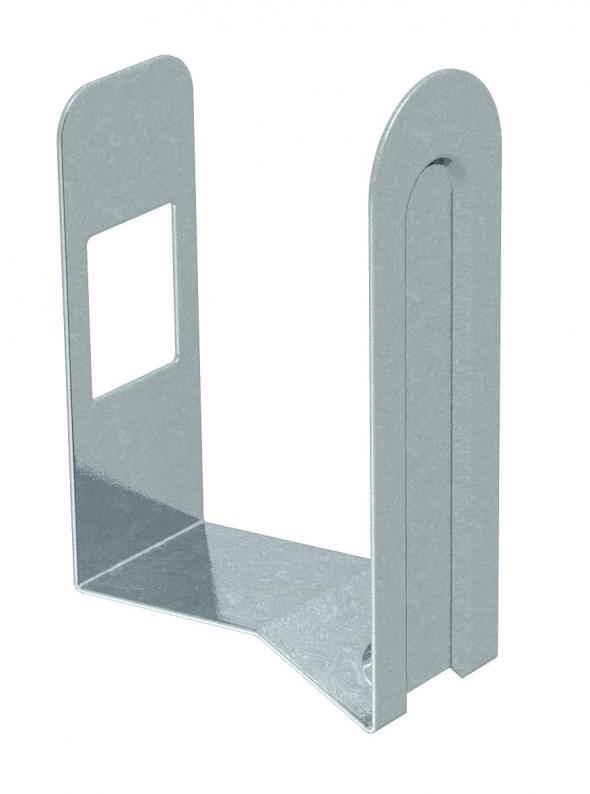

Trunking clamp, LKM, trunking width 100 mm

Trunking clamp, LKM, trunking width 100 mm

Type LKM K80
|
Item no. 6249884
|
EAN 4012196119233
Show all variants
Item no. / Type
6249884 / LKM K80

Smallest selling unit: 20 piece

piece

Description

The duct clamp keeps the inserted cables in the duct, thus simplifying installation on walls and ceilings. The duct clamps are plugged onto the loop perforation and locked on the side wall. Suitable for duct width 100 mm.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length25 mm
Width81 mm
Height49 mm
Dimension b81 mm
Dimension a25 mm
Dimension c49 mm

Technical data

Maintain electrical functionsno
for duct dimension60 x 100
Halogen-freeyes
Self-extinguishingno
Protection ratingIP30
With equipotential bondingno
Protection rating IK codeIK10
Fastening typeLockable
Cover width100 mm
Permitted temperature range, min.-5 °C
Permitted temperature range, max.90 °C
Dimension80mm
SurfaceElectrogalvanised, blue-passivated
MaterialSteel
Colourzinc

Environmental Data

0,059 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,059 kg CO2e / 1 Piece
