Trunking connector and joint cover
Type GK-KS45-1RW
|Item no. 6113020
|EAN 4012196419111
Item no. / Type
Colour
Smallest selling unit: 6 piece
6piece
piece
Description

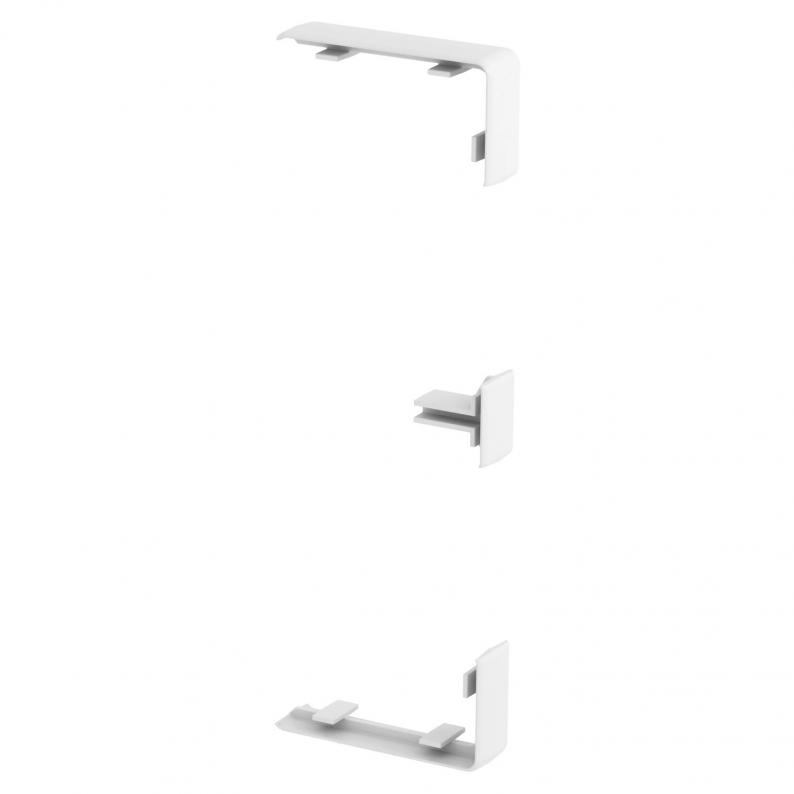

Joint cover for the bases of the Rapid 45-2 device installation trunking to hide cut edges and provide a perfect connection of the trunking segments. The joint covers are attached. Suitable for trunking width 100 mm and 165 mm.
Technical data

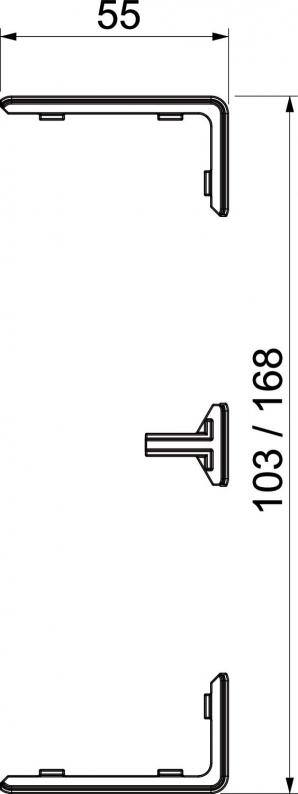

Dimensions
| Length | 15 mm |
|---|---|
| Width | 55 mm |
| Height | 27 mm |
Technical data
| Halojen İçermez | yes |
|---|---|
| Koruma sınıfı | IP40 |
| Protection rating IK code | IK08 |
| for duct width | 100,17 mm |
| for trunking height | 53 mm |
| Shape | Symmetrical |
| Version for | Trunking cut cover |
| Fastening type | Slide (before mounting) |
| Kanal genişliği | 45 mm |
| Kullanılabilir sıcaklık aralığı min. | -15 °C |
| Kullanılabilir sıcaklık aralığı maks. | 60 °C |
| Boyut | 168x55x15 |
| Material | Polycarbonate/Acrylnitrile-butadiene-styrene |
| Colour | Pure white; RAL 9010 |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,0566 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Colour
Item no.
GK-KS45-1RW
Pure white; RAL 9010
6113020
GK-KS45-1LGR
Light grey; RAL 7035
6113022
GK-KS45-1AL
alüminyum
6113024
