Trunking connector and joint cover
Type GEK-KS45-3
|Item no. 6116163
|EAN 4012195391647
Item no. / Type
6116163 / GEK-KS45-3
Colour
Pure white; RAL 9010
This item is a discontinued product!
Smallest selling unit: 6 piece
6piece
piece
Description

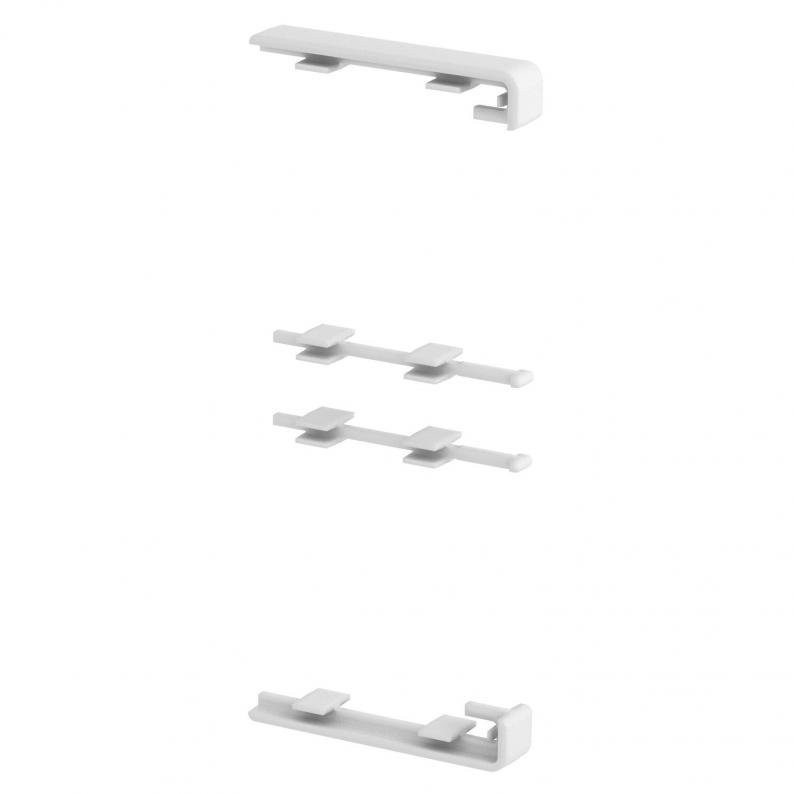

Joint cover for smooth connection of trunking segments.
Technical data
Technical data
| Halojen İçermez | no |
|---|---|
| Koruma sınıfı | IP30 |
| Protection rating IK code | IK08 |
| for duct width | 165 mm |
| for trunking height | 53 mm |
| Shape | Universal |
| Version for | Trunking cut cover |
| Fastening type | Miscellaneous |
| Kanal genişliği | 45 mm |
| Kullanılabilir sıcaklık aralığı min. | -15 °C |
| Kullanılabilir sıcaklık aralığı maks. | 60 °C |
| Material | Polyvinylchloride |
| Colour | Pure white; RAL 9010 |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,0406 kg CO2e / 1 Piece |
|---|
