Trunking cover, smooth

Trunking cover, smooth

Type GKH-OTGRW
|
Item no. 6114210
|
EAN 4012196450831
Show all variants
Item no. / Type
6114210 / GKH-OTGRW
Length
2000 mm
Colour
Pure white; RAL 9010

Smallest selling unit: 2 m

m

Description

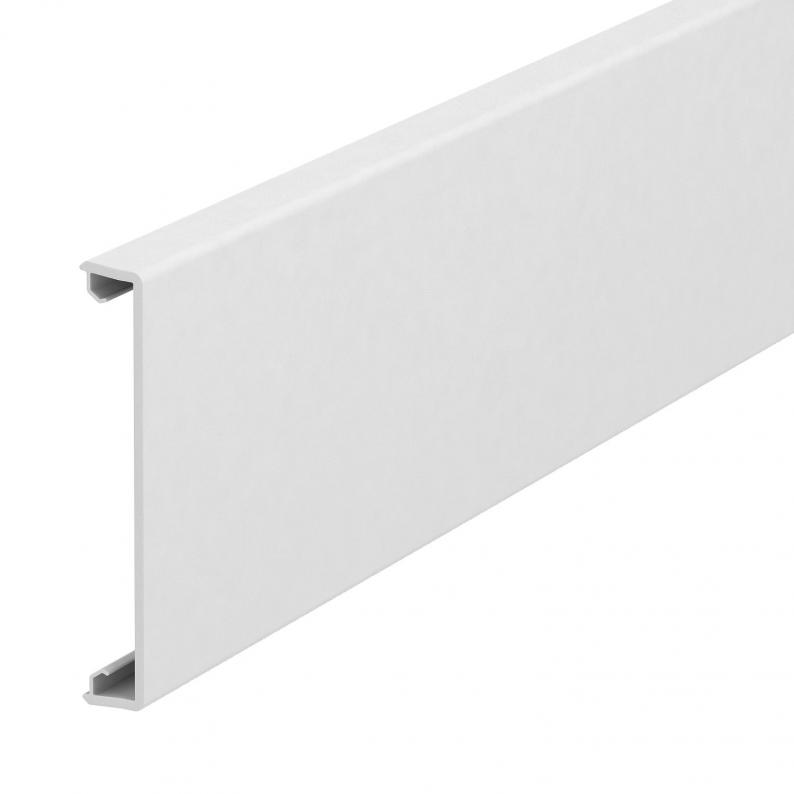

Smooth trunking cover made of halogen-free PC/ABS, for closing device installation trunking with 80 mm system opening.

  • Alman Elektrik, Elektronik ve Bilgi Teknolojileri Birliği
  • Halojen içermez; Klor, flüor ve brom içermez
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

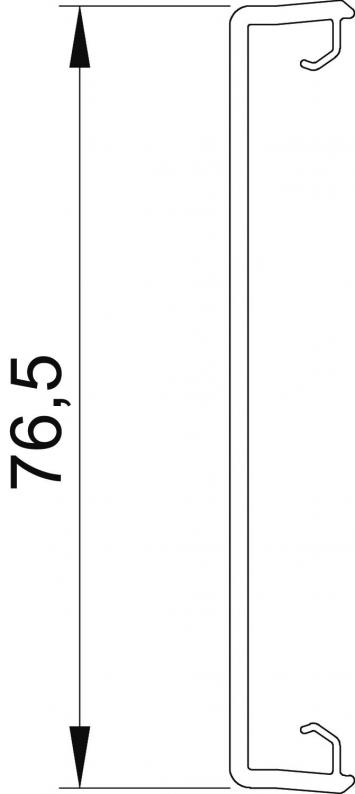

Dimensions

Length2000 mm
Width76,5 mm
Height12 mm

Technical data

Halojen İçermezyes
Koruyucu folyoyes
Koruma sınıfıIP30
Üst parçaların montaj şekliInternal
Protection rating IK codeIK08
Version forSmooth
Kullanılabilir sıcaklık aralığı min.-15 °C
Kullanılabilir sıcaklık aralığı maks.90 °C
Boyut80x2000
MaterialPolycarbonate/Acrylnitrile-butadiene-styrene
ColourPure white; RAL 9010
Antibacterial treatmentno

Environmental Data

Packaging made completely from recycled cardboard.yes
CO2 ayak izi (GWP) beşikten kapıya1,2707 kg CO2e / 1 Meter

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

GKH-OTGRW
Item no.
6114210
Length
2000
Colour
Pure white; RAL 9010
