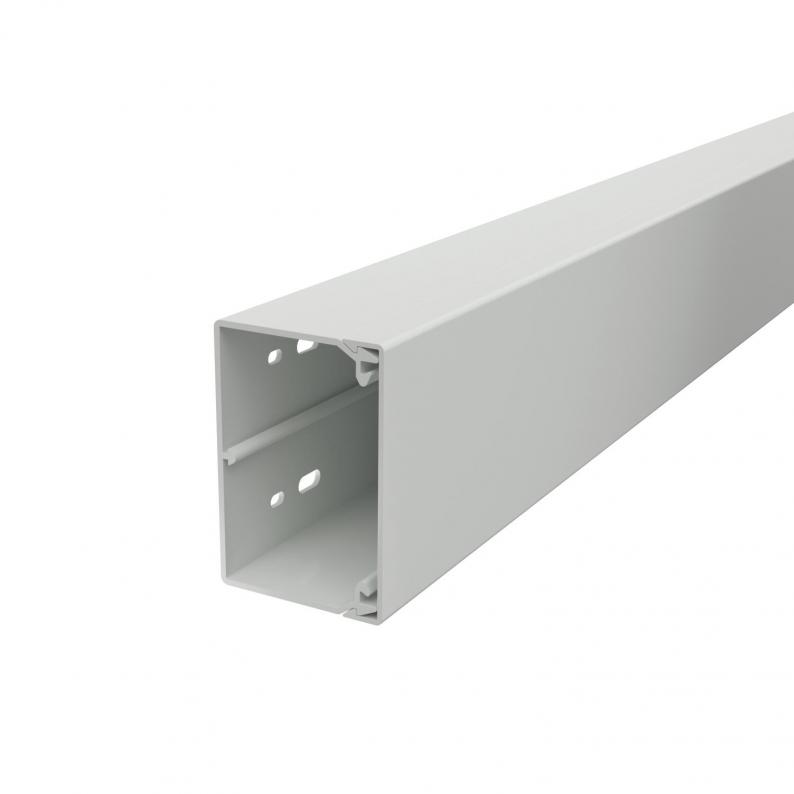

Trunking, type WDK 60090
Type WDK60090LGR
|Item no. 6027113
|EAN 4012196668052
Item no. / Type
Length
Width
Height
Colour
Smallest selling unit: 24 m
24m
m
Description
Trunking cover and base with base perforation.
Four cover fixing devices included.
Lid clamp can be moved along the entire length of the trunking.
Four cover fixing devices included.
Lid clamp can be moved along the entire length of the trunking.
Technical data

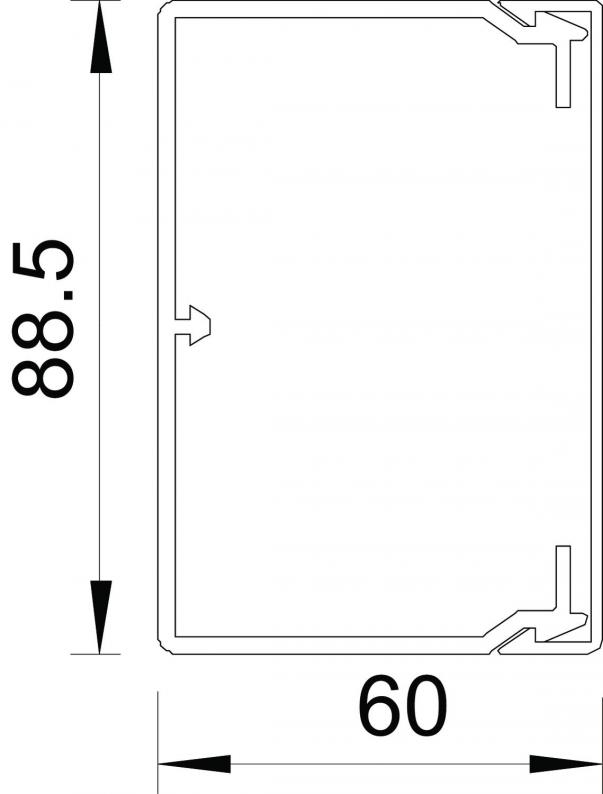

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 90 mm |
| Height | 60 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| NYM tipi kablo sayısı 3 x 1,5 mm² Ø 10,5 mm (kutusuz) | 24 |
| NYM tipi kablo sayısı 5 x 1,5 mm² Ø 12,0 mm (kutusuz) | 18 |
| NYM tipi kablo sayısı 3 x 2,5 mm² Ø 11,5 mm (kutusuz) | 20 |
| Usable cross-section | 4236 mm² |
| Halojen İçermez | no |
| Sabit seperatör sayısı | 0 |
| Geçmeli seperatör sayısı | 1 |
| Kablo tutucu mandal | yes |
| Koruyucu folyo | no |
| Kanal bağlantı elemanı | no |
| Koruma sınıfı | IP30 |
| Delivery on a roll | no |
| Protection rating IK code | IK04 |
| Fastening type | Base perforation |
| Version, cable trunking cover | Loose |
| Kullanılabilir sıcaklık aralığı min. | -5 °C |
| Kullanılabilir sıcaklık aralığı maks. | 60 °C |
| Boyut | 60x90x2000 |
| Material | Polyvinylchloride |
| Colour | Light grey; RAL 7035 |
| Antibacterial treatment | no |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 1,9749 kg CO2e / 1 Meter |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
WDK HI60090LGR
6182208
Smallest selling unit: 2 piece
2piece
piece
WDK HA60090LGR
6182607
Smallest selling unit: 2 piece
2piece
piece
WDK HF60090LGR
6183417
Smallest selling unit: 2 piece
2piece
piece
Item no. 6183816
End piece, trunking type WDK 60090Type
WDK HE60090LGR
Smallest selling unit: 10 piece
10piece
piece
Item no. 6182208
Internal corner cover, trunking type WDK 60090Type
WDK HI60090LGR
Smallest selling unit: 2 piece
2piece
piece
Item no. 6182607
External corner cover, trunking type WDK 60090Type
WDK HA60090LGR
Smallest selling unit: 2 piece
2piece
piece
