Trunking unit for GESR9, height 100−150 mm

Trunking unit for GESR9, height 100−150 mm

Type OKA-W50010050DR9
|
Item no. 7424802
|
EAN 4012195245070
Show all variants
Item no. / Type
7424802 / OKA-W50010050DR9
Length
2400 mm
Width
500 mm
Covers
6
Duct height, min.
100 mm
Trunking height, max.
150 mm

Smallest selling unit: 2.4 m

m

Description

Ready-to-mount trunking unit with three or six device installation lids for cable laying and the installation of flush-mount units of nominal size R9, consisting of the trunking base (floor trough with side and floor covering contact profiles) and trunking lid with blank covered mounting opening. Floor trough with holding straps for self-contacting mounting of separating retainers. The scope of delivery contains 6 height-adjustable fixing brackets, 6 screed anchors and height-adjustable lid butt supports: 3x for nominal trunking width 400 and 6x for nominal trunking widths 500 and 600. Trunking lid screwed down when delivered.



With three (for nominal trunking width 400, L = 800 mm) or six device installation covers (for nominal trunking widths 500 and 600, L = 400 mm), each with one installation opening for a round installation unit of nominal size 9 or 9/55.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length2400 mm
Width500 mm

Technical data

Number of compartments3 St.
Number of insertable partitions2
Covers6

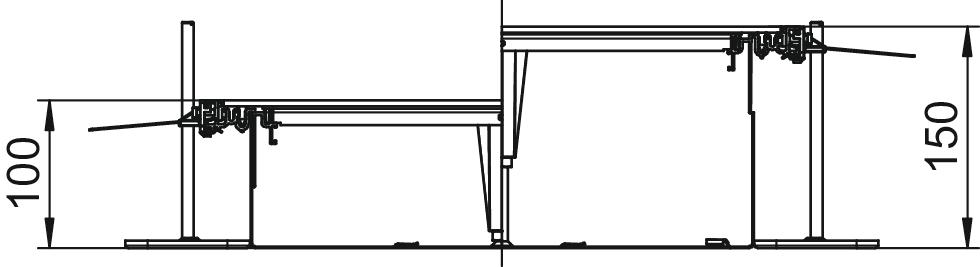

Height-adjustment range, min.100 mm
Height-adjustment range, max.150 mm
Minimum screed height100
Installation opening for on-floor tankno
Seal installation optionyes
Decouplableno
Floor plateyes
With equipotential bondingno
Removable coveryes
Cover fastening, lockingno
Mounting openingFor service outlet
Mounting opening coveryes
Number of planned flush-mount units6
With separating retainerno
Cover material thickness4
Suitable for expansion jointno
With overhangyes
With connection openingyes
Mounting openingRound
Duct height, min.100 mm
Trunking height, max.150 mm
Dimension2400x500x100
SurfaceStrip galvanized
MaterialSteel

Environmental Data

108,2814 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate108,2814 kg CO2e / 1 Meter

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Certificates (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

OKA-W50010050DR9
Item no.
7424802
Length
2400
Width
500
Covers
6
Duct height, min.
100
Trunking height, max.
150
