Trunking unit for GESR9, height 40−240 mm

Trunking unit for GESR9, height 40−240 mm

Type OKA-G60040240DR9
|
Item no. 7424264
|
EAN 4012195243786
Show all variants
Item no. / Type
7424264 / OKA-G60040240DR9
Length
2400 mm
Width
600 mm
Covers
6
Duct height, min.
40 mm
Trunking height, max.
240 mm

Smallest selling unit: 2.4 m

m

Description

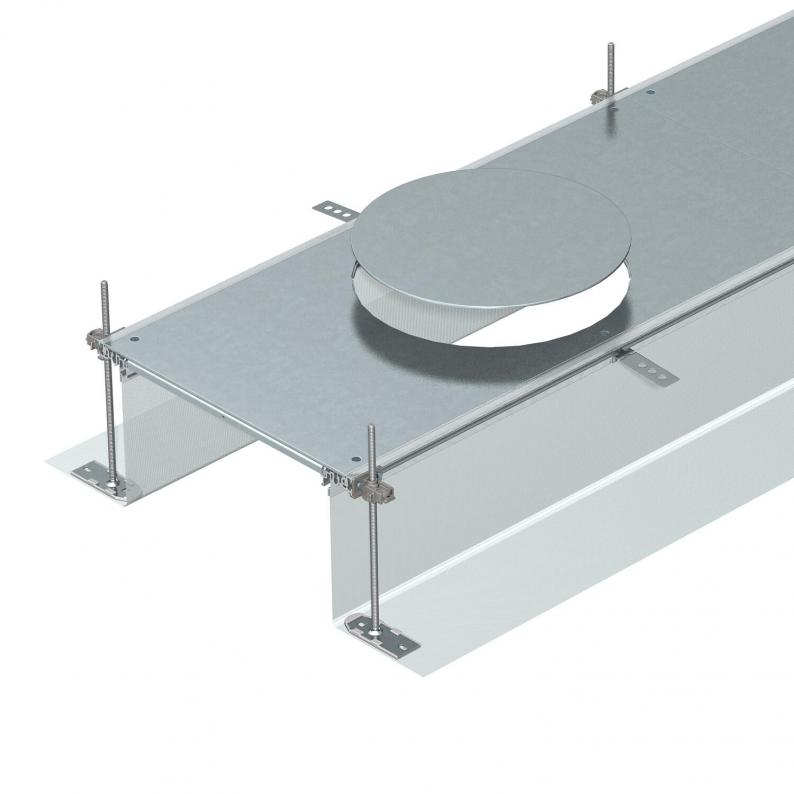

Ready-to-mount trunking unit with three or six device installation lids for cable laying and the installation of installation units of nominal size R9, consisting of two side profiles with attached flexible metal mesh side wall, floor covering guide profiles and trunking lid with blank mounting opening. The scope of supply contains six height-adjustable wall fixing brackets, six screed anchors and three height-adjustable cover joint supports for nominal trunking width 400 and six cover joint supports for nominal trunking widths 500 and 600. Trunking lid screwed down when delivered.

With three (for nominal trunking width 400, L = 800 mm) or six device installation lids (for nominal trunking widths 500 and 600, L = 400 mm) each with one installation opening for a round installation unit of nominal size R9.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length2400 mm
Width600 mm

Technical data

Covers6

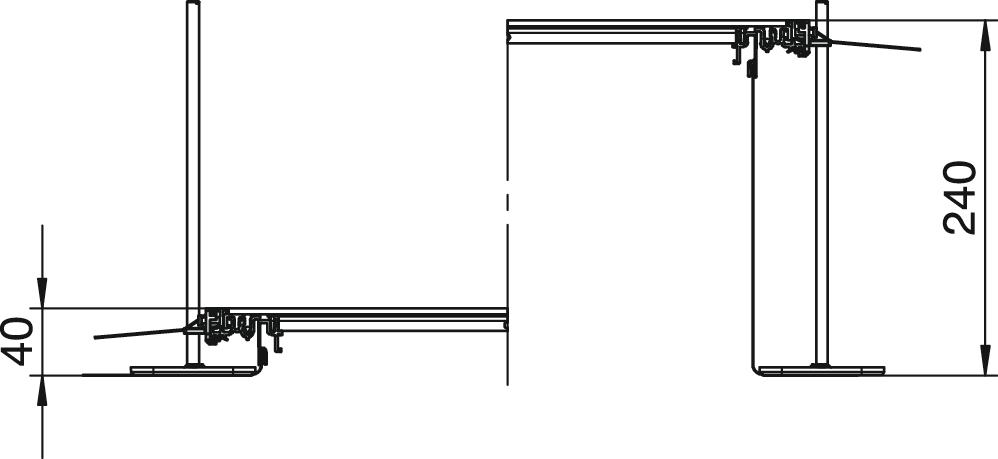

Height-adjustment range, min.40 mm
Height-adjustment range, max.240 mm
Minimum screed height40
Installation opening for on-floor tankno
Seal installation optionyes
Decouplableyes
Floor plateyes
With equipotential bondingno
Removable coveryes
Cover fastening, lockingno
Mounting openingFor service outlet
Mounting opening coveryes
Number of planned flush-mount units6
With separating retainerno
Cover material thickness4
Suitable for expansion jointno
With overhangyes
With connection openingyes
Mounting openingRound
Duct height, min.40 mm
Trunking height, max.240 mm
Dimension2400x600x240
SurfaceStrip galvanized
MaterialSteel

Environmental Data

91,8316 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate91,8316 kg CO2e / 1 Meter
