U support connector A4
Type VUS 3 A4
|Item no. 6018520
|EAN 4012195618454
Item no. / Type
6018520 / VUS 3 A4
Smallest selling unit: 1 piece
1piece
piece
Description

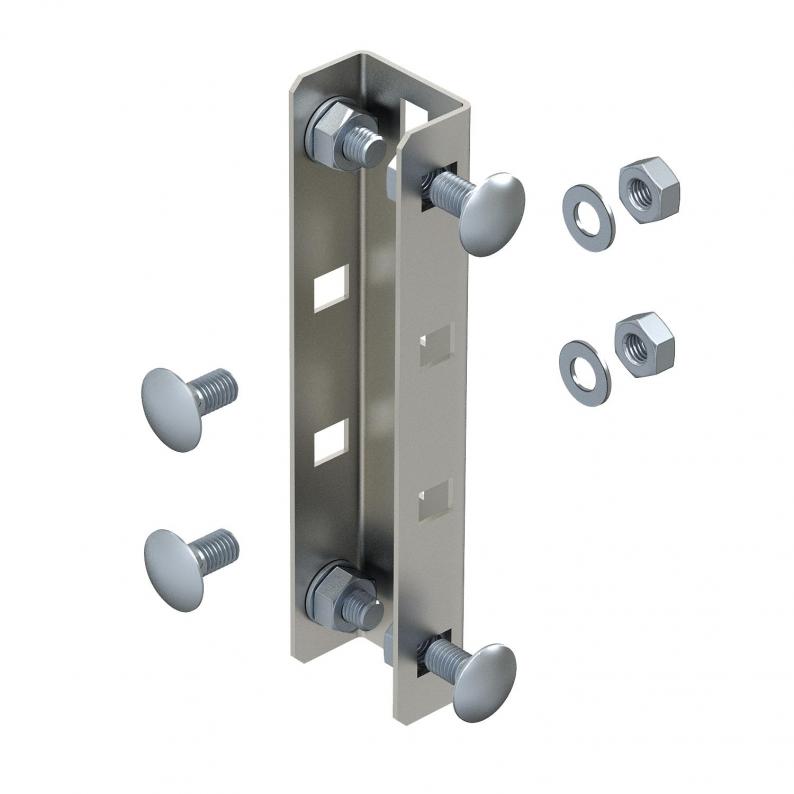

U support connector to connect US 3 supports.
Including appropriate fastening material.
Technical data

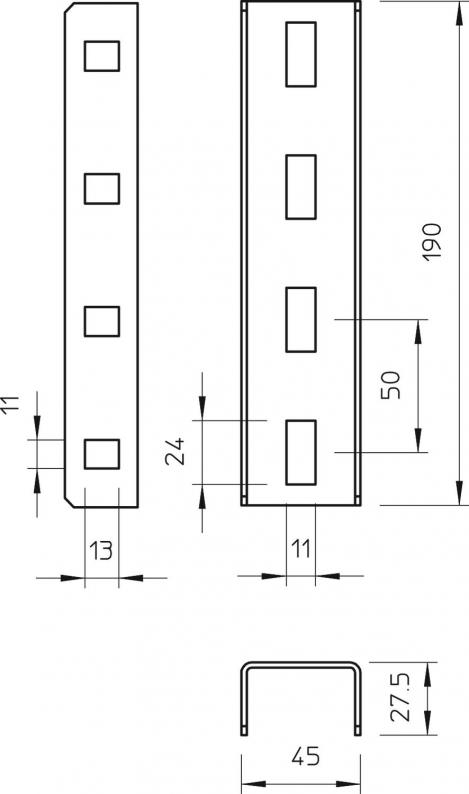

Dimensions
| Length | 190 mm |
|---|---|
| Width | 45 mm |
| Height | 27,5 mm |
Technical data
| Drill hole spacing, centre | 50 mm |
|---|---|
| With screw accessories | yes |
| Ölçü | 27,5 x 45 x190 |
| Suitable for profile shapes | U profile |
| Boyut | 190x45 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4571 |
| Colour | stainless steel |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 2,8545 kg CO2e / 1 Piece |
|---|
