U support connector FT
Type VUS 5 FT
|Item no. 6018505
|EAN 4012196446896
Item no. / Type
6018505 / VUS 5 FT
Smallest selling unit: 10 piece
10piece
piece
Description

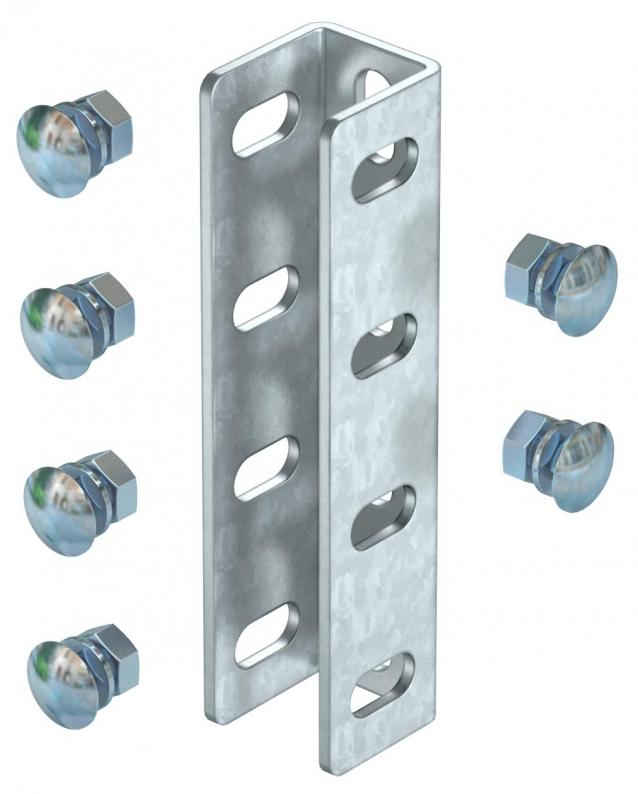

U support connector to connect US 5 supports.
Including appropriate fastening material.
Technical data

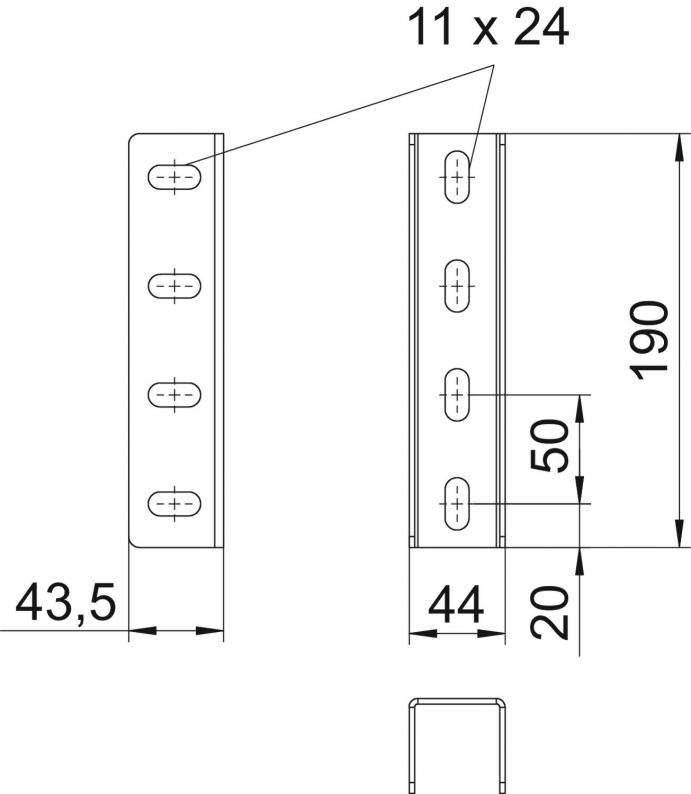

Dimensions
| Length | 190 mm |
|---|---|
| Width | 44 mm |
| Height | 46,5 mm |
Technical data
| Paslanmaz çelik, mordanlı | no |
|---|---|
| Drill hole spacing, centre | 50 mm |
| With screw accessories | yes |
| Ölçü | 46,5 x 44 x 190 |
| Suitable for profile shapes | U profile |
| Boyut | 190x44 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 1,4748 kg CO2e / 1 Piece |
|---|
