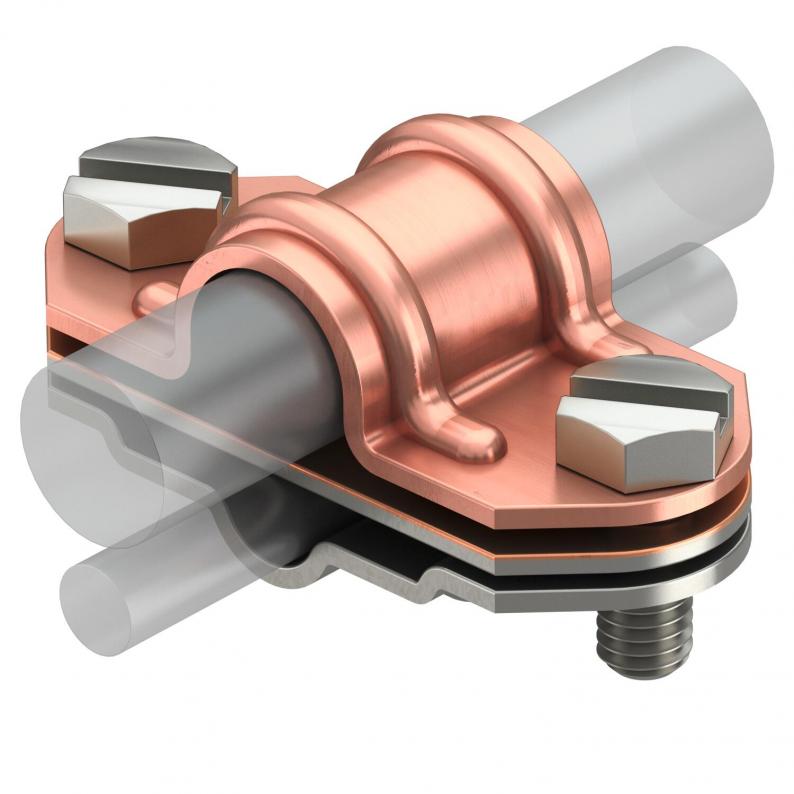

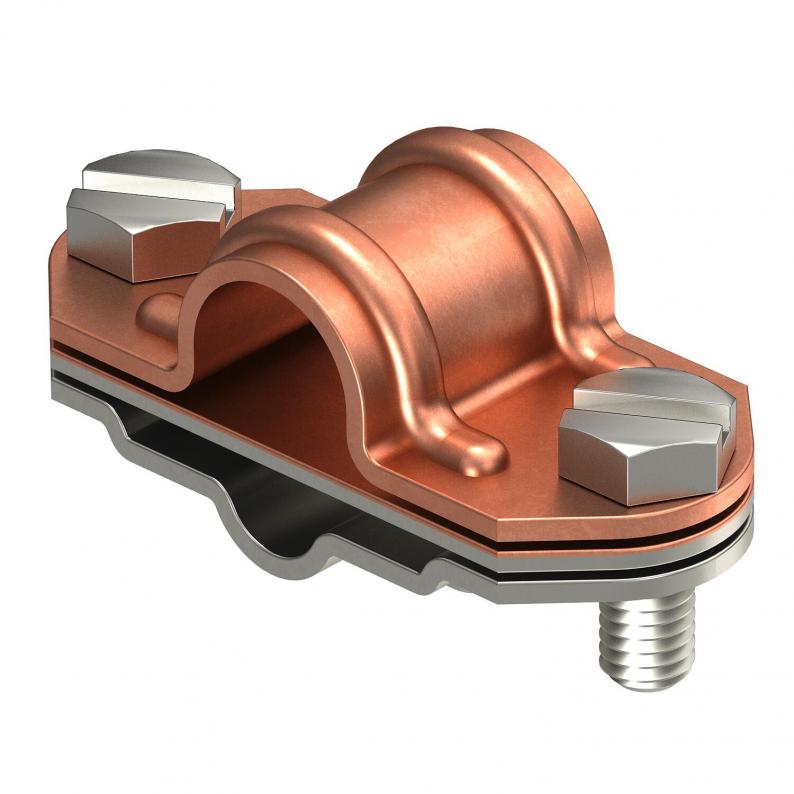

Universal bi-metal separating piece, Rd 16 copper, Rd 8-10 A2

Universal bi-metal separating piece, Rd 16 copper, Rd 8-10 A2

Type 226 ZV CU
|
Item no. 5336090
|
EAN 4012195424451
Show all variants
Item no. / Type
5336090 / 226 ZV CU
Fit
Rd 8-10/FL30 x 16 mm

Smallest selling unit: 10 piece

piece

Description

• Fit: Rd 8-10 x 16, FL 30 x Rd 16
• With 2 hexagonal bolts M8 x 20, stainless steel (VA)
• Intermediate plate, aluminium/copper
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Technical data

Intermediate plateyes
Bimetal connectoryes
Suitable for connectionRound conductor Rd 16 / flat conductor Fl 30
Material lower partVA
Material upper partCu
FitRd 8-10/FL30 x 16 mm
DimensionFL30/8-10x16
MaterialStainless steel 1.4301

Environmental Data

0,687 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,687 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Product images (3)
3D data downloads (2)
Tender specifications (1)

Variants

226 ZV CU
Item no.
5336090
Fit
Rd 8-10/FL30 x 16
