Universal clamp for PV module mounting

Universal clamp for PV module mounting

Type KLU A2
|
Item no. 5901010
|
EAN 4012197369637
Show all variants
Item no. / Type

Smallest selling unit: 20 piece

piece

Description

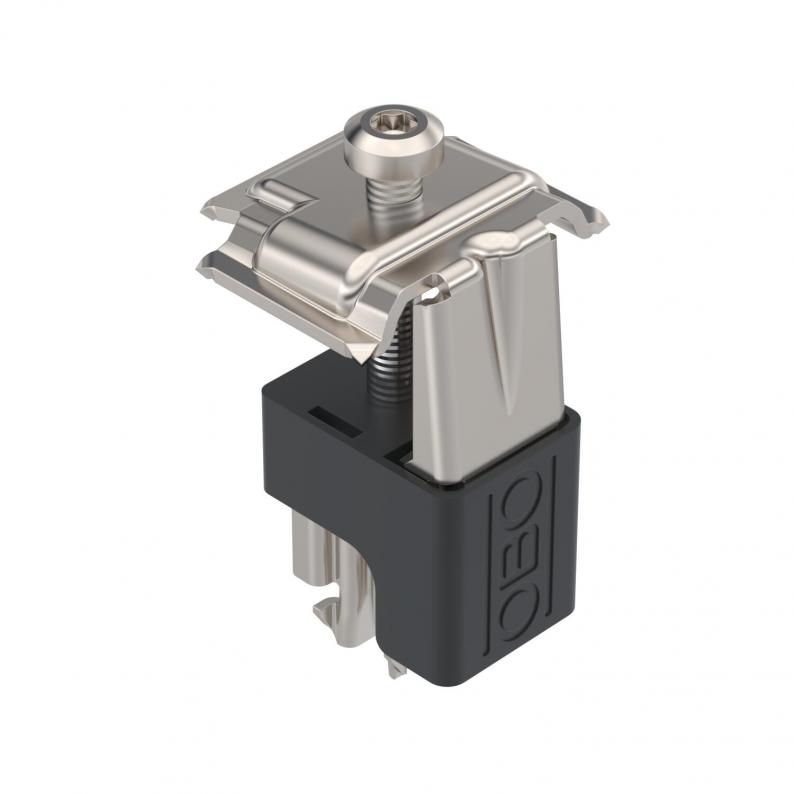

Universal clamp to mount photovoltaic modules on flat and pitched roofs, suitable as a clamp between 2 modules or as an end clamp. Lockable pre-fastening on TP 45 support profile and on STK and STL supports. Suitable for 10 mm slot width. Can be rotated through 90° after engaging. Lockable fastening of the PV module with Torx 30 wrench.
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

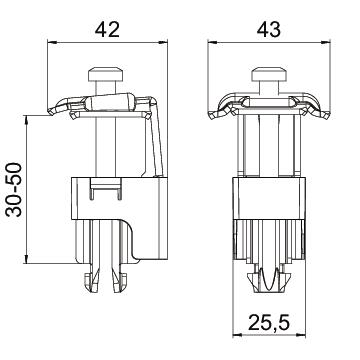

Dimensions

Width43 mm
Height79 mm

Technical data

Ayarlanabilirevet
Depth42 mm
Boyut41x42x79
SurfaceBright
MaterialStainless steel
Colourstainless steel
Photovoltaic connection and fastening element versionUniversal clamp
For frame height min.30 mm
For frame height max.50 mm
With module earthinghayır
CO2 ayak izi (GWP) beşikten kapıya0,6786 kg CO2e / 1 Adet

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Instructions and Aid (5)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

KLU A2
Item no.
5901010
KLU A2 S
Item no.
5901012
