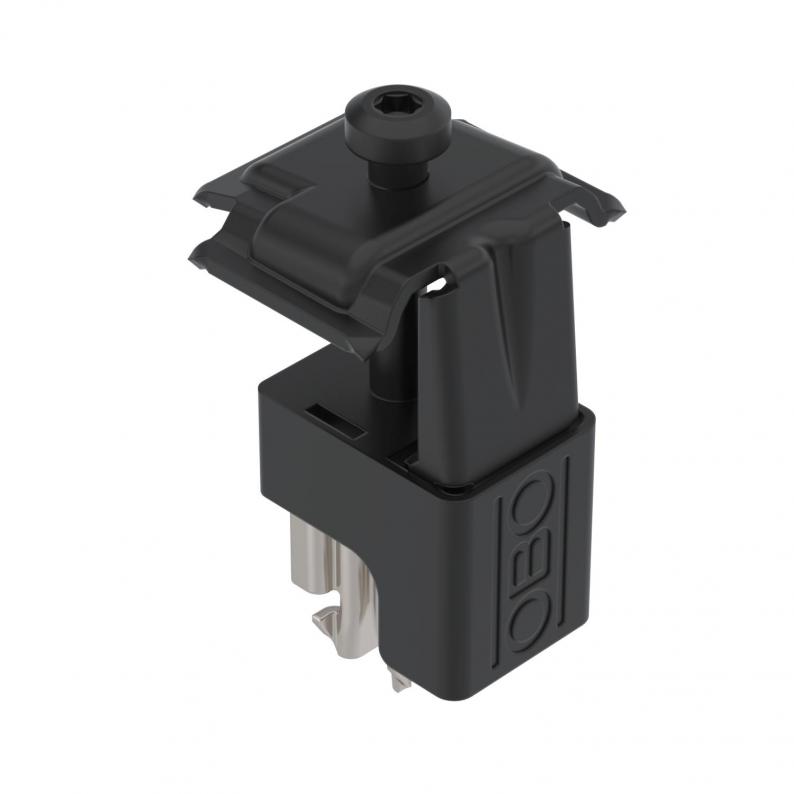

Universal clamp for PV module mounting
Type KLU A2 S
|Item no. 5901012
|EAN 4012197378301
Item no. / Type
Smallest selling unit: 20 piece
20piece
piece
Description
Universal clamp for mounting photovoltaic modules on flat and pitched roofs, suitable as a clamp between 2 modules or as an end clamp. Lockable pre-fastening on TP 45 support profile and on STK and STL supports. Suitable for 10 mm slot width. Can be rotated through 90° after engaging. Screwable fastening of the PV module with Torx 30 key.
Technical data

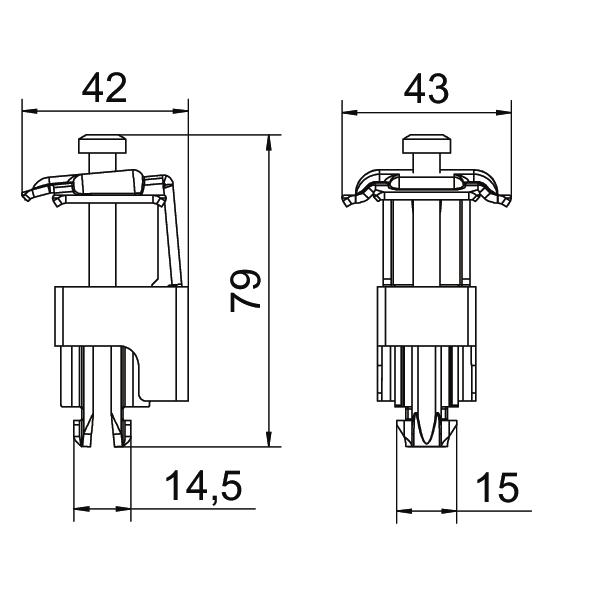

Dimensions
| Width | 43 mm |
|---|---|
| Height | 79 mm |
Technical data
| Adjustable | yes |
|---|---|
| Depth | 42 mm |
| Dimension | 41x42x79 |
| Surface | Plastic-coated |
| Material | Stainless steel 1.4301 |
| Colour | Black |
| Photovoltaic connection and fastening element version | Universal clamp |
| For frame height min. | 30 mm |
| For frame height max. | 50 mm |
| With module earthing | no |
Environmental Data
0,4568 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging without plastic | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4568 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Instructions and Aid (5)
Product images (2)
3D data downloads (1)
Tender specifications (1)
