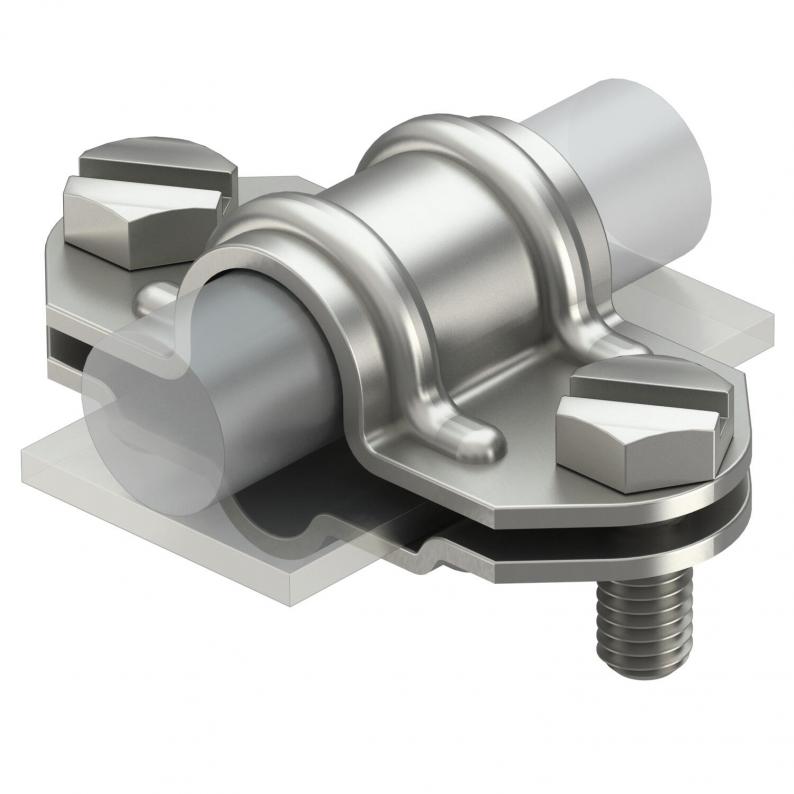

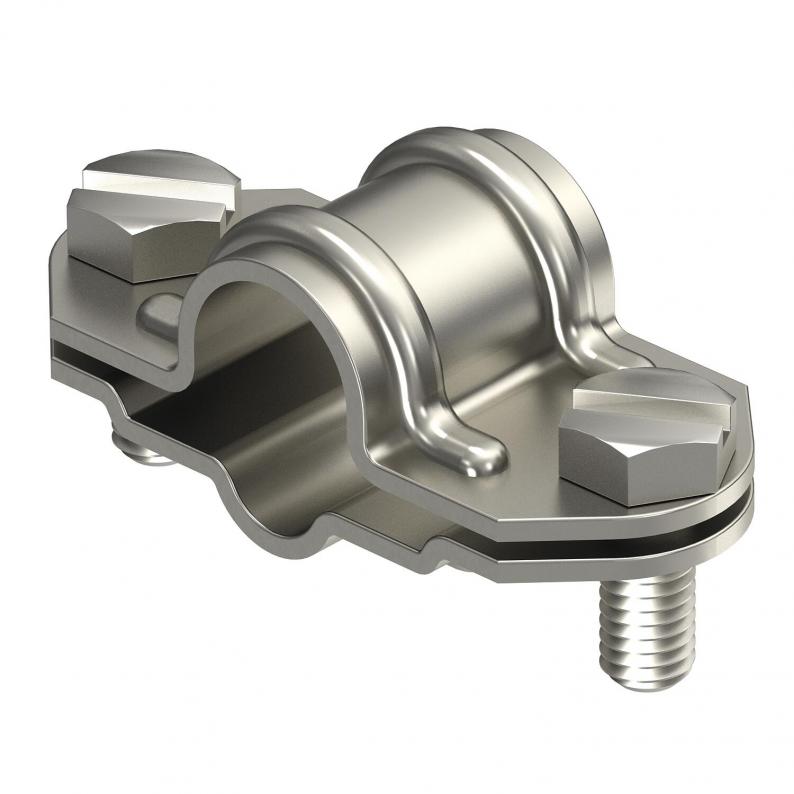

Universal separating piece A2
Type 226 VA
|Item no. 5336058
|EAN 4012195424338
Item no. / Type
5336058 / 226 VA
Uyumluluk
Rd 8-10/FL30 x 16 mm
Smallest selling unit: 10 piece
10piece
piece
Description
• For fitting round conductors Rd 8−10 to Rd 16 or flat conductors FL30
• Including 2 hexagonal bolts M8 x 20 high-grade stainless steel (V2A)
• Conforms to the requirements according to VDE 0185-305 (IEC 62305)
• Including 2 hexagonal bolts M8 x 20 high-grade stainless steel (V2A)
• Conforms to the requirements according to VDE 0185-305 (IEC 62305)
Technical data
Technical data
| Ayırma plakası | no |
|---|---|
| İki metalli bağlantı elemanı | no |
| Suitable for connection | Miscellaneous |
| Uyumluluk | Rd 8-10/FL30 x 16 mm |
| Boyut | 8-10mm |
| Material | Stainless steel 1.4301 |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,5674 kg CO2e / 1 Piece |
|---|
