US 7 support FT
Type US 7 K 20 FT
|Item no. 6339018
|EAN 4012196186556
Item no. / Type
Length
Colour
Smallest selling unit: 1 piece
1piece
piece
Description

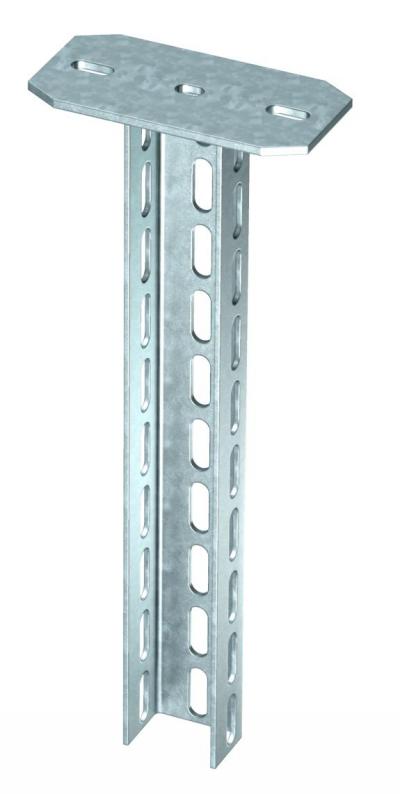

Suspended support (U profile) of dimensions 70 x 50 mm with welded head plate.
For fastening to horizontal concrete ceilings and steel girders. For bracket widths of 400 mm or more, or if the bracket is mounted at the end of a suspended support, we recommend the use of the spacer, type DSK 61.
Technical data

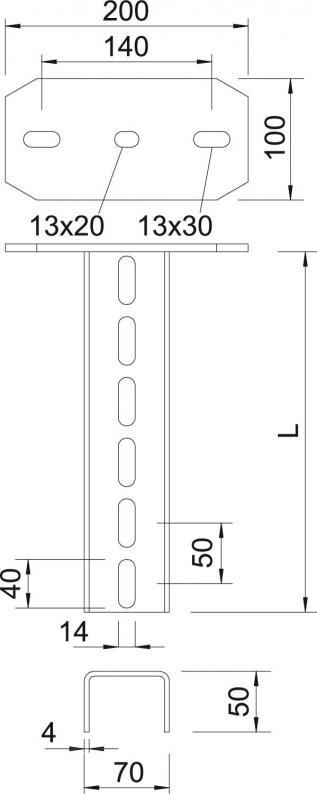

Dimensions
| Length | 200 mm |
|---|---|
| Width | 70 mm |
| Height | 50 mm |
| Dimension L | 200 mm |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Material thickness | 4 mm |
| Version for | U profile |
| Maximum tensile load | 11 kN |
| Konsol uzunluğu 200 | 8,3 kN |
| Konsol uzunluğu 400 | 5 kN |
| Konsol uzunluğu 600 | 3,5 kN |
| Boyut | 70x50x200 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Müsaade edilen konsol yükü altında askı desteği ucundaki eğilme
İnsan taşıma yükü hariç olmak üzere kn olarak müsaade edilen konsol yükü
Konsol uzunluğu, mm
mm olarak destek uzunlukları ile yük eğrisi
Environmental Data
| EPD-verified | yes |
|---|---|
| Expiry date EPD | 10.07.2029 |
| Declaration number EPD | EPD-KTO-17.0 |
| Unit base EPD | 1 running metre + mounting system |
| EPD GWP (outside of the system limits) | 18.83 kg CO₂e |
| EPD GWP (disposal phase) | 1.97 kg CO₂e |
| EPD GWP (manufacturing phase) | 81.32 kg CO₂e |
| EPD standard / LCA standard (norms) | DIN EN ISO 14025,EN 15804 + A2 |
| CO2 ayak izi (GWP) beşikten kapıya | 3,981 kg CO2e / 1 Piece |
|---|
Accessories
Mounting accessories
Article
Type
Item no.
Amount
Item no. 6406254
Truss-head bolt with nut and washer FType
FRS 12x25 F
Smallest selling unit: 50 piece
50piece
piece
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (5)
Declarations (5)
Certificates (1)
Instructions and Aid (3)
Product images (2)
3D data downloads (2)
Tender specifications (1)
Variants
Type
Length
Colour
Item no.
US 7 K 20 FT
200
Çinko grisi
6339018
US 7 K 30 FT
300
zinc
6339034
US 7 K 40 FT
400
Çinko grisi
6339050
US 7 K 50 FT
500
zinc
6339077
US 7 K 60 FT
600
Çinko grisi
6339093
US 7 K 70 FT
700
zinc
6339115
US 7 K 80 FT
800
Çinko grisi
6339131
US 7 K 90 FT
900
zinc
6339166
US 7 K 100 FT
1000
zinc
6339182
US 7 K 110 FT
1100
Çinko grisi
6339190
US 7 K 120 FT
1200
zinc
6339204
US 7 K 130 FT
1300
Çinko grisi
6339212
US 7 K 140 FT
1400
zinc
6339220
US 7 K 150 FT
1500
Çinko grisi
6339239
US 7 K 160 FT
1600
zinc
6339247
US 7 K 170 FT
1700
zinc
6339255
US 7 K 180 FT
1800
Çinko grisi
6339263
US 7 K 190 FT
1900
zinc
6339271
US 7 K 200 FT
2000
Çinko grisi
6339298
