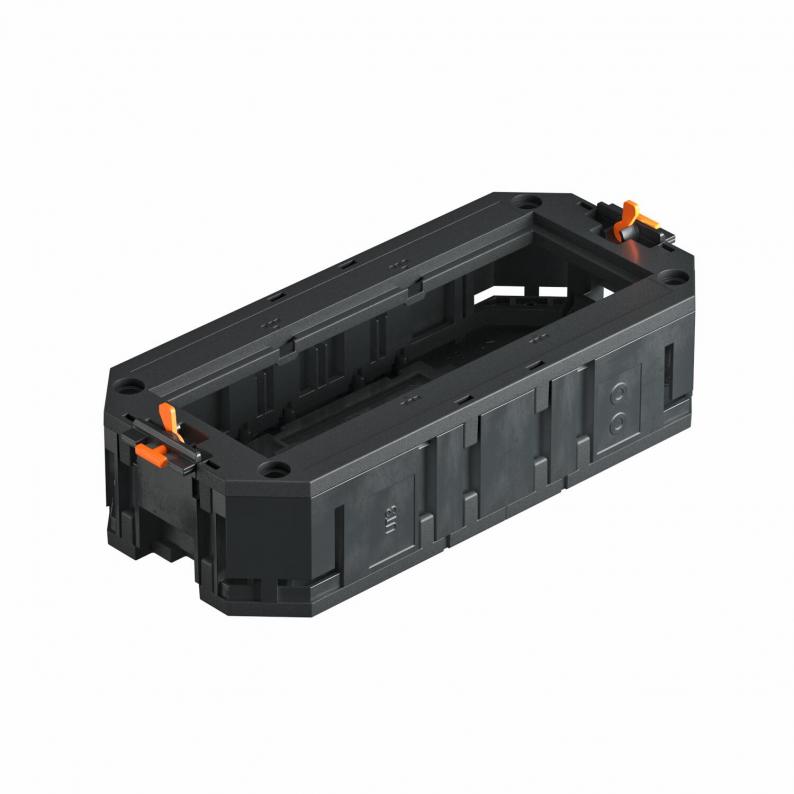

UT3 universal support, with cover plate for Modul 45® devices, system length 165 mm
Type UT3 45 3
|Item no. 7408723
|EAN 4012196435289
Item no. / Type
7408723 / UT3 45 3
Length
165 mm
Smallest selling unit: 1 piece
1piece
piece
Description
Universal support with two strain reliefs, mounting bridges, partition and cover plate UT3 P3 for the installation of 3 Modul 45 devices in device installation units of the nominal sizes 2, R4, 4 and R7.
Technical data

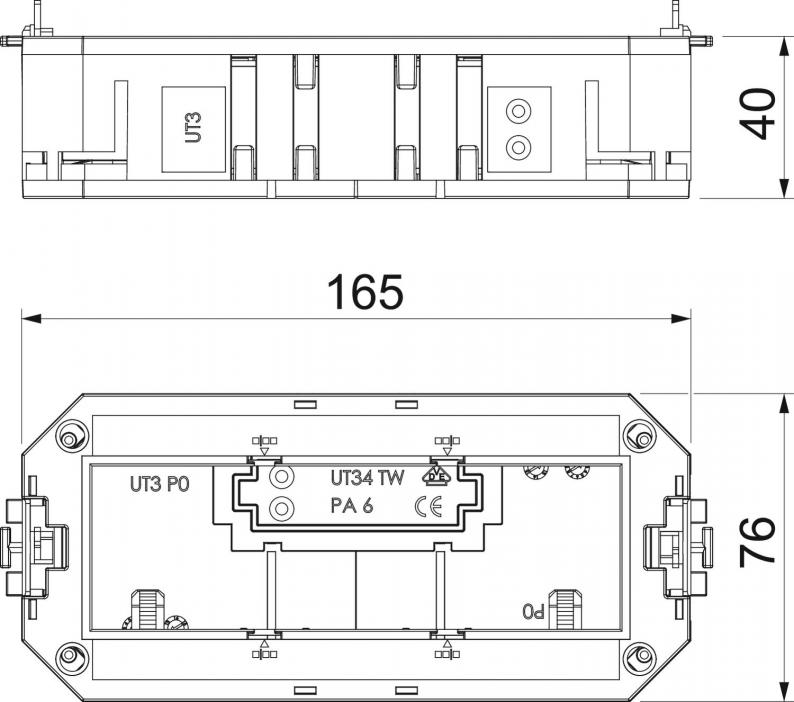

Dimensions
| Length | 165 mm |
|---|---|
| Width | 76 mm |
| Height | 40 mm |
Technical data
| Giriş sayısı | 4 |
|---|---|
| Monte edilebilir cihaz sayısı | 3 |
| Installation technology | Grid M45 |
| Number of strain reliefs | 2 |
| Version for | Socket shape |
| Boyut | 165x76x40 |
| Material | Polyamide |
| Colour | Graphite black; RAL 9011 |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,5407 kg CO2e / 1 Piece |
|---|
