UTC3 W with 2+1 protective contact sockets, white and orange

UTC3 W with 2+1 protective contact sockets, white and orange

Type UTC3 W W2OR1
|
Item no. 7404609
|
EAN 4012196687718
Show all variants
Item no. / Type
7404609 / UTC3 W W2OR1
Length
175 mm

Smallest selling unit: 1 piece

piece

Description

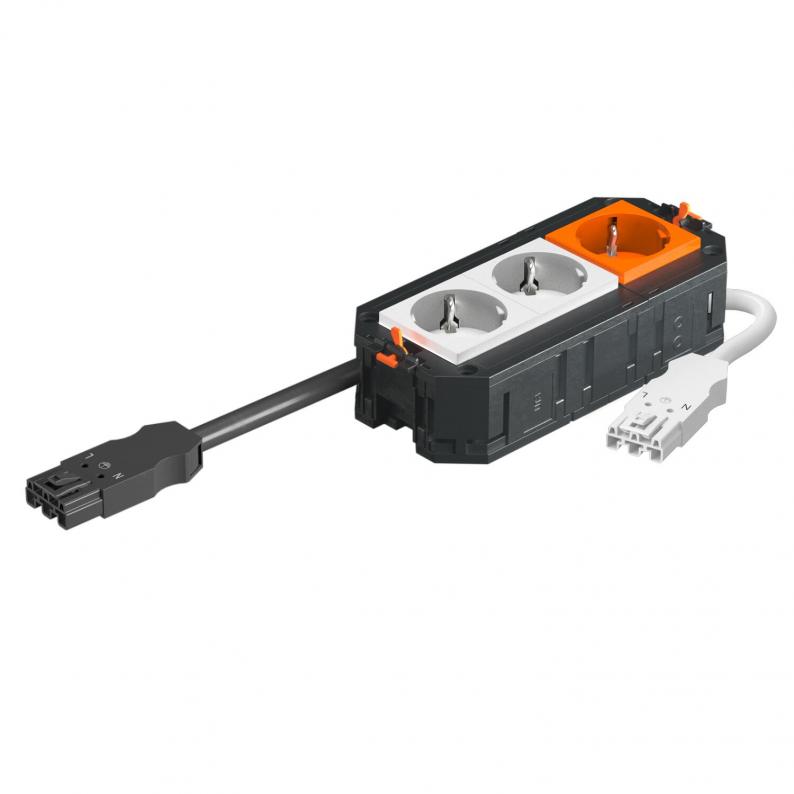

The ready-for-connection UTC3 universal support possesses 2 pre-installed 33° protective contact sockets in white of 16 A and one pre-installed 33° protective contact socket in orange of 16 A. Suitable for VL connection cables and device installation units of nominal size 2, 4, R4, 6 and R7.


PVC connection cable with connector, 3-pin, type WINSTA® MIDI.
The ready-for-connection UTC3 universal support has 2 pre-installed 33° protective contact sockets in white of 16 A and one pre-installed 33° protective contact socket in orange of 16 A.

PVC connection cable with connector, 3-pin, type WINSTA® MIDI
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length175 mm
Width76 mm
Height60 mm

Technical data

Line cross-section2,5 mm²
Cable length300 mm
Monte edilebilir cihaz sayısı3
Surge protectionno
Plug connector system, system-specificyes
Connection cable, halogen-freeno
Plug-in systemWINSTA® MIDI
Circuit2
Version forDouble pure white/single pure orange
Boyut165x76x45
MaterialPolyamide

Environmental Data

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 ayak izi (GWP) beşikten kapıya1,0708 kg CO2e / 1 Piece
