UTC3 with 2 protective contact sockets

UTC3 with 2 protective contact sockets

Type UTC3 G W2
|
Item no. 7404662
|
EAN 4012196557523
Show all variants
Item no. / Type
7404662 / UTC3 G W2
Length
175 mm

Smallest selling unit: 1 piece

piece

Description

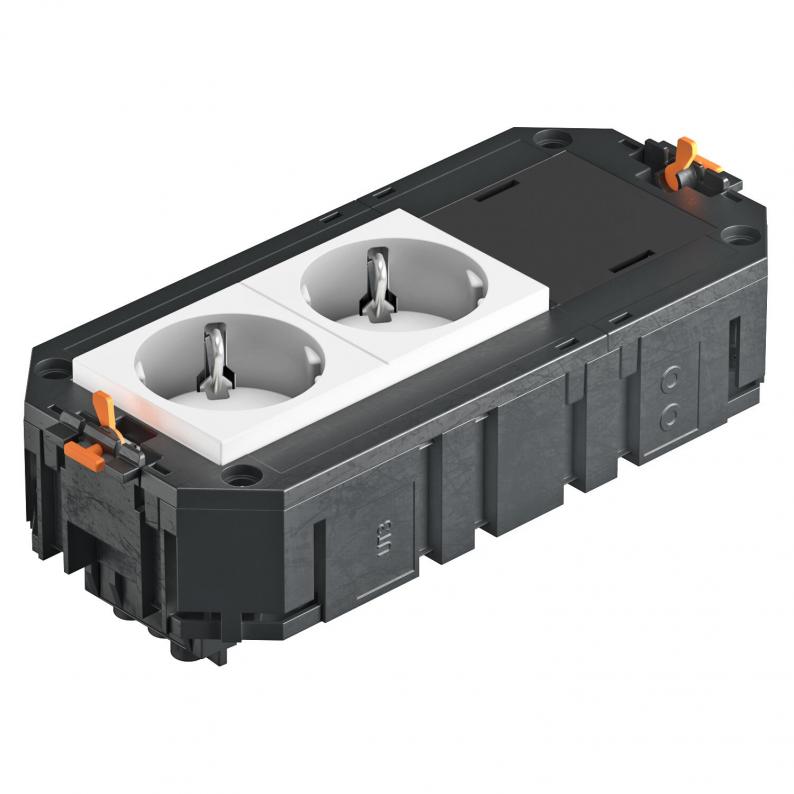

The ready-for-connection UTC3 universal support possesses two pre-installed 33° protective contact sockets and one blanking cover for retroinstallation of one installation device of the Modul 45 or Modul 45connect series. Suitable for VL connection cables and device installation units of nominal size 2, 4, R4, 6 and R7.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

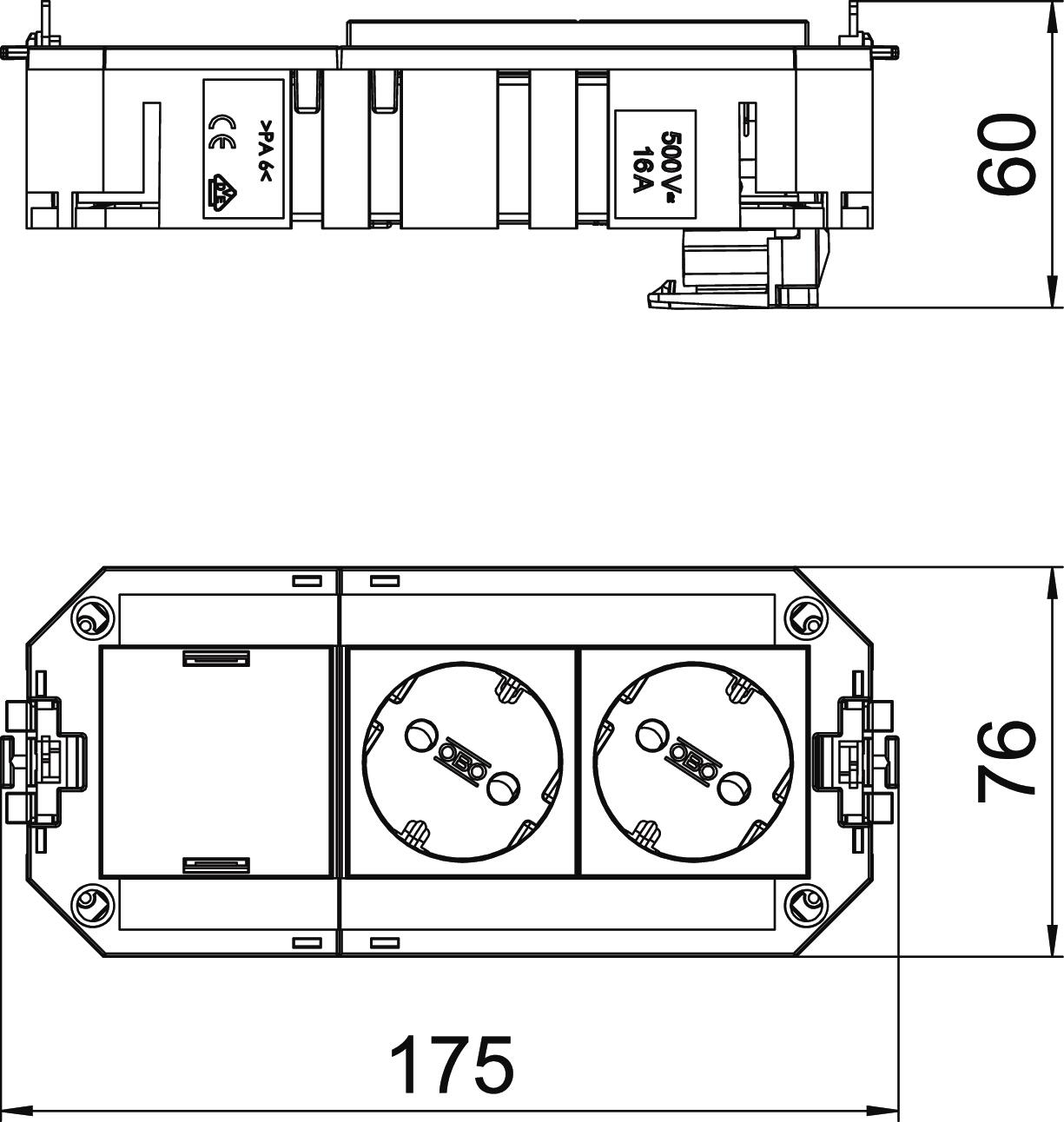

Dimensions

Length175 mm
Width76 mm
Height60 mm

Technical data

Number of connections1
Line cross-section2,5 mm²
Cable length0 mm
Number of installable devices3
Surge protectionno
Length of the supply cable0 m
Plug connector system, system-specificyes
Socket combinationDouble
Connection cable, halogen-freeno
Plug-in systemGST18
Circuit1
Version forDouble pure white
Dimension165x76x45

Environmental Data

0,7431 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,7431 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

UTC3 G W2
Item no.
7404662
Length
175
