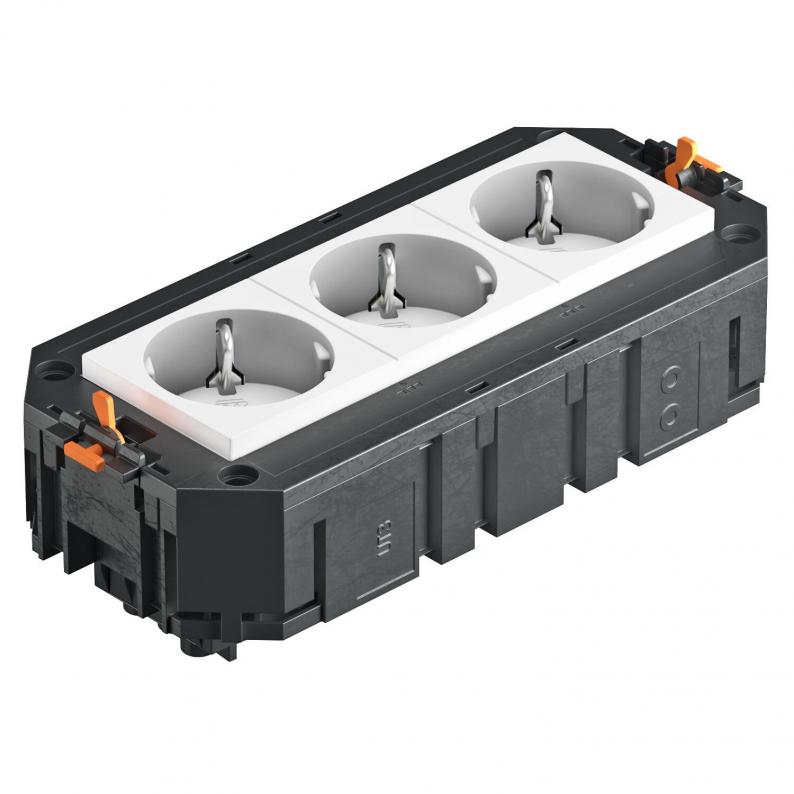

UTC3 with 3 protective contact sockets

UTC3 with 3 protective contact sockets

Type UTC3 G W3
|
Item no. 7404664
|
EAN 4012196557554
Show all variants
Item no. / Type
7404664 / UTC3 G W3
Length
175 mm

Smallest selling unit: 1 piece

piece

Description

The ready-for-connection UTC3 universal support possesses three pre-installed 33° protective contact sockets of 16 A. Suitable for VL connection cables and device installation units of nominal size 2, 4, R4, 6 and R7.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

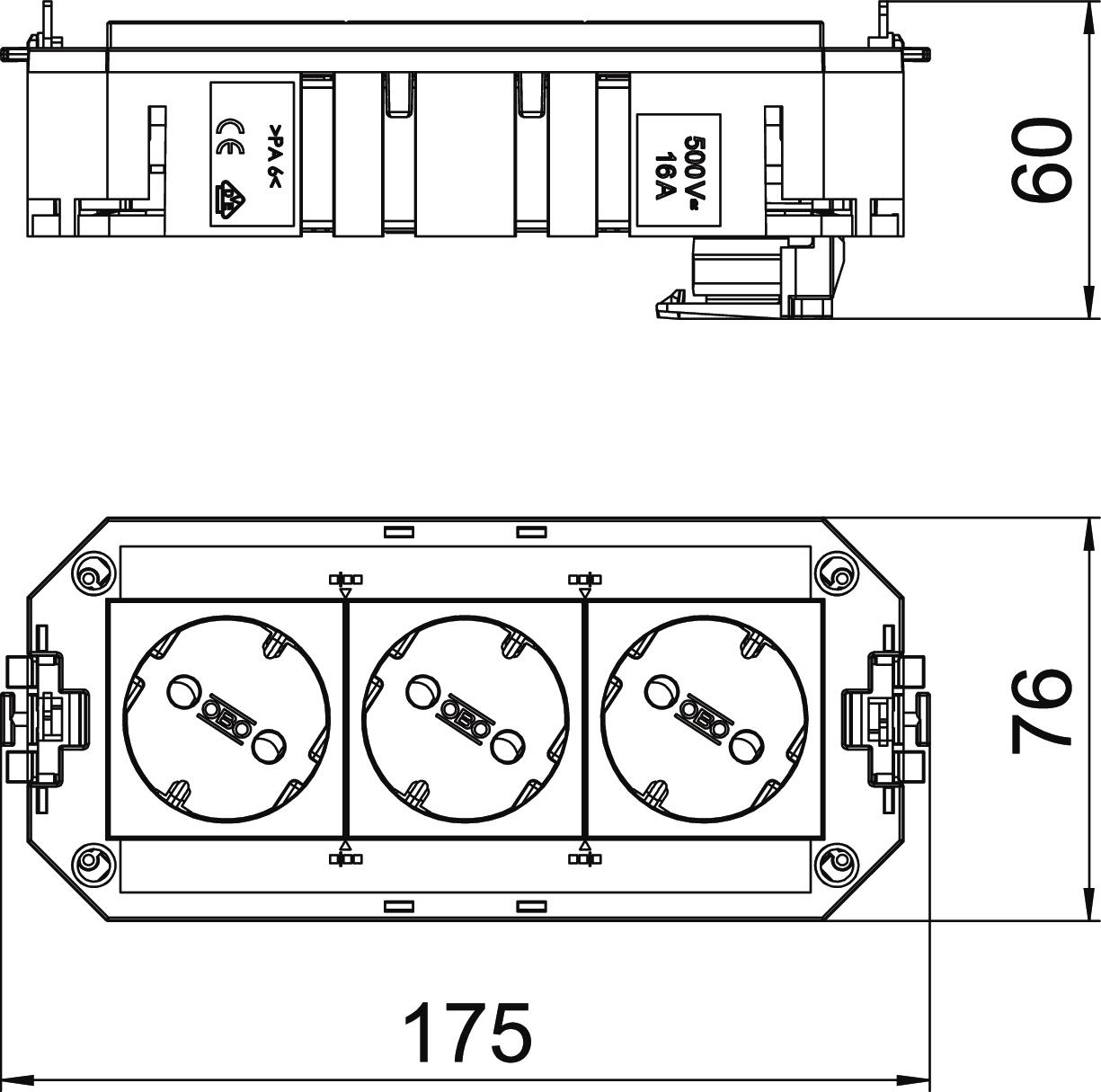

Dimensions

Length175 mm
Width76 mm
Height60 mm

Technical data

Number of connections1
Line cross-section2,5 mm²
Cable length0 mm
Number of installable devices3
Surge protectionno
Length of the supply cable0 m
Plug connector system, system-specificyes
Socket combinationTriple
Plug-in systemGST18
Circuit1
Version forTriple pure white
Dimension165x76x45

Environmental Data

0,7989 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,7989 kg CO2e / 1 Piece
