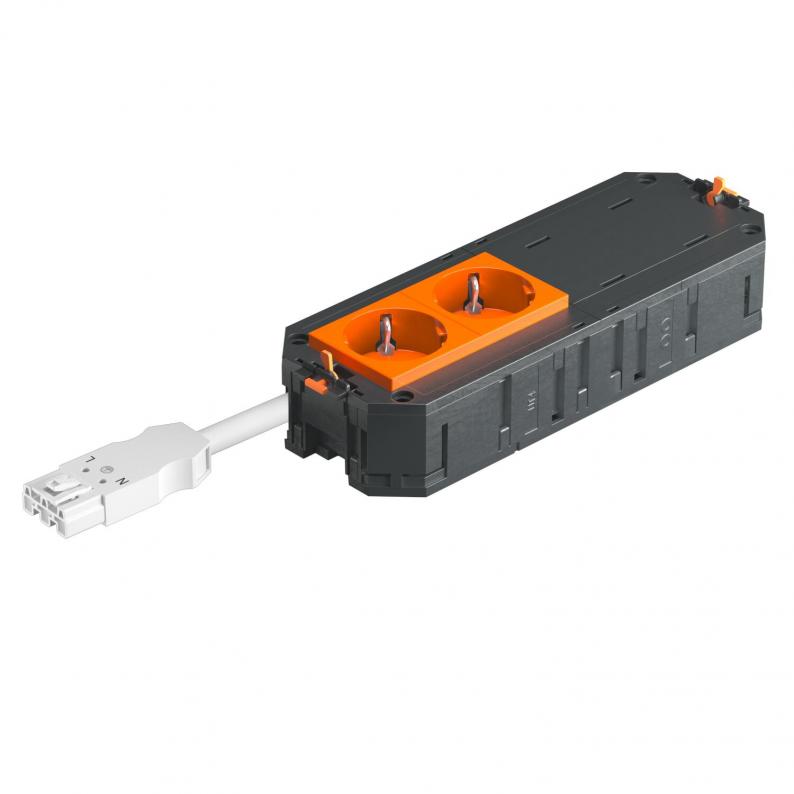

UTC4 W with 2 protective contact sockets, orange

UTC4 W with 2 protective contact sockets, orange

Type UTC4 W OR2
|
Item no. 7404613
|
EAN 4012196687749
Show all variants
Item no. / Type
7404613 / UTC4 W OR2
Length
218 mm

Smallest selling unit: 1 piece

piece

Description

The ready-for-connection UTC4 universal support has 2 pre-installed 33° protective contact sockets of 16 A and 2 blanking covers for retroinstallation of 2 installation devices of the Modul 45 series. Suitable for VL connection cables and device installation units of nominal size R7, R9 and 9.

PVC connection cable with connector, 3-pin, type WINSTA® MIDI.
The ready-for-connection UTC4 universal support has 2 pre-installed 33° protective contact sockets of 16 A and 2 blanking covers for retroinstallation of 2 installation devices of the Modul 45 series.


PVC connection cable with connector, 3-pin, type WINSTA® MIDI
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length218 mm
Width76 mm
Height60 mm

Technical data

Line cross-section2,5 mm²
Cable length300 mm
Monte edilebilir cihaz sayısı4
Surge protectionno
Plug connector system, system-specificyes
Connection cable, halogen-freeno
Plug-in systemWINSTA® MIDI
Circuit1
Version forDouble pure orange
Boyut208x76x45
MaterialPolyamide

Environmental Data

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 ayak izi (GWP) beşikten kapıya1,0084 kg CO2e / 1 Piece
