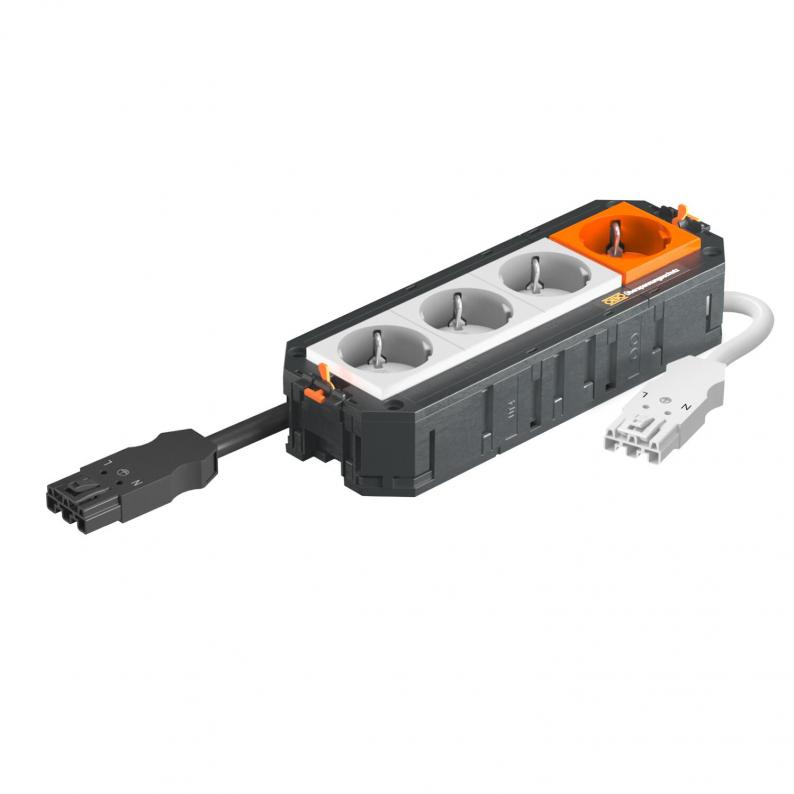

UTC4 W with 3+1 protective contact sockets, 1 socket with surge protection

UTC4 W with 3+1 protective contact sockets, 1 socket with surge protection

Type UTC4 W W3OR1 Ü
|
Item no. 7404622
|
EAN 4012196687824
Show all variants
Item no. / Type
7404622 / UTC4 W W3OR1 Ü
Length
218 mm

Smallest selling unit: 1 piece

piece

Description

The ready-for-connection UTC4 universal support possesses 3 pre-installed 33° protective contact sockets in white and 1 pre-installed 33° protective contact socket in orange (with surge protection module, type 3, according to DIN EN 61643-11), 250 V~, 16 A. Suitable for VL connection cables and device installation units of nominal size R7, R9 and 9.


PVC connection cable with connector, 3-pin, type WINSTA® MIDI.
The ready-for-connection UTC4 universal support has 3 pre-installed 33° protective contact sockets in white and one pre-installed 33° protective contact socket in orange (with surge protection module type 3, according to DIN EN 61643-11), 250 V~ 16 A.

PVC connection cable with connector, 3-pin, type WINSTA® MIDI
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length218 mm
Width76 mm
Height60 mm

Technical data

Line cross-section2,5 mm²
Cable length300 mm
Monte edilebilir cihaz sayısı4
Surge protectionyes
Plug connector system, system-specificyes
Connection cable, halogen-freeno
Plug-in systemWINSTA® MIDI
Circuit1
Version forTriple pure white/single pure orange
Boyut208x76x45
MaterialPolyamide

Environmental Data

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 ayak izi (GWP) beşikten kapıya1,2296 kg CO2e / 1 Piece
