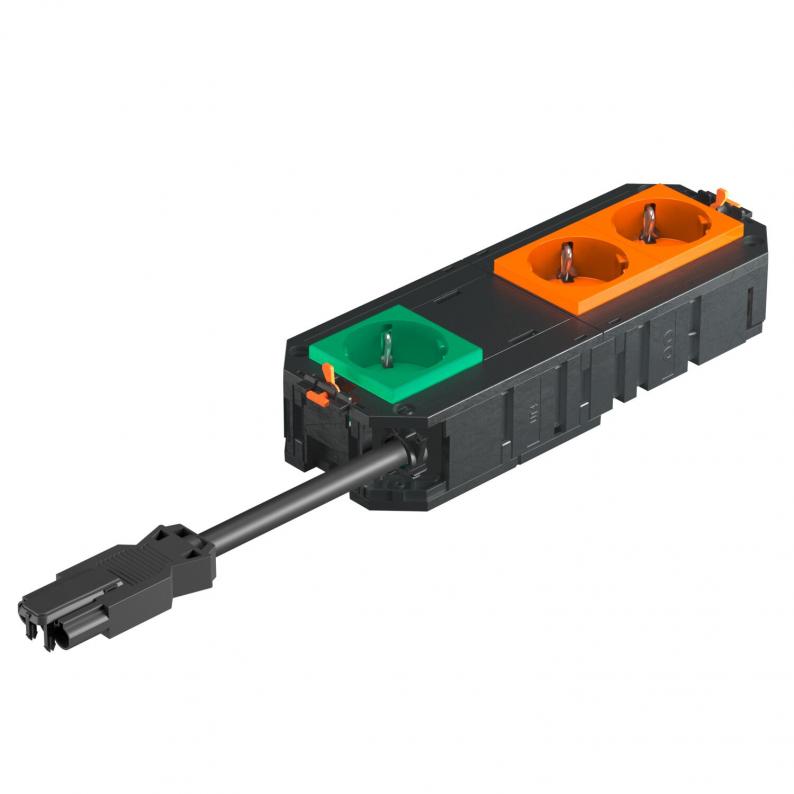

UTC4 with 2+1 protective contact sockets

UTC4 with 2+1 protective contact sockets

Type UTC4 G OR2GN1
|
Item no. 7404688
|
EAN 4012196557691
Show all variants
Item no. / Type
7404688 / UTC4 G OR2GN1
Length
218 mm

Smallest selling unit: 1 piece

piece

Description

Ready-for-connection universal support UTC4 with halogen-free connection cable. It possesses two pre-installed 33° protective contact sockets in orange and one 33° protective contact socket in mint green with 16 A. A blanking cover allows retroinstallation of one installation device of the Modul 45 or Modul 45connect series. Suitable for VL connection cables and device installation units of nominal size R7, R9 and 9.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

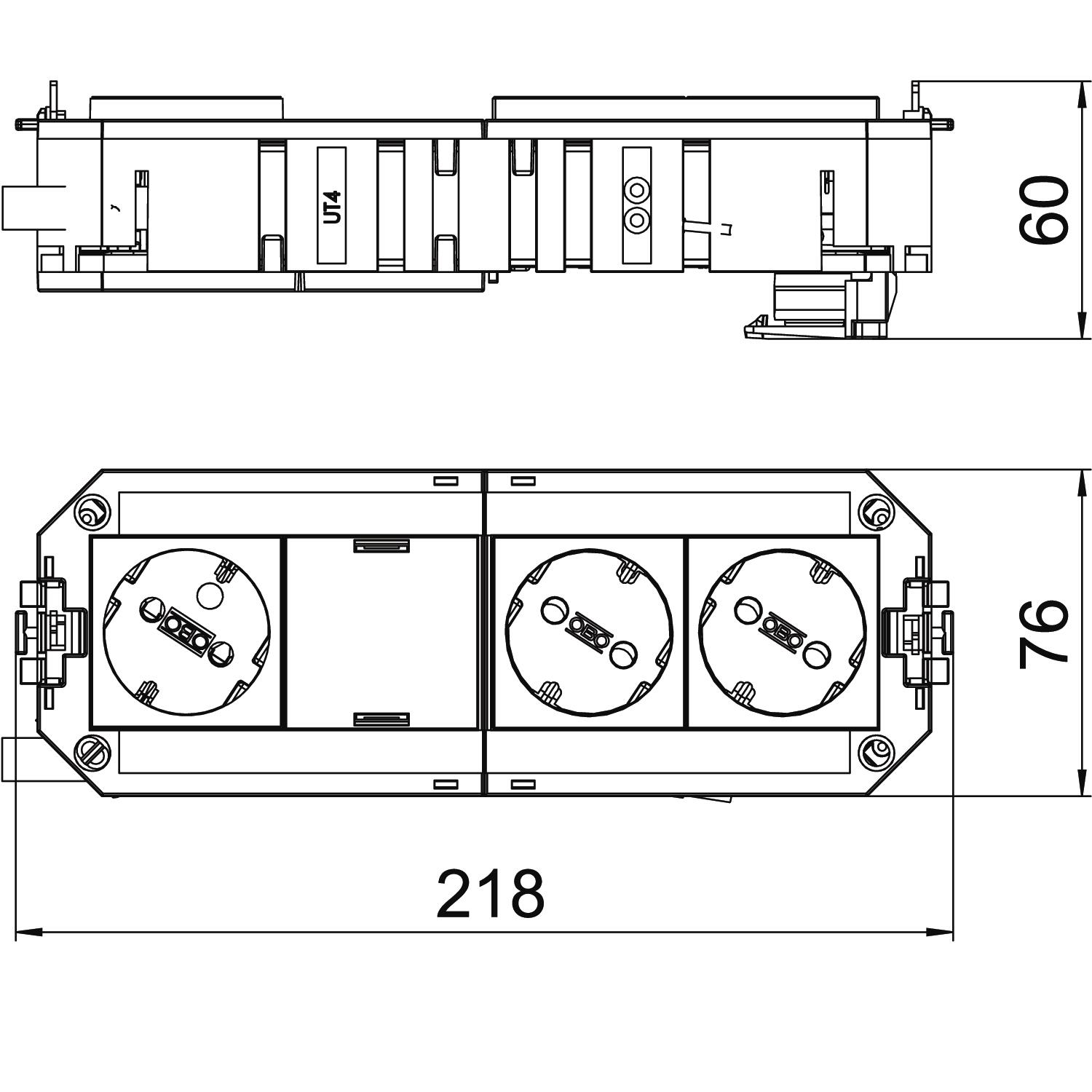

Dimensions

Length218 mm
Width76 mm
Height60 mm

Technical data

Number of connections2
Line cross-section2,5 mm²
Cable length300 mm
Number of installable devices4
Surge protectionno
Length of the supply cable0,3 m
Plug connector system, system-specificyes
Socket combinationSingle and double
Plug-in systemGST18
Circuit2
Version forDouble pure orange/single mint green
Dimension208x76x45

Environmental Data

1,1134 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate1,1134 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

UTC4 G OR2GN1
Item no.
7404688
Length
218
