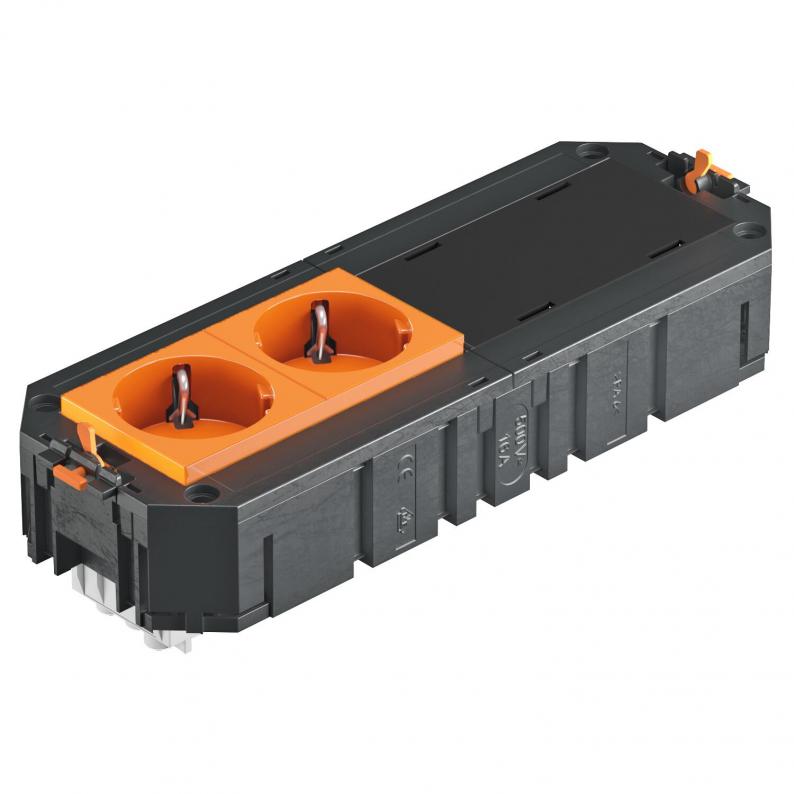

UTC4 with 2 protective contact sockets, orange

UTC4 with 2 protective contact sockets, orange

Type UTC4 G OR2
|
Item no. 7404670
|
EAN 4012196557561
Show all variants
Item no. / Type
Length

Smallest selling unit: 1 piece

piece

Description

The ready-for-connection UTC4 universal support possesses two pre-installed 33° protective contact sockets of 16 A and two blanking covers for retroinstallation of two installation devices of the Modul 45 or Modul 45connect series. Suitable for VL connection cables and device installation units of nominal size R7, R9 and 9.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

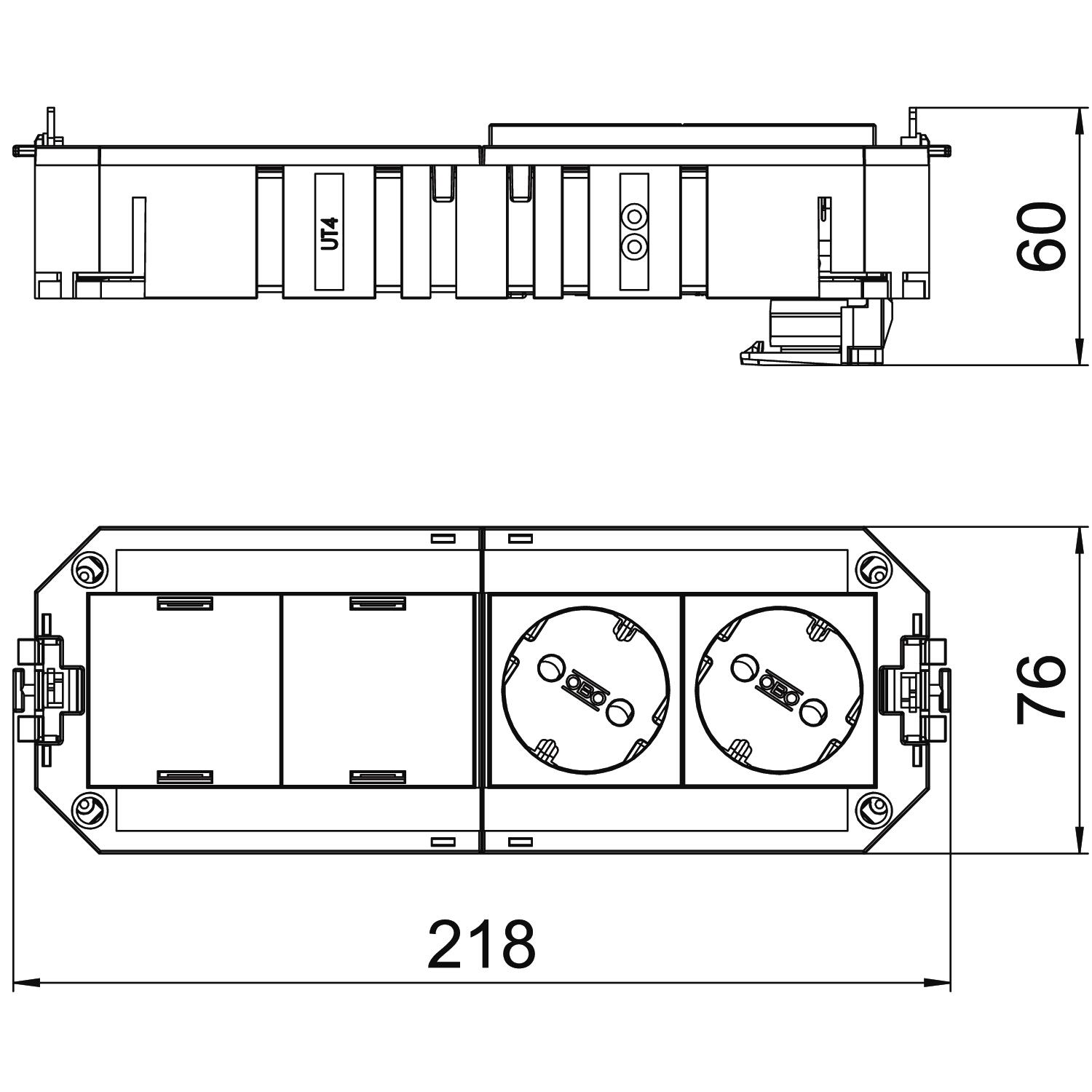

Dimensions

Length218 mm
Width76 mm
Height60 mm

Technical data

Number of connections1
Line cross-section2,5 mm²
Cable length0 mm
Number of installable devices4
Surge protectionno
Length of the supply cable0 m
Plug connector system, system-specificyes
Socket combinationDouble
Plug-in systemGST18
Circuit1
Version forDouble pure orange
Dimension208x76x45

Environmental Data

0,8465 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,8465 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

UTC4 G OR2
Item no.
7404670
Length
218
UTC4 G W2
Item no.
7404674
Length
218
