UTC4 with 3+1 protective contact sockets

UTC4 with 3+1 protective contact sockets

Type UTC4 G W3OR1
|
Item no. 7404684
|
EAN 4012196557677
Show all variants
Item no. / Type
7404684 / UTC4 G W3OR1
Length
218 mm

Smallest selling unit: 1 piece

piece

Description

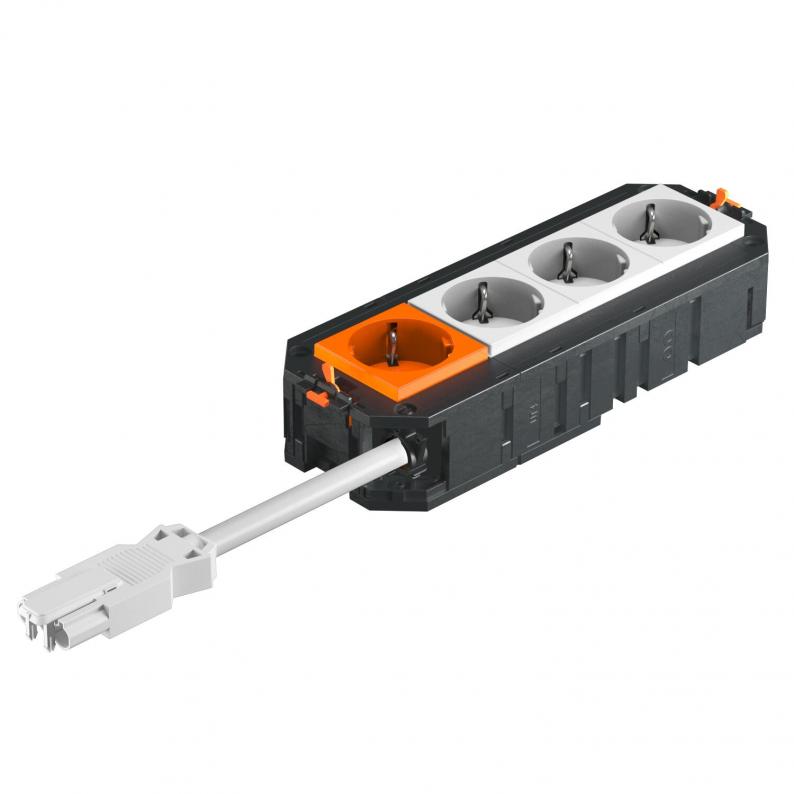

Ready-for-connection universal support UTC4 with halogen-free connection cable. It possesses three pre-installed 33° protective contact sockets in pure white and one pre-installed 33° protective contact socket in pure orange of 16 A. Suitable for VL connection cables and device installation units of nominal size R7, R9 and 9.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

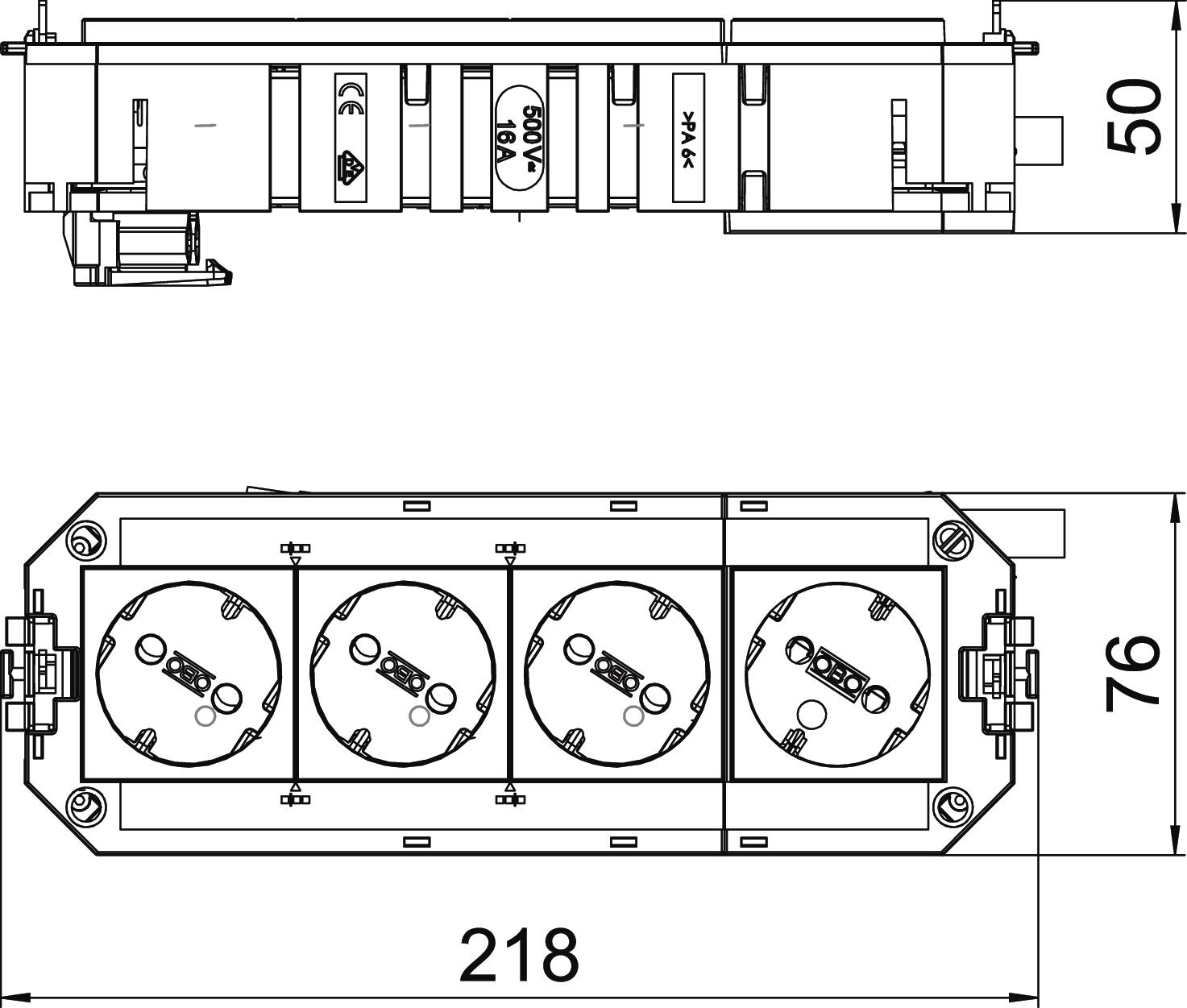

Dimensions

Length218 mm
Width76 mm
Height60 mm

Technical data

Number of connections2
Line cross-section2,5 mm²
Cable length300 mm
Number of installable devices4
Surge protectionyes
Length of the supply cable0,3 m
Plug connector system, system-specificyes
Socket combinationSingle and triple
Plug-in systemGST18
Circuit2
Version forTriple pure white/single pure orange
Dimension208x76x45

Environmental Data

1,087 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate1,087 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

UTC4 G W3OR1
Item no.
7404684
Length
218
