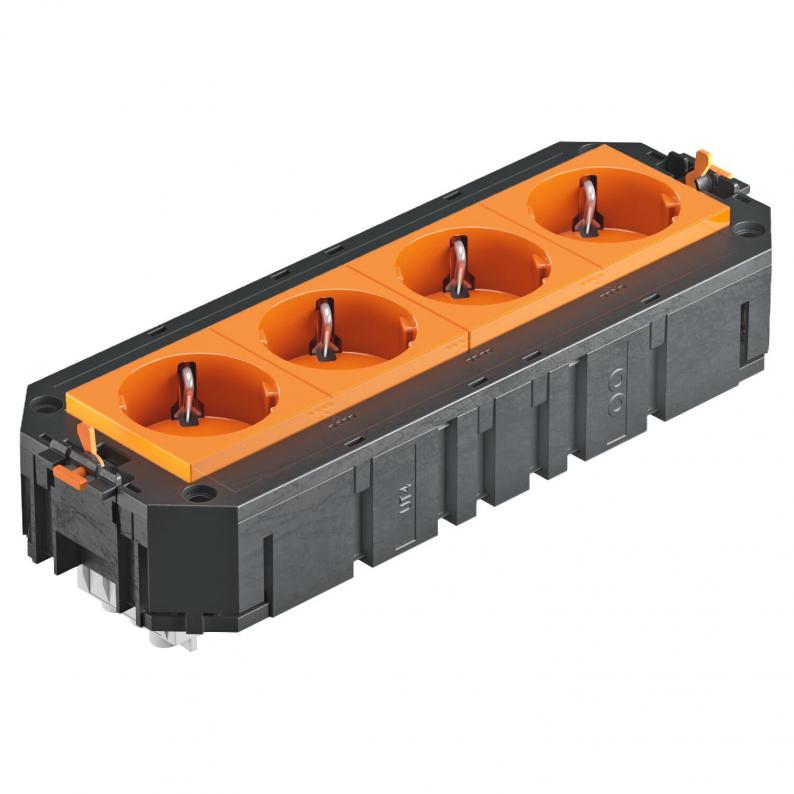

UTC4 with 4 protective contact sockets, orange

UTC4 with 4 protective contact sockets, orange

Type UTC4 G OR4
|
Item no. 7404672
|
EAN 4012196557578
Show all variants
Item no. / Type
Length

Smallest selling unit: 1 piece

piece

Description

The ready-for-connection UTC4 universal support possesses four pre-installed 33° protective contact sockets of 16 A. Suitable for VL connection cables and device installation units of nominal size R7, R9 and 9.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

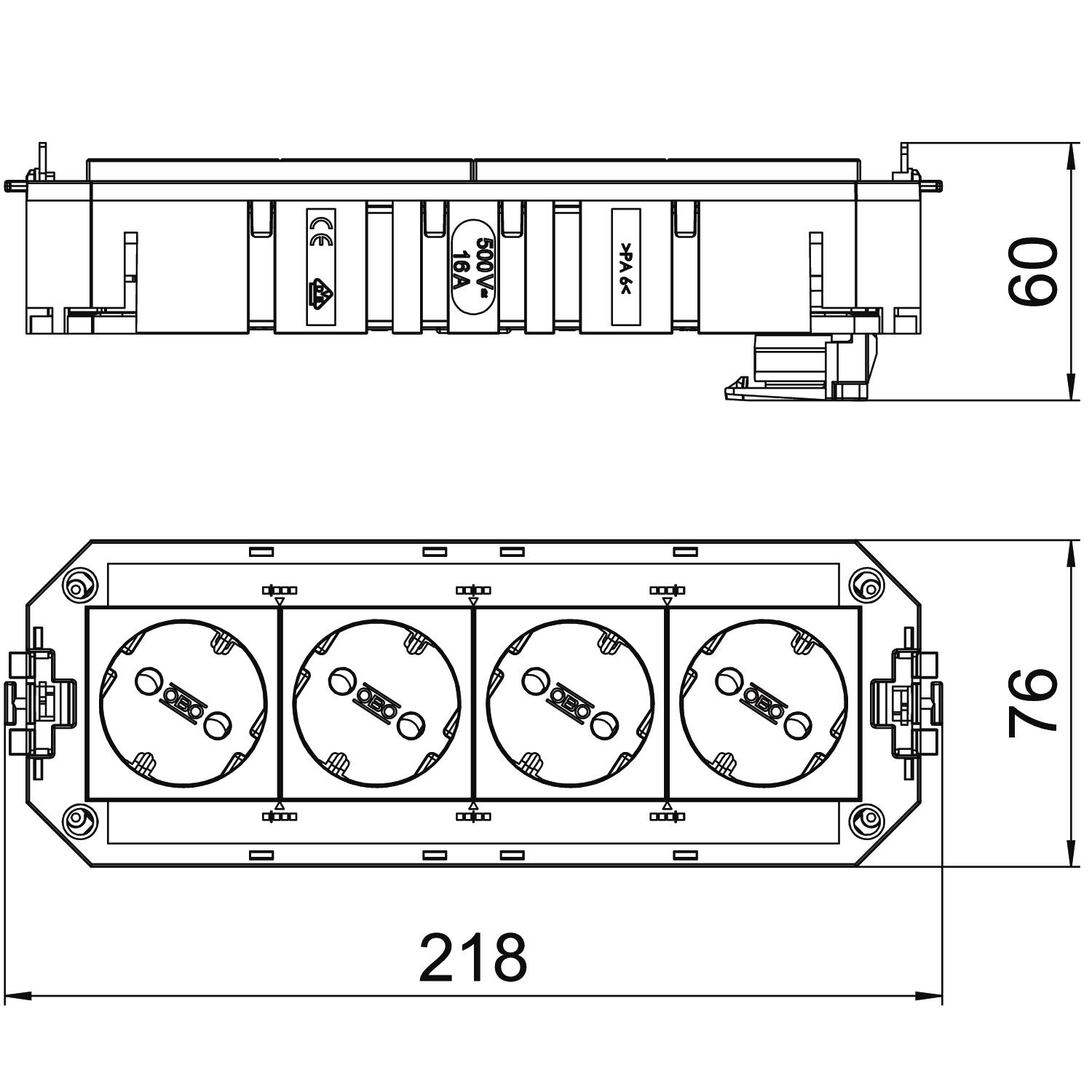

Dimensions

Length218 mm
Width76 mm
Height60 mm

Technical data

Number of connections1
Line cross-section2,5 mm²
Cable length0 mm
Number of installable devices4
Surge protectionno
Length of the supply cable0 m
Plug connector system, system-specificyes
Socket combination2x double
Plug-in systemGST18
Circuit1
Version for4x pure orange
Dimension208x76x45

Environmental Data

1,1145 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate1,1145 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

UTC4 G OR4
Item no.
7404672
Length
218
UTC4 G W4
Item no.
7404682
Length
218
